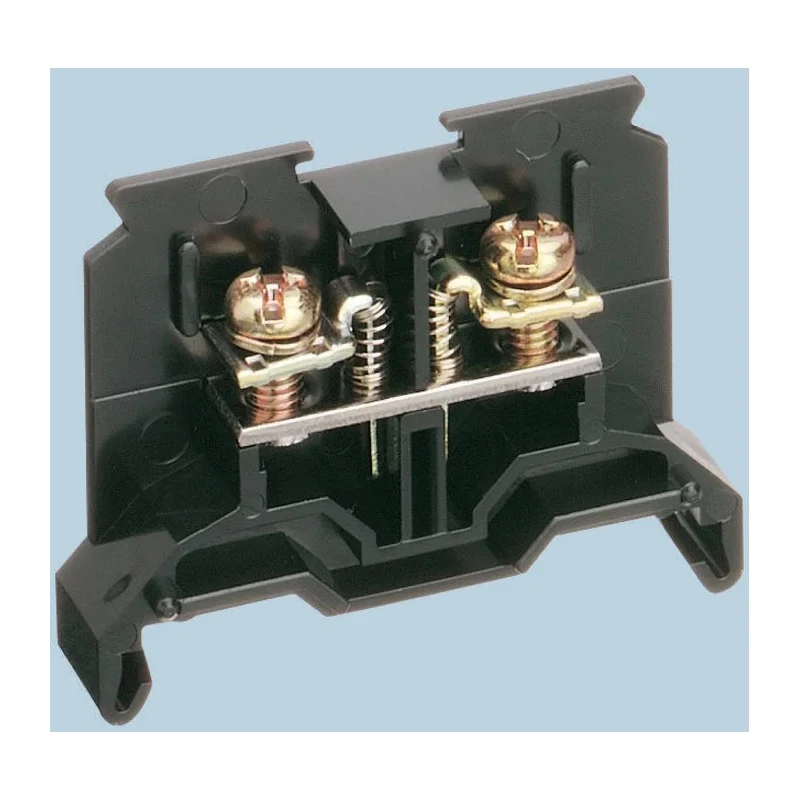

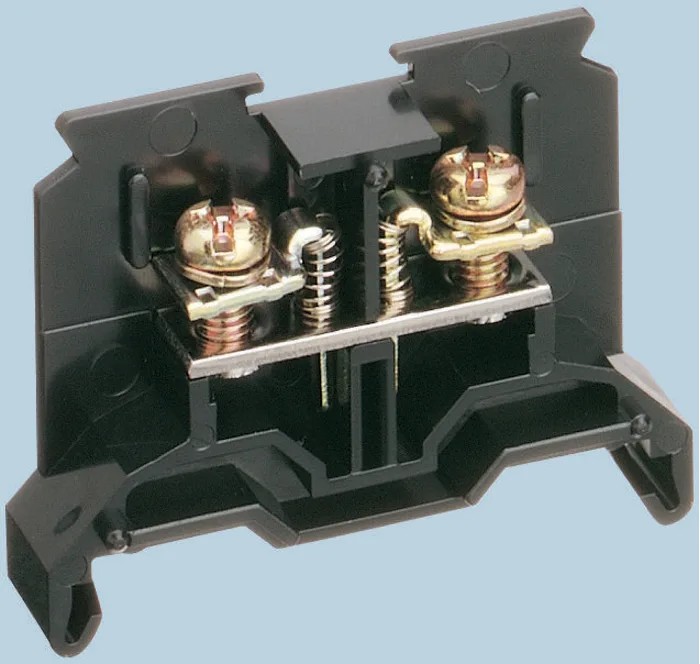

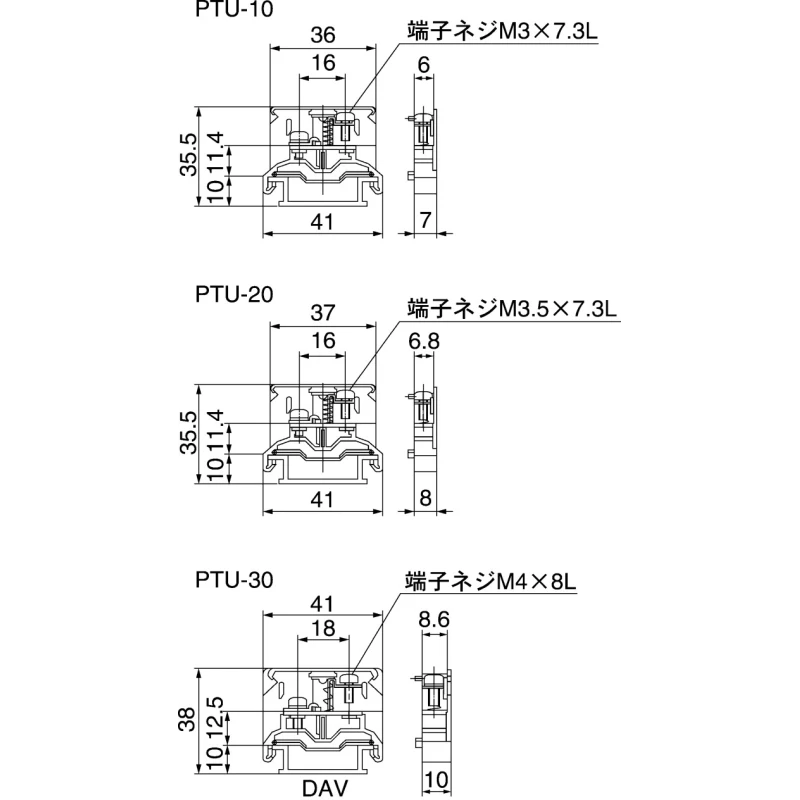

Toyogiken PTU Series DIN Rail Terminal Block 1.25mm² Screw Termination 600V AC 15A PTU-10
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 600, 600V ac |
| Brand | Toyogiken |
| Model | PTU-10 |
| Series | PTU |
| Termination Type | Screw |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Minimum Wire Size AWG | 16AWG |
| Cable CSA | 1.25mm² |
| Terminal Block Current | 15A |
Key Features
- The PTU Series features screw termination with self-retention to prevent short circuits.
- Supports wire sizes down to 16 AWG (1.25mm²) for precise connections.
- Operates safely between -25°C and 60°C for versatile environmental applications.
- Denatured PPO insulation enhances durability and electrical safety.
- Mounting is easy with a top push-on for a standard 35 mm DIN rail conforming to DAV4-1000.
- Compatible accessories include mounting brackets (HDV-1) and name plates (AM-10).
- Manufactured in Japan ensuring high quality and standards compliance.
Product Description
Toyogiken PTU-10 DIN Rail Terminal Block is a robust electrical component designed for secure and efficient wiring connections in industrial and commercial electrical panels. This terminal block belongs to the PTU series, featuring a 1.25mm² cable cross-section capacity and a screw-type termination for reliable electrical contact.
Rated for 600 volts AC and a current of 15 amperes, the PTU-10 terminal block supports wiring sizes down to 16 AWG, suitable for a range of control and power distribution applications. Its denatured PPO insulation material provides enhanced resistance to heat and electrical stress, contributing to long-term stability and safety in operation.
The device operates safely across a broad temperature range from -25°C to 60°C, making it suitable for various industrial environments. The self-retention feature of the screw terminals prevents accidental loosening and potential short circuits. Mounting the unit is straightforward with a push-on method compatible with the DAV4-1000 DIN rail standardized at 35 mm width, easing installation and maintenance.
Additional accessories such as mounting brackets (HDV-1) and name plates (AM-10) are compatible with this series, facilitating customization and identification in complex wiring setups.
Screw termination with self-retention prevents short circuits. Supports 1.25mm² cable size and 16 AWG wire. Rated for 600V AC and 15A current. Operating temperature range from -25°C to 60°C. Denatured PPO insulating material for durability.
Push-on mounting for 35 mm DIN rail (DAV4-1000 standard). Compatible with mounting brackets HDV-1 and name plates AM-10. Manufactured in Japan ensuring quality and reliability.
This terminal block is ideal for electrical, industrial, manufacturing, and HVAC applications where secure wiring connections are critical. The PTU-10 integrates quality assurance and ease of installation, contributing to efficient and safe electrical system assembly.
Explore more products in the DIN Rail Terminal Blocks category at EnvMart for comprehensive power connector solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PTU-10 terminal block is rated for a maximum voltage of 600V AC.
This terminal block can handle a current of up to 15A.
It supports wire sizes down to 16 AWG, with a cable cross-section capacity of 1.25mm².
The PTU-10 operates safely between -25°C and 60°C.
Mounting is easy with a push-on method compatible with a standard 35 mm DIN rail conforming to DAV4-1000.
It features screw termination with a self-retention design to prevent short circuits.
The insulation is made from denatured PPO, which enhances durability and electrical safety.
Yes, compatible accessories include mounting brackets (HDV-1) and name plates (AM-10).
The PTU-10 is manufactured in Japan.
This terminal block is part of the PTU series.
It is ideal for electrical, industrial, manufacturing, and HVAC applications where secure wiring connections are critical.
The minimum wire size supported is 16 AWG.
