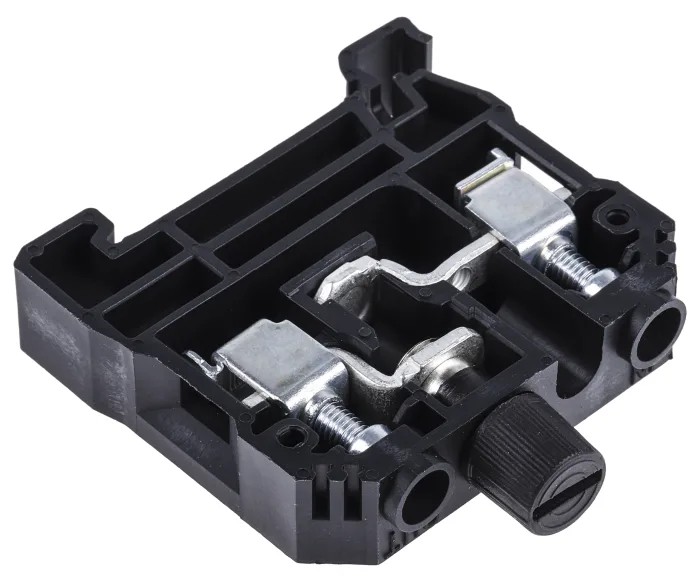

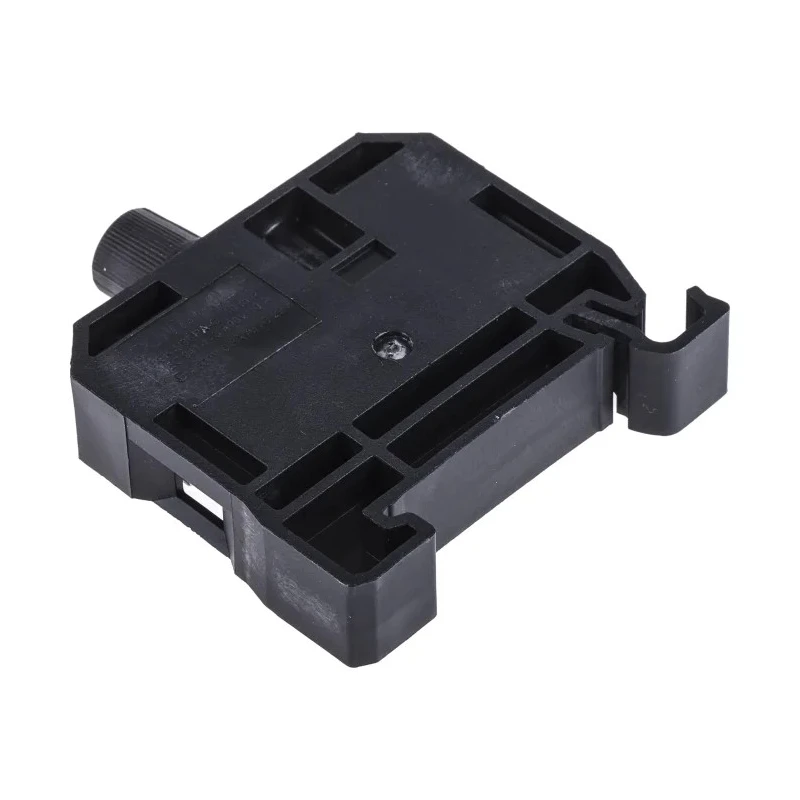

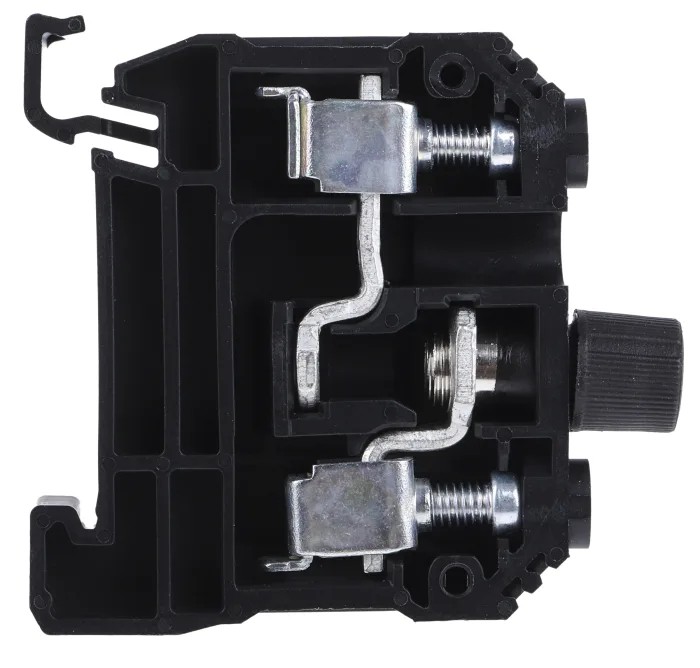

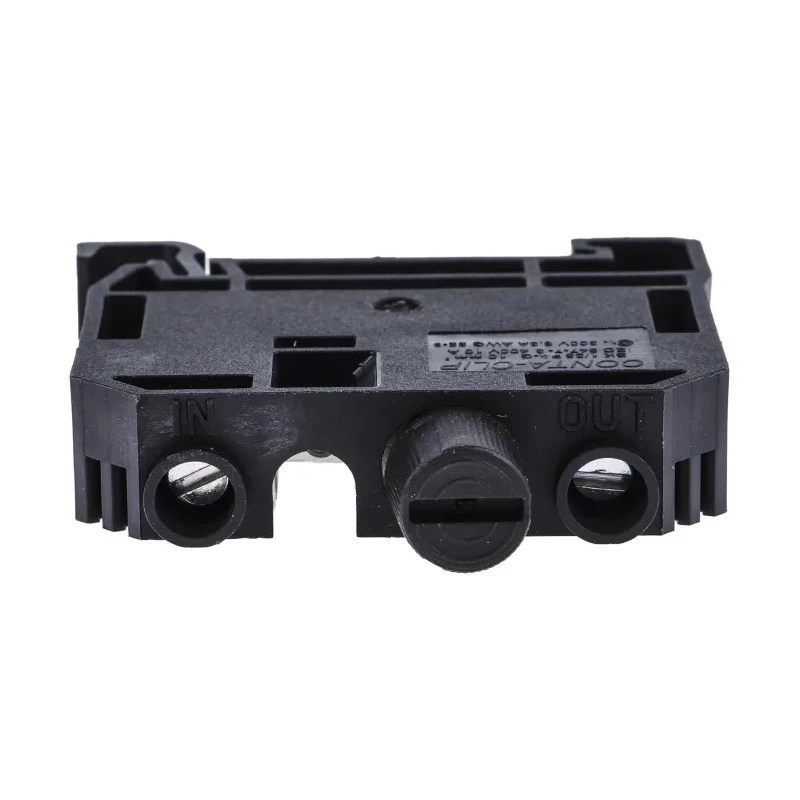

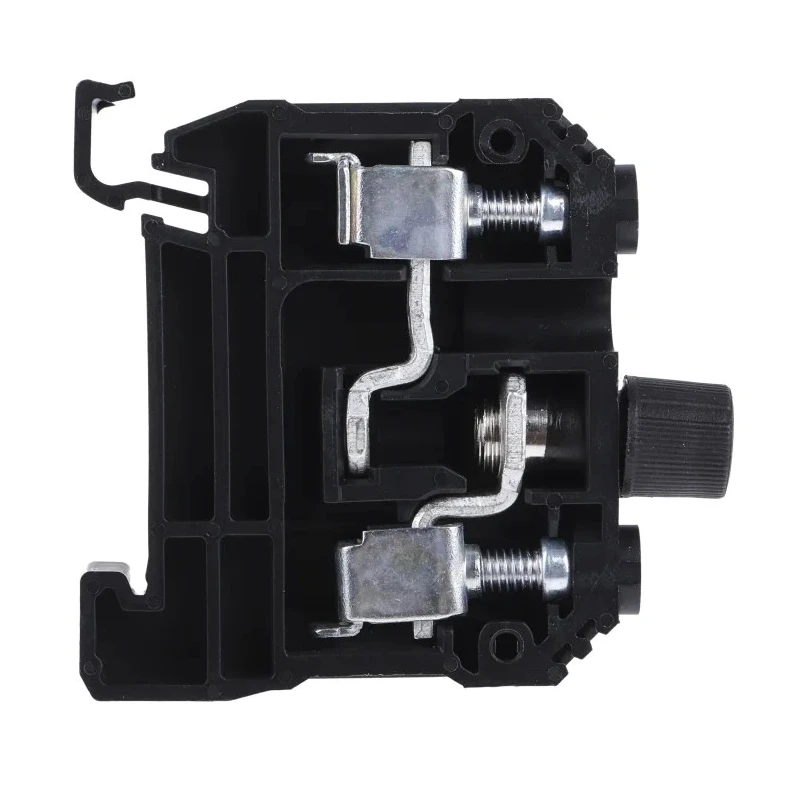

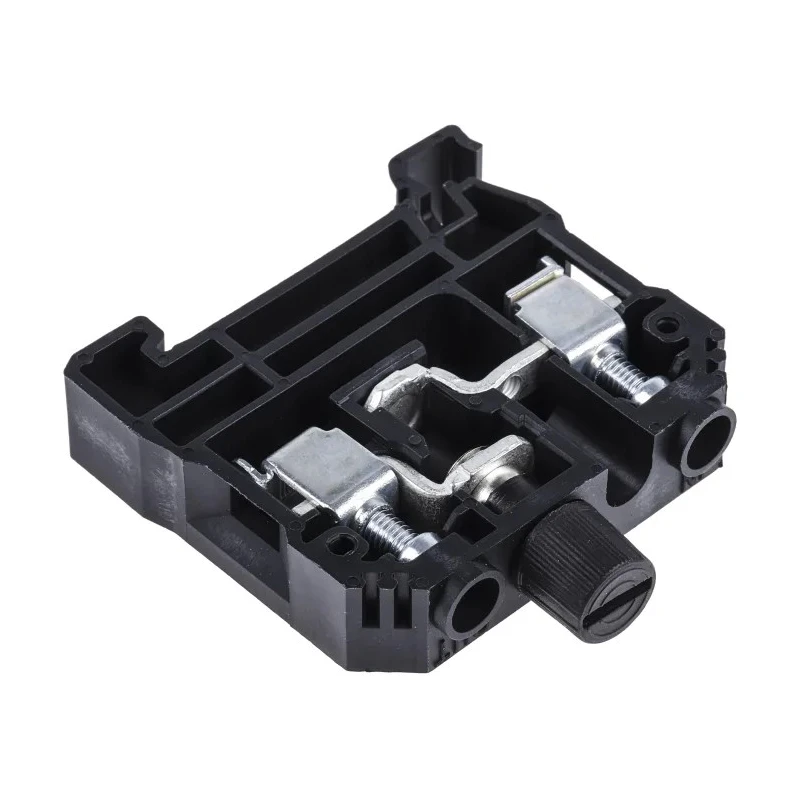

RS PRO Fused DIN Rail Terminal Black 0.5mm² to 10 mm² Screw Termination 400V 10A 501-837
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | RS PRO |
| Colour | Black |
| Length | 52 mm |
| Model | 501-837 |
| Width | 12.2 mm |
| Termination Type | Screw |
| Maximum Operating Temperature | 140°C |
| Number of Levels | 1 |
| Sub Type | Fused |
| Minimum Operating Temperature | -40°C |
| Pitch | 12.2mm |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 8AWG |
| Cable CSA | 0.5, 10mm² |
| Terminal Block Current | 10A |
| EAC, TR ZU 004/2011, KEMA-KEUR, C22.2 No 158, CSA, CSAus, EN 60947-7-3 | 2009, UL |
| Rated cross-section | 10 mm² |
| RS PRO Fused DIN Rail Terminal Black, 0.5mm², 10 mm², 1-Level Fused, ScrewBrand | RS PRO |
Key Features
- Compatible with wires from 0.5mm² to 10mm² cross-section.
- Features a single-level fuse for circuit safety.
- Constructed with black polyamide 6.6, glass-fibre reinforced housing for durability.
- Operating temperature range from -40°C to 140°C for diverse environments.
- Termination uses slotted M4 screws ensuring secure electrical connections.
- Fuse size specified as 5 x 20 mm facilitates easy replacement.
- Ideal for industrial, energy management, telecommunications, and building management applications.
Product Description
RS PRO 501-837 fused DIN rail terminal block is designed for safe and efficient electrical system protection by incorporating a built-in fuse to prevent overcurrent and short circuits. Its compact black polyamide 6.6 housing with glass-fibre reinforcement ensures excellent insulation and mechanical strength suitable for demanding industrial environments.
This terminal block supports a wide wire size range from 0.5mm² up to 10 mm² and operates reliably within a voltage rating of 400V and a current rating of 10A. The termination method uses screw-type connections with M4 slotted screws providing secure and stable wiring.
Designed to be mounted on standard DIN rails, its compact dimensions of 12.2 mm width and 52 mm length make it ideal for use in control cabinets and distributed control systems. The fuse fitted is a standard 5 x 20 mm size allowing quick and convenient fuse replacement.
RS PRO 501-837 complies with multiple safety and quality certifications including EAC, TR ZU 004/2011, KEMA-KEUR, CSA, CSAus, EN 60947-7-3:2009, and UL ensuring dependable performance in global markets. The terminal block performs well under harsh conditions with an operating temperature from -40° to 140°C, making it suitable for industrial machinery, power supplies, lighting controls, telecommunications, and building management systems.
Compatible with wires from 0.5mm² to 10mm² cross-section. Integral fuse provides overcurrent protection. Screw termination with M4 slotted screws for secure connections. Compact size with 12.2 mm width and 52 mm length fits standard DIN rails.
Rated at 400 volts and 10 amps current load. polymer housing enhances durability and electrical insulation. Meets stringent international safety standards and approvals. Designed for use in industrial, commercial, and telecommunications applications.
Operating temperature range from minus 40°C to 140°C. Easy fuse replacement with 5 x 20 mm fuse size.
This terminal block is a trusted choice for engineers and facility managers seeking reliable electrical protection in control panels and distribution systems. Explore the full range of RS PRO DIN Rail Terminal Blocks and accessories on EnvMart to complete your electrical installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 400V and a current of 10A.
It supports wire sizes ranging from 0.5mm² to 10mm².
The operating temperature range is from -40°C to 140°C.
It uses screw-type termination with M4 slotted screws for secure connections.
The terminal block has a width of 12.2 mm and a length of 52 mm.
It features a single-level fuse of size 5 x 20 mm for circuit safety.
It complies with multiple certifications including EAC, CSA, UL, and EN 60947-7-3:2009.
It is suitable for industrial, energy management, telecommunications, and building management applications.
The housing is constructed from black polyamide 6.6 with glass-fibre reinforcement for enhanced durability.
This model is a single-level terminal block.
The minimum wire size is 20 AWG and the maximum is 8 AWG.
The country of origin for this terminal block is India.
