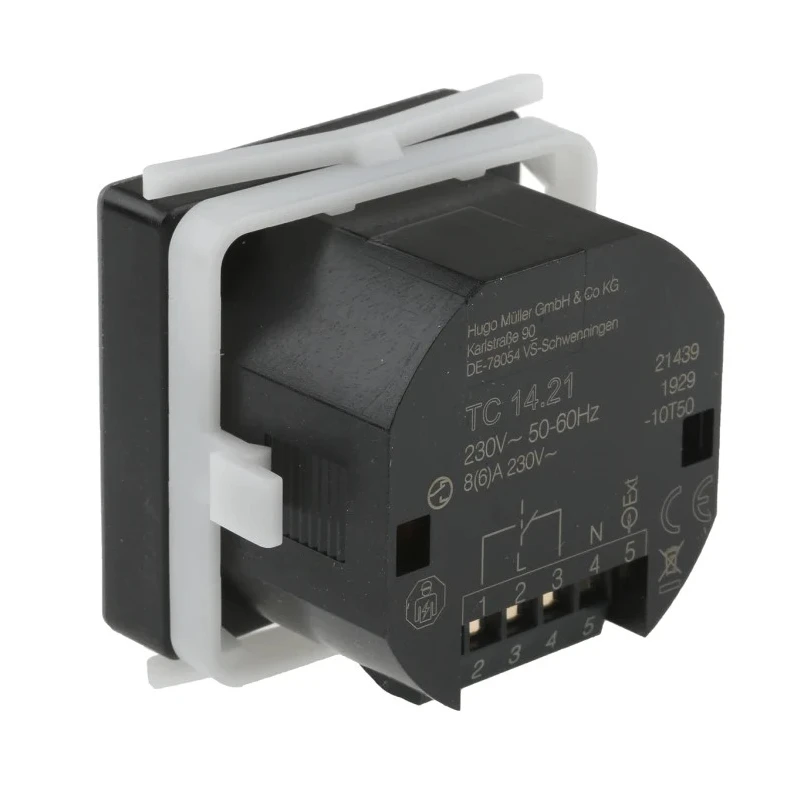

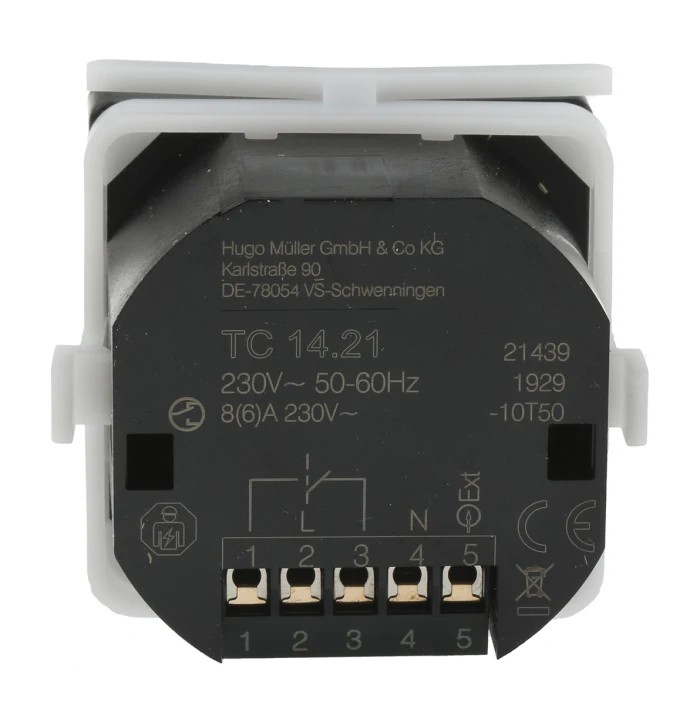

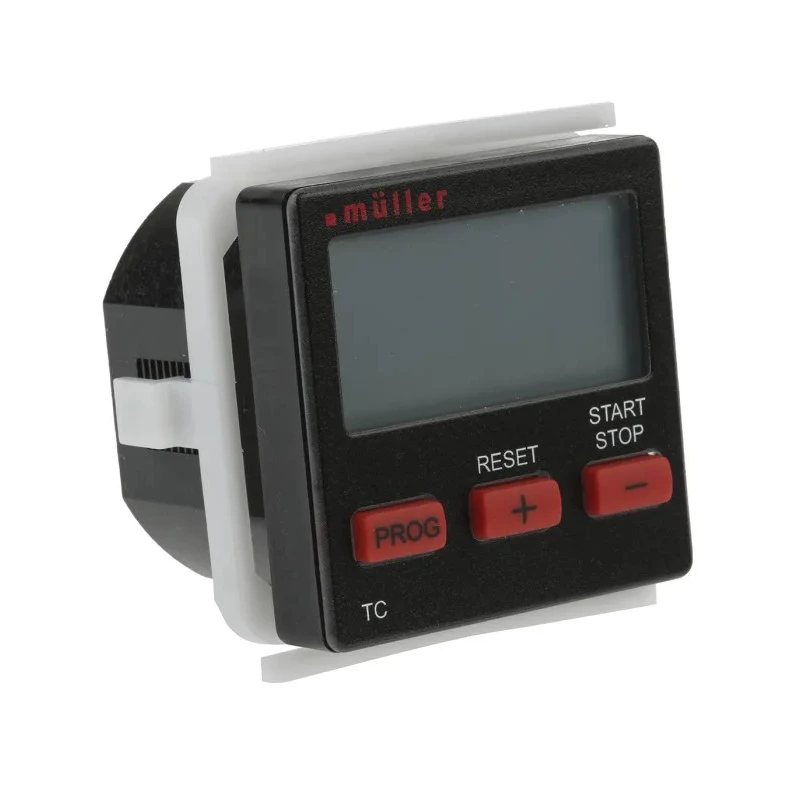

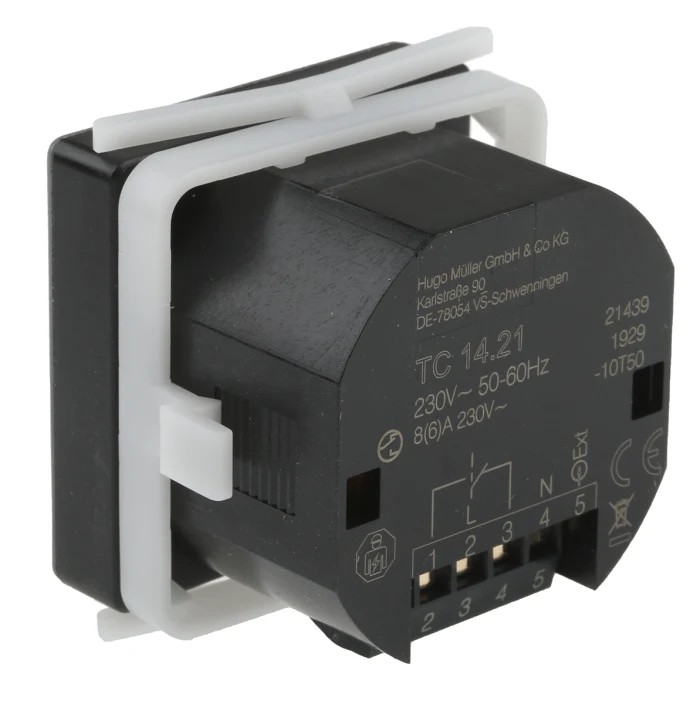

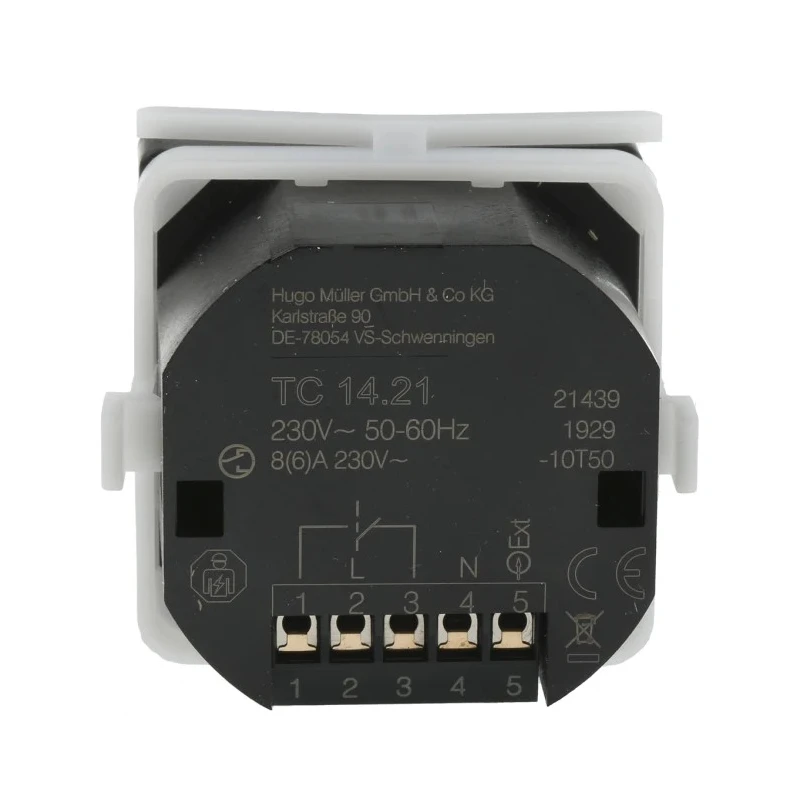

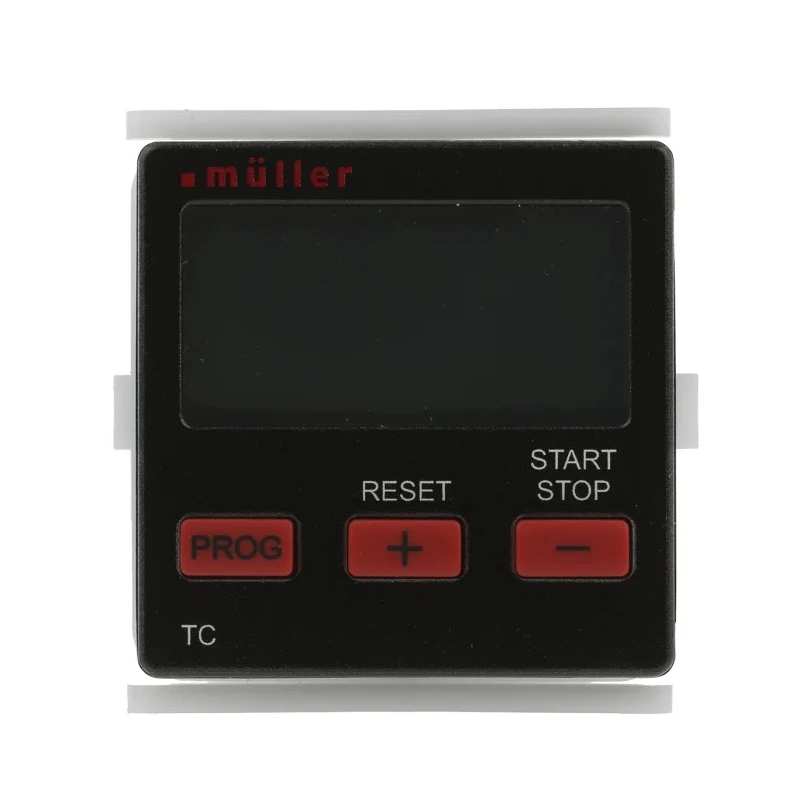

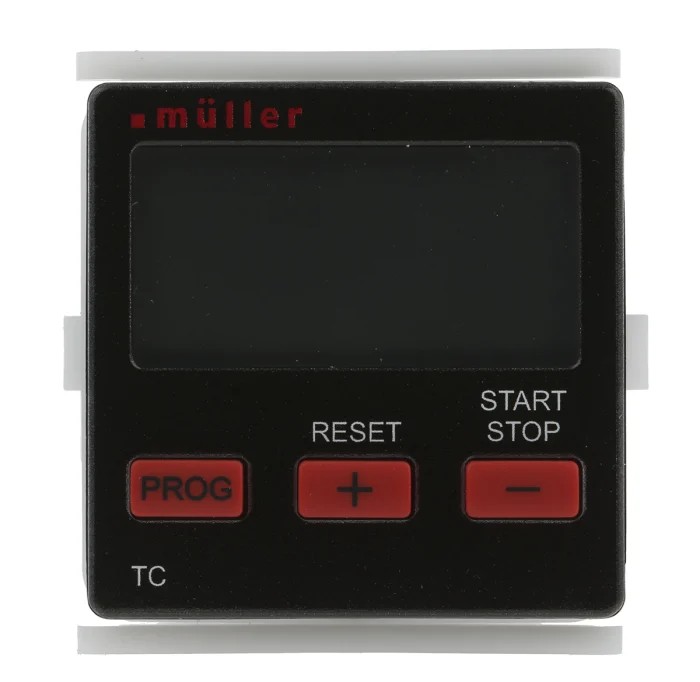

Muller Panel Mount Black Digital Timer, 230V AC, 50-60Hz, 9h 59m 59s Max, Plastic Case, DIN EN 60529 TC 14.21 230V 50-60HZ
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Muller |
| Colour | Black |
| Height | 48mm |
| Model | TC 14.21 230V 50-60HZ |
| Depth | 41mm |
| Width | 48mm |
| Case Material | Plastic |
| Character height | 15mm |
| Standards/Approvals | DIN EN 60529, DIN EN 43700 |
| Count Direction | Down |
| Digital/Analogue | Digital |
| Maximum Time Seconds | 59s |
| Maximum Time Minutes | 59min |
| Maximum Time Hours | 9h |
| Muller Digital TC Panel Mounted Time Switch 230V acBrand | Muller |
| RS PRO ClockBrand | RS PRO |
| RS PRO White Digital TimerBrand | RS PRO |
Key Features
- The timer features a clear 15mm high LCD display for easy time visualization.
- It operates on a 230 V AC mains power supply with a power backup ensuring reliable functionality.
- Equipped with start, stop, reset, and program buttons for user-friendly operation.
- Includes an audible alarm and visual indicators signaling completion of countdown.
- Enclosed in a self-extinguishing thermoplastic plastic case with an IP20 protection rating.
- It has a change-over relay output rated at 8 A / 230V AC suitable for various control applications.
- Input controls for start and stop functions operating at 230 VAC.
- Ideal for industrial, laboratory, and commercial timing applications such as meetings, cooking, competitions, and lectures.
Product Description
The Muller TC 14.21 230V 50-60HZ is a panel mount digital timer designed for precise countdown timing in industrial, laboratory, and commercial environments. With a 230 V AC mains power supply and backup feature, this timer ensures reliable operation during all phases of use. Its compact black thermoplastic enclosure offers IP20 protection against objects larger than 12 mm, making it suitable for panel mounting in equipment and machinery.
Featuring a user-friendly interface with start, stop, reset, and program buttons, the timer allows simple and intuitive control. The large 15 mm high LCD numerals provide clear visualization of the countdown process, counting down from a maximum of 9 hours, 59 minutes, and 59 seconds. Upon completion, both optical and audible alarms notify the operator effectively.
This timer's output is controlled via a change-over relay rated for 8 A at 230 V AC, suitable for a variety of control and automation applications. Input terminals support start and stop commands at 230 VAC voltage, integrating easily with control systems.
Typical applications include sporting events, cooking timers, meeting management, lectures, and other scenarios requiring precise elapsed time measurement. The timer complies with DIN EN 60529 and DIN EN 43700 standards ensuring safety and quality.
Clear 15mm high digital display with countdown function. 230 V AC power supply with power backup for continuous operation. User-friendly start, stop, reset, and program buttons. Visual and audible signals upon time completion.
Robust thermoplastic IP20 rated enclosure for panel mounting. Relay output rated for 8 A at 230 V AC. Compliant with DIN EN 60529, DIN EN 43700 standards.
This Muller Digital Timer is manufactured in Germany and represents a reliable component for time-related control in multiple industrial and commercial settings. Browse the Electronics Components category in EnvMart for more advanced timing and control solutions from Muller and other premium brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum countdown time for this model is 9 hours, 59 minutes, and 59 seconds.
It operates on a 230 V AC mains power supply and is compatible with a frequency range of 50-60 Hz.
The change-over relay output is rated for 8 A at 230 V AC.
It features a clear LCD display with numerals that are 15 mm high for easy time visualization.
The dimensions of this unit are 48 mm in height, 48 mm in width, and 41 mm in depth.
The timer is enclosed in a self-extinguishing thermoplastic plastic case.
It complies with DIN EN 60529 and DIN EN 43700 standards.
Upon completion, it provides both visual and audible alarms to notify the operator.
It has input terminals for start and stop functions that operate at 230 VAC.
This timer is suitable for industrial, laboratory, and commercial applications such as meetings, cooking, competitions, and lectures.
The timer counts downwards from the maximum set time.
This digital timer is manufactured in Germany.
