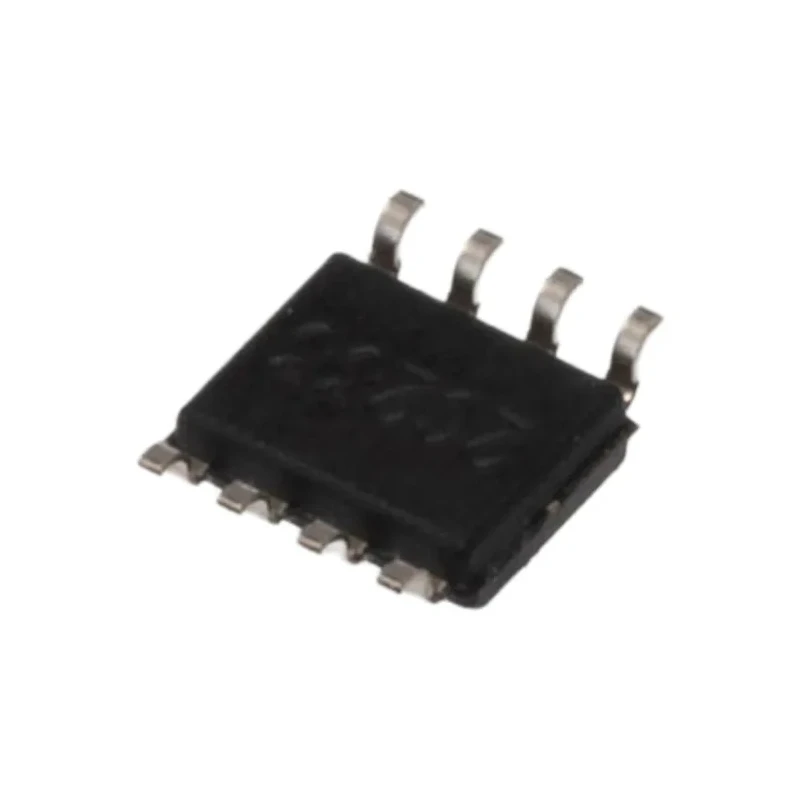

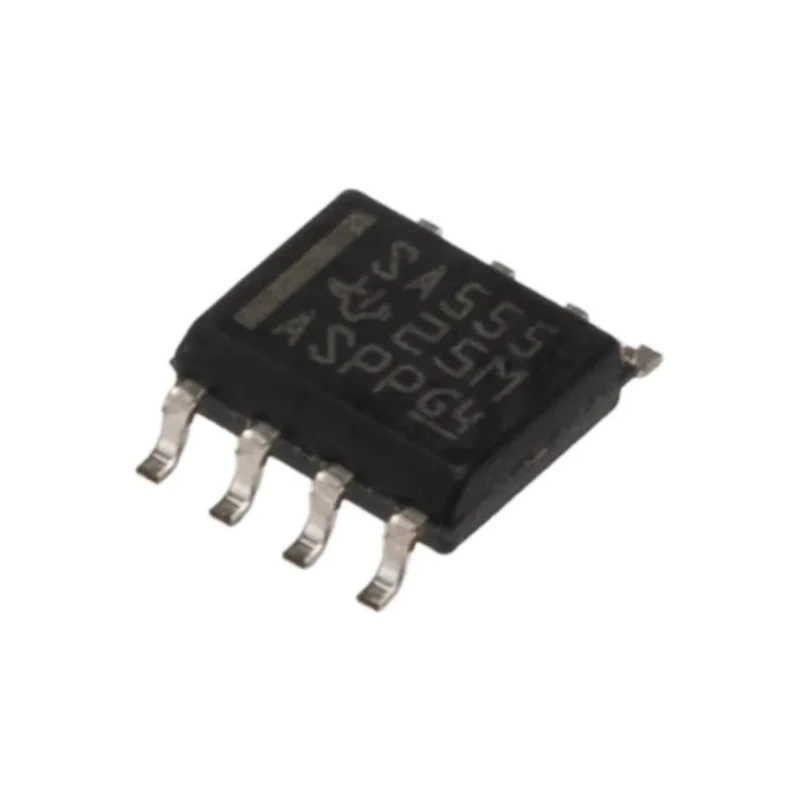

Texas Instruments 8-Pin SOIC Precision Timer IC, 4.5 - 18V, 1 Internal Timer, -40°C to 85°C xx555
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | xx555 |
| Mount Type | Surface |
| Series | xx555 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Timer |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4.5V |
| Number of Internal Timers | 1 |
| Maximum Propagation Delay Time @ M | 15ns |
| Propagation Delay Test Condition | 15pF |
Key Features
- 8-pin SOIC package for space-efficient PCB mounting.
- Operates from 4.5V up to 18V supply voltage for broad compatibility.
- Provides one highly stable internal timer circuit.
- Wide temperature range operation from -40°C to 85°C for industrial reliability.
- Low maximum propagation delay of 15ns at 15pF test conditions.
- Surface mount design for automated assembly processes.
- Pin count and dimensions suitable for compact PCB layouts.
- Suitable for timing, pulse generation, and oscillator circuit use.
Product Description
The Texas Instruments SA555D is a single timer IC designed for high-precision time delay or oscillator functions. This device is housed in an 8-pin SOIC package, making it an excellent choice for surface mount designs where space is limited and reliable performance is critical.
With an operating supply voltage range from 4.5V to 18V, the SA555D series timer supports a variety of logic families and power environments, making it a versatile solution for electronics engineers and circuit designers. The device features a single internal timer circuit, offering flexibility in creating accurate time-based pulses, delays, or square wave generation.
This IC is capable of functioning effectively across a wide temperature range from -40°C to 85°C, making it robust for use in both industrial and commercial electronic designs. A maximum propagation delay time of 15ns (with a 15pF test load) allows for precise timing applications where response speed is critical.
8-pin SOIC packaging optimizes for compact, automated PCB assembly. Surface mount technology allows high-density design with reliability. Low propagation delay supports timing and clock circuits. Suitable for monostable and astable oscillator designs.
Ideal for timing, delay, pulse width modulation, and LED/relay control circuits. Tested for operation - 40°C to 85°C to withstand demanding environments.
Common applications include alarm circuits, pulse generators, LED flashers, one-shot timers, clock/timing circuits, and other digital and analog electronic control systems. The SA555D is part of the renowned xx555 series, trusted in industrial, automation, measurement, and embedded systems.
For full technical characteristics, consult Texas Instruments xx555 series documentation. This IC is best suited for designers seeking reliable, easily integrated timing solutions with proven versatility and compact mounting options.
Discover more timing ICs and electronic design solutions from Texas Instruments and leading brands in the 'Digital Timer' category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 18V, allowing for broad compatibility with various electronic systems.
The maximum propagation delay time is 15ns at a test condition of 15pF, making it suitable for precise timing applications.
It can function effectively across a wide temperature range from -40°C to 85°C, which is ideal for industrial applications.
This timer IC is housed in an 8-pin SOIC package, which is designed for surface mount applications.
The dimensions are 5mm in length and 1.75mm in height, making it suitable for compact PCB layouts.
It utilizes a surface mount design, which is optimized for automated assembly processes.
This model is part of the xx555 series, known for its reliability in various electronic applications.
Yes, the propagation delay is tested under a condition of 15pF, which is crucial for accurate timing performance.
The country of origin for this timer IC is India, reflecting its manufacturing location.
