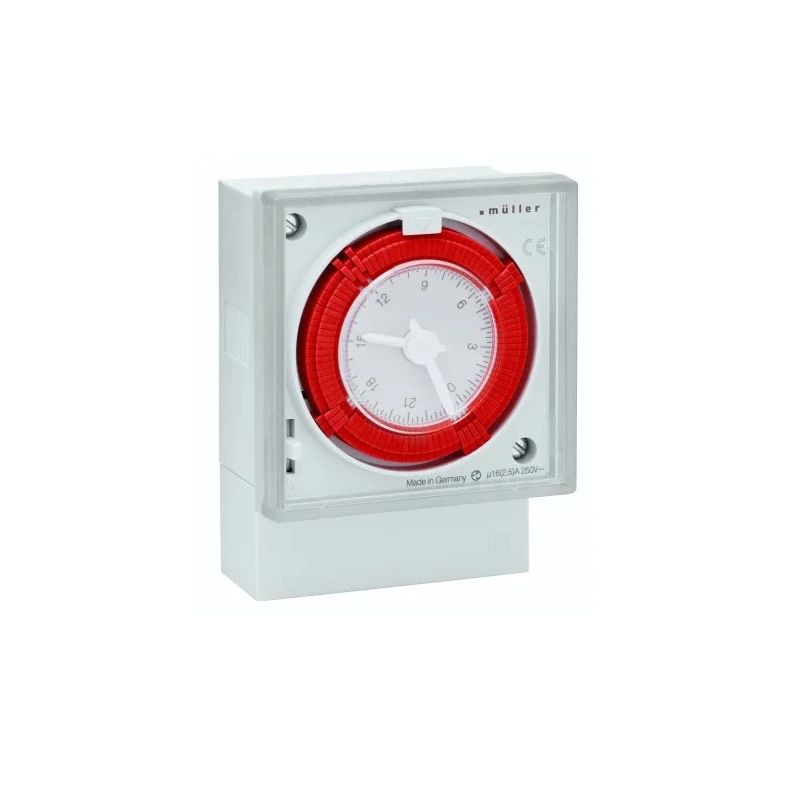

Muller Analogue DIN Rail Time Switch 115V 50-60Hz FS 64.18 115V 50-60HZ

The Muller FS 64.18 115V 50-60HZ Analogue DIN Rail Time Switch is engineered for precise time control in industrial and electrical automation systems. This analogue time switch supports daily or weekly programming with an easy-to-read display featuring close hands and captive setting keys for effortless setup.

Its compact and robust construction allows for surface mounting and incorporation into switchboard panels. The device includes a manual override switch enabling Permanent OFF, Automatic, or Permanent ON states, which adds operational flexibility.

Operating at a maximum supply voltage of 115V (50-60Hz), it meets stringent standards including DIN EN 60730-1, DIN EN 60730-2-7, RoHS compliance, and ISO 15693 ensuring safety and durability in demanding environments.

The switch dimensions are 72 x 72 mm, with a height of 94.5 mm and a depth of 48.4 mm, making it space efficient. A built-in battery provides up to 100 hours of life to maintain the program during power outages.

Surface and panel mounting capable design. Manual override for operational flexibility. Reliable analogue display with clear switching program visualization. Battery backup ensures continuity during power loss. Complies with multiple international standards for safety and reliability.

Compact size suitable for varied industrial installations. IP20 protection rating suitable for indoor electrical panels. Designed for use in electrical automation, industrial process control, and timing applications.

This time switch is an ideal solution for automation and process control where precise and reliable timing is essential. It is especially suited for installation in electrical panels requiring DIN rail mounting capability.
