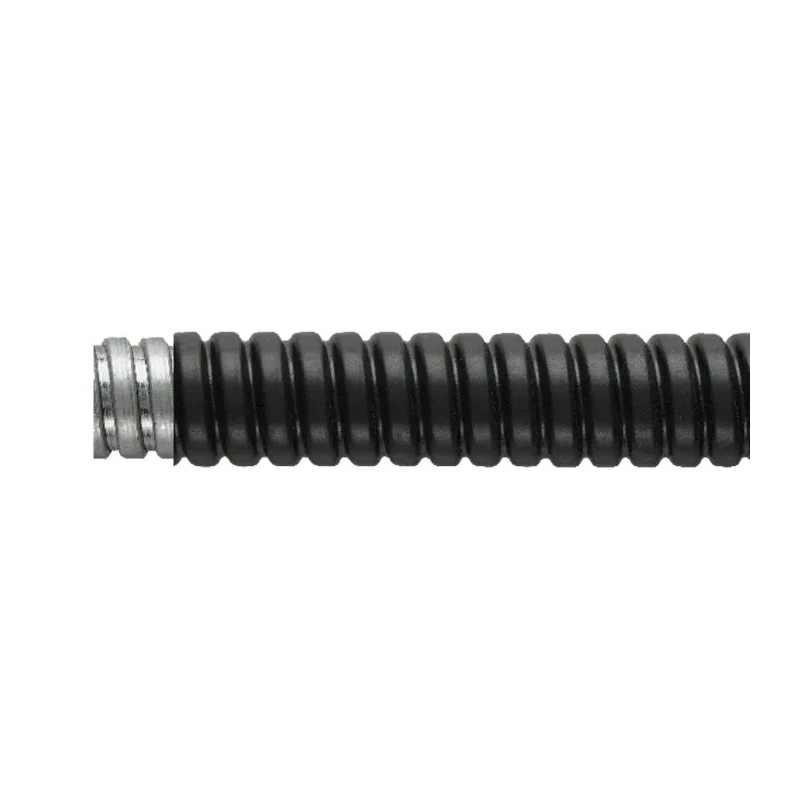

Flexicon 10 mm Nominal Diameter Polyvinyl Chloride Coated Galvanised Steel Flexible Conduit Black 25m FSU10B-25M
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Flexicon |
| Material | Galvanised Steel |
| Colour | Black |
| Temperature range | -15°C to +70°C |
| Length | 25m |
| Model | FSU10B-25M |
| IP Rating | IP54 |
| Series | FSU |
| Maximum Operating Temperature | 70°C |
| Nominal Diameter | 10mm |
| Coating Material | Polyvinyl Chloride |
| Minimum Operating Temperature | -15°C |
| Standards/Approvals | CE Compliant, RoHS Compliant |
| Resistance Features | Self-Extinguishing, UV Resistant, High Mechanical Strength |
| Minimum Bend Radius | 25mm |
| Compression strength (20mm nominal size) | 350kg/100mm |
| Pull off strength (20mm nominal size) | 120kg |
| Minimum bend radius (for 20mm nominal size conduit) | 45mm |
| Flexicon Flexible Conduit, 10mm Nominal Diameter, Galvanised Steel, BlackBrand | Flexicon |
Key Features
- Constructed from galvanised steel with a durable black polyvinyl chloride coating.
- Nominal diameter of 10 mm and length of 25 meters suit diverse wiring needs.
- Rated IP54 protection with standard fittings and IP65 with compression fittings.
- Operates reliably within a temperature range of -15°C to 70°C.
- Self-extinguishing and UV resistant ensuring safety and outdoor suitability.
- Minimum bend radius of 25 mm allows flexible and easy routing installation.
- Certified CE compliant and RoHS compliant meeting industry standards.
Product Description
Flexicon FSU10B-25M is a 10 mm nominal diameter flexible conduit constructed from galvanised steel that is helically wound and coated with black polyvinyl chloride (PVC). This conduit provides robust protection for electrical cables in industrial environments, ensuring reliable performance even under harsh conditions.
The conduit measures 25 meters in length and features an IP54 rating with standard fittings, providing dust and splash water protection. When equipped with FSU Type C compression fittings, it achieves an IP65 rating for enhanced sealing. Its temperature range spans from -15°C to +70°C, making it suitable for various industrial and factory wiring applications.
Designed for high mechanical strength and durability, the conduit is self-extinguishing and resistant to ultraviolet (UV) radiation, which allows for outdoor installation without degradation. It has a minimum bend radius of 25 mm, enabling easy routing around equipment and within machines.
This product complies with CE and RoHS standards, ensuring it meets European safety and environmental requirements. The galvanised steel core provides excellent compression and pull-off strength, ensuring cable protection and mechanical stability.
Galvanised steel construction coated with black PVC for corrosion resistance. Length of 25 meters for extended cable protection coverage. Self-extinguishing and UV resistant material for safety and longevity. IP54 rating with standard fittings, IP65 with compression fittings.
Operational temperature range from -15°C to 70°C for versatile industrial use. Minimum bend radius of 25 mm for flexible installation in confined spaces. Complies with CE and RoHS directives ensuring conformity and safety.
Ideal for electrical conduit applications in industrial, automation, manufacturing, and factory wiring installations. This flexible conduit protects cables from mechanical damage, moisture, and environmental factors. Explore more Cable Management solutions at EnvMart for reliable and compliant products.
