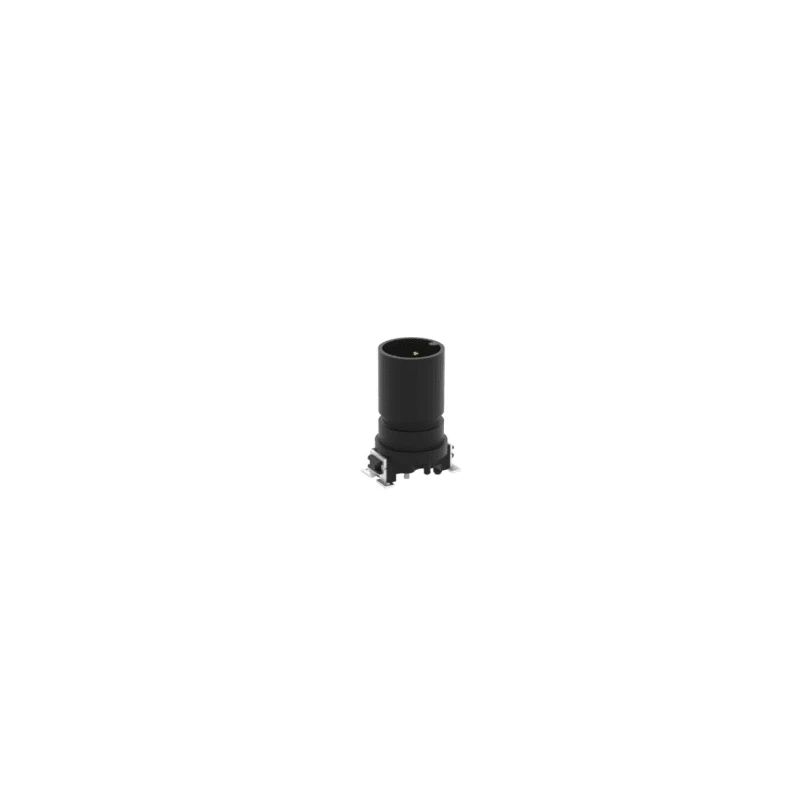

ERNI Circular Connector 4 Contacts Surface Mount, Plug Male M12 Series IP65 IP67 284809 / 284809-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI Circular Connector 4 Contacts Surface Mount, Plug Male M12 Series IP65 IP67 284809 / 284809-E

Name: ERNI Circular Connector 4 Contacts Surface Mount, Plug Male M12 Series IP65 IP67 284809 / 284809-E
Brand: ERNI
SKU: 178335
Price: 11.72 USD
Availability: InStock



Category Industrial Circular Connector Brand ERNI Condition New

Specifications

Country of Origin	Slovenia
Brand	ERNI
Orientation	Straight
Current	4A
Model	284809 / 284809-E
IP Rating	IP65, IP67
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	M12
Termination Type	Surface Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Standards/Approvals	IEC, RoHS, UL 94V-0
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Connector Size	M12
Plug/Socket	Plug
Coding	A

Key Features

The connector features a polyamide housing with gold-plated copper alloy contacts for excellent conductivity.
It supports a current rating of 4A with operating temperatures ranging from -25°C to 85°C.
Designed with IP65 and IP67 protection ratings, ensuring durability in harsh environments.
The M12 series connector has a straight orientation with coding type A and surface mount termination.
Widely used in industrial automation, communications, and transportation systems.
Compliant with IEC, RoHS, and UL 94V-0 standards for safety and environmental regulations.

Product Description

ERNI 284809 / 284809-E Circular Connector is a high-quality industrial connector from the M12 series designed for demanding automation and communication applications. This circular connector features 4 contacts housed in a durable polyamide enclosure with gold-plated copper alloy contacts, delivering reliable electrical connection and resistance to corrosion.

With a surface mount termination and a plug male design, it enables easy and secure connection on PCB assemblies. The connector's current rating of 4 amperes and operating temperature range from -25°C up to 85°C make it suitable for various industrial environments.

Protected by robust IP65 and IP67 ingress ratings, this connector resists dust and water, ensuring reliable performance in harsh industrial and outdoor conditions. The straight orientation with coding type A ensures proper mating and compatibility within M12 connector systems.

Compliant with international standards including IEC, RoHS, and UL 94V-0, the connector meets stringent quality and environmental safety requirements. Its compact design with an assembly height of 9 mm optimizes space in control panels and electronic devices.

M12 circular connectors like this model are widely used in industrial automation, transportation, communication equipment, and manufacturing processes where dependable field device connectivity is essential.

The connector uses gold contact plating and copper alloy for optimal conductivity and longevity. Surface mount design facilitates straightforward mounting on printed circuit boards for industrial control units. Wide temperature tolerance allows use in environments subject to thermal shifts.

IP65 and IP67 ratings protect against dust ingress and water jets or immersion. Its M12 size and coding ensure compatibility with a broad range of industrial circular connector variants.

Choose ERNI 284809 / 284809-E for reliable, high-performance circular connections in industrial and commercial electronic systems. Browse more products in Industrial Circular Connectors at EnvMart for comprehensive connectivity solutions.
