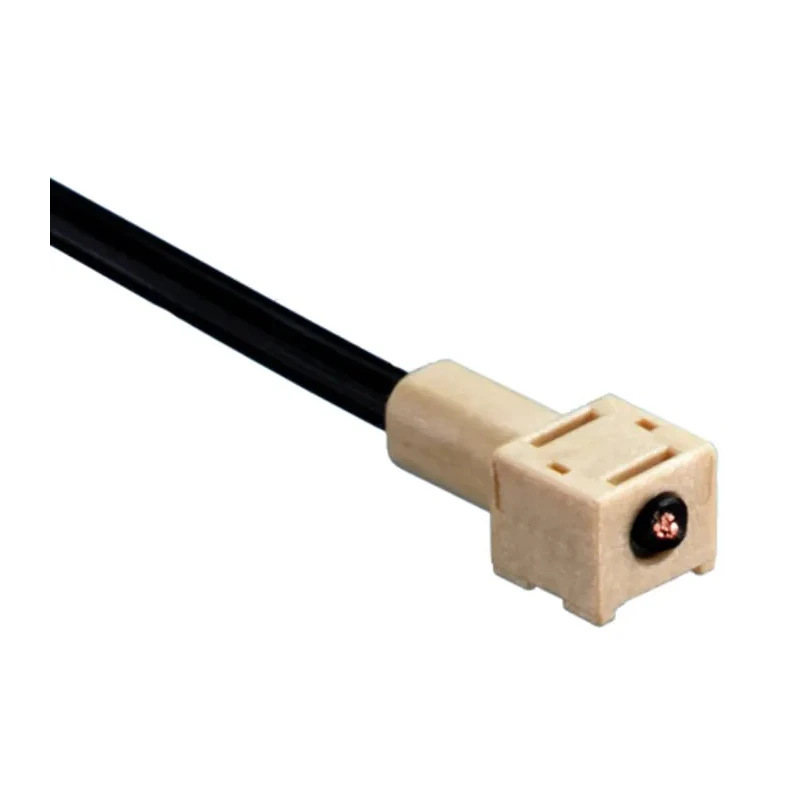

ERNI 1-Way IDC Connector for Surface Mount, 2 Row, 6A Current, 2mm Pitch 444347 / 444347-E

ERNI 444347 / 444347-E is a 1-way IDC Connector designed for surface mounting with a two-row configuration and a 2mm pitch, supporting a current of 6A. This microminiature SMT connector offers a compact solution for wire-to-board connections, achieving space savings on PCBs through its ultra-low profile design. The connector employs IDC contacts that provide a gas-tight permanent electrical connection, eliminating the need for wire preparation and hand soldering. The wire insertion is guided by a connector cap that also serves as strain relief, enhancing connection security and reliability.

The contacts utilize tin plating over copper to ensure dependable conductivity and durability. The housing is made from liquid crystal polymer, offering excellent mechanical strength and thermal stability withstanding operating temperatures from -55°C to 150°C, making it suitable for demanding industrial and electronic applications.

This connector is optimized for solid wire size AWG 24/1 and features a feed-through configuration suitable for daisy chaining. The 2-row, 1-way design coupled with a straight orientation facilitates straightforward surface mounting on printed circuit boards in automated production environments. This IDC connector eliminates traditional soldering requirements and tooling, enabling cost-effective and efficient manufacturing workflows.

PCB space-saving microminiature design. IDC contacts for gas-tight permanent connection. Eliminates need for wire preparation and soldering. Suitable for solid AWG 24/1 wire size. Feed-through configuration enables daisy chaining.

Housing material: liquid crystal polymer. Contact plating: tin over copper. Operating temperature: -55°C to 150°C. Surface mount with two rows, straight orientation. Ideal for electronic, medical, LED lighting, and smart metering applications.

Applications of this ERNI IDC connector span industrial electronics, medical equipment, retrofit LED lamps, mobile devices, and smart metering where reliable, compact wire-to-board connections are required. Its design supports high-volume automated board assembly and quality electrical performance in demanding environments.
