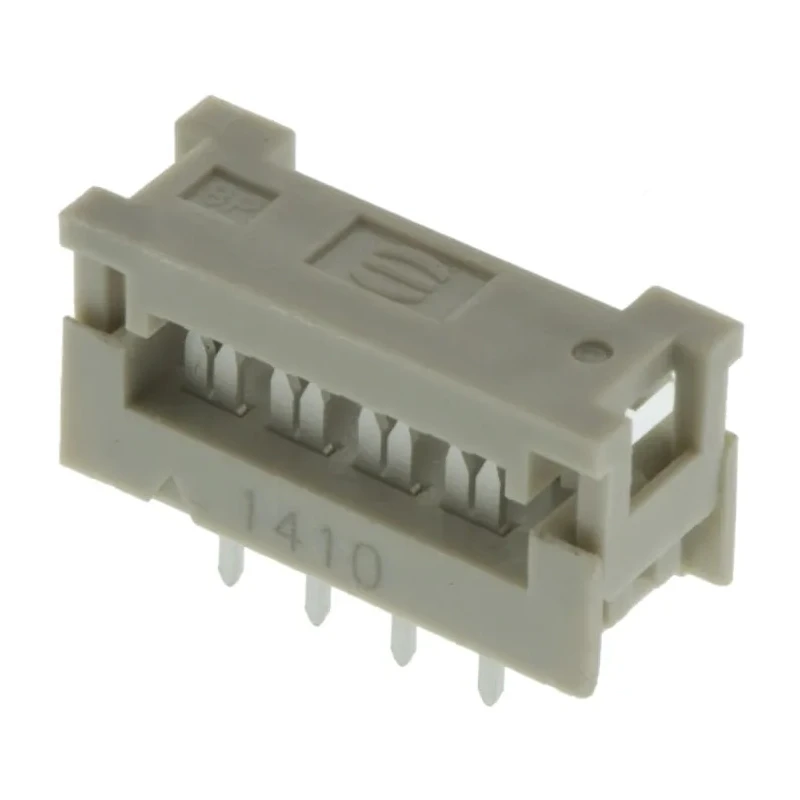

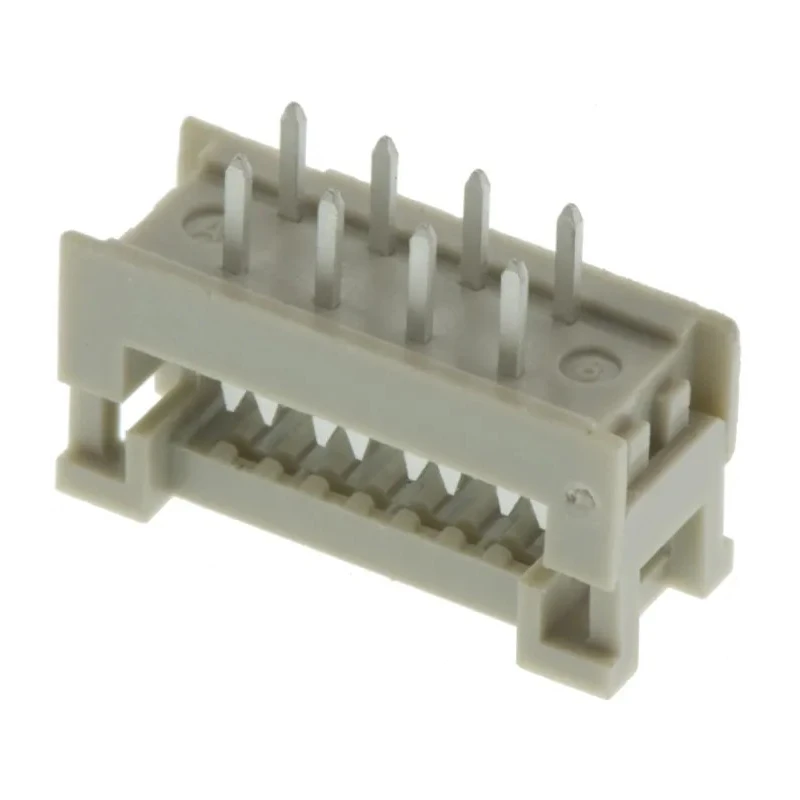

HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A Current, Tin Plated Contacts 09181089622

Free Delivery in India | Lowest Global Shipping Charges

HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A Current, Tin Plated Contacts 09181089622

Name: HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A Current, Tin Plated Contacts 09181089622
Brand: HARTING
SKU: 213110
Price: 1.71 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 8 contact points arranged in 2 rows for compact design.
Shrouded, male connector with tin-plated copper alloy contacts for enhanced conductivity.
Supports right-angle cable mounting, ideal for space-saving installations.
Housing made from durable polybutylene terephthalate ensuring excellent mechanical strength.
Operates reliably between -55°C to 105°C temperature range.
Compatible with IDC termination and SEK 18 series connectors.
Pitch spacing of 2.54 mm suitable for 1.27 mm flat cable IDC applications.
Designed for use in industrial and electronic component assembly where high reliability is required.

Product Description

HARTING 09181089622 8-Way IDC Connector Male for Cable, 2 Row is a high-quality PCB transition connector engineered for industrial and electronic applications requiring compact and reliable cable connections.

The connector houses 8 copper alloy contacts arranged in two rows with a 2.54 mm pitch, providing secure and efficient electrical contact. Its tin plating ensures excellent corrosion resistance and conductivity, while the polybutylene terephthalate housing offers robust mechanical protection and thermal endurance up to 105°C. This male shrouded connector is designed for termination via insulation displacement contact (IDC) technology, enabling quick and reliable assembly with flat cables rated for AWG 28/7.

With a rated current of 1A and voltage tolerance up to 320V AC, the connector supports numerous industrial use cases including electronic manufacturing, control panels, power connectors, and communication equipment assembly. Its right-angle cable orientation optimizes space in dense installations, making it suitable for PCB connector wiring in industrial, laboratory, and manufacturing environments.

The product is manufactured in China and complies with industry standards for durability and performance. It belongs to the SEK 18 series, ensuring compatibility with a wide range of HARTING connectors for system integration and expansion.

Features 8 contact points arranged in 2 rows for compact design. Shrouded, male connector with tin-plated copper alloy contacts for enhanced conductivity. Supports right-angle cable mounting, ideal for space-saving installations.

Housing made from durable polybutylene terephthalate ensuring excellent mechanical strength. Operates reliably between -55°C to 105°C temperature range. Compatible with IDC termination and SEK 18 series connectors. Pitch spacing of 2.54 mm suitable for 1.27 mm flat cable IDC applications.

Designed for use in industrial and electronic component assembly where high reliability is required. Explore the wide range of HARTING connectors and electrical components at EnvMart for all your industrial automation, electrical connector, and manufacturing needs.
