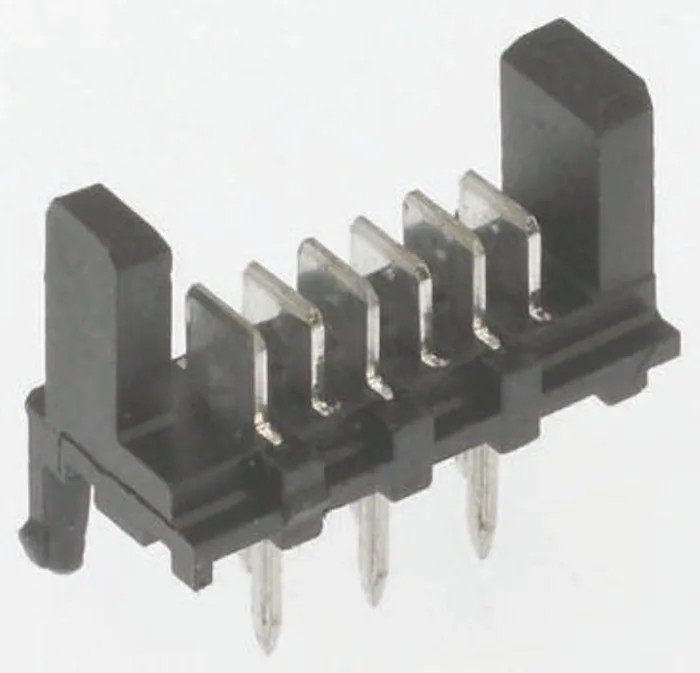

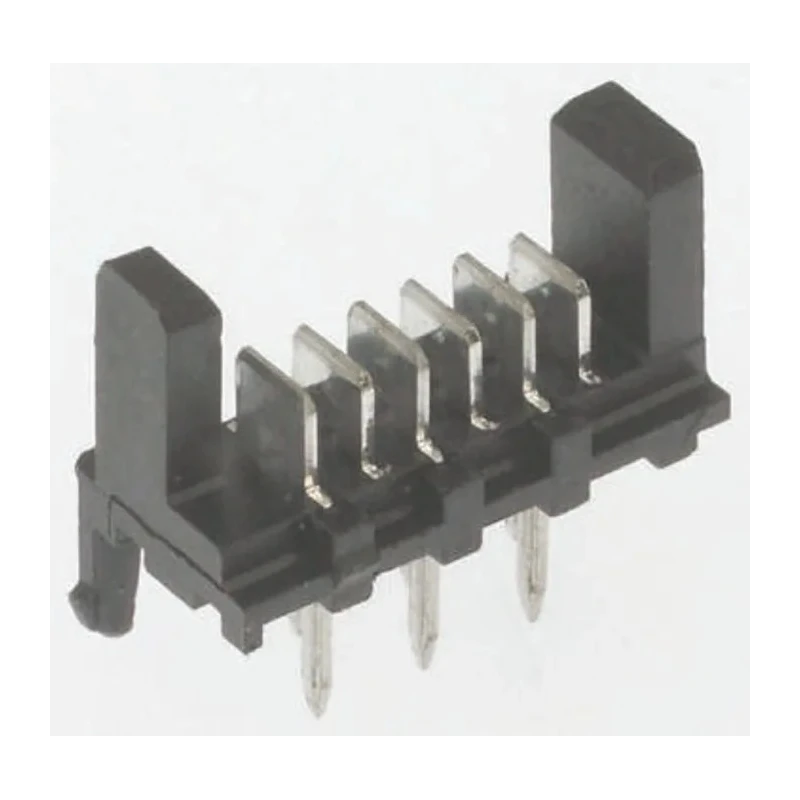

Molex 14-Way IDC Connector Male for Surface Mount, 1 Row, 1.27mm Pitch, 1.2A Current, Tin over Nickel Plating 90814-0814

Molex 90814-0814 is a 14-way IDC Connector designed for surface mounting applications. This single-row, male connector with 1.27 mm pitch provides a compact and reliable connection solution for PCB assemblies requiring precise contact spacing.

Constructed using brass contacts plated with tin over nickel and housed in durable nylon, this connector ensures excellent electrical conductivity and mechanical stability. It supports a current rating of 1.2A and voltage up to 250V AC, making it suitable for a range of electronic devices and industrial applications.

Operational temperature ranges from -40°C to 105°C, enabling use in diverse environments including automotive and consumer electronics. The design incorporates friction lock and polarization for secure mating and ease of installation.

This connector is a part of the Picoflex series, known for space-saving features that provide up to 50% reduction in footprint compared to traditional pitch connectors. Its low profile and robust build help resist vibration and shock, enhancing longevity and performance in demanding applications.

Applications include industrial, automotive, consumer electronics, and other fields requiring reliable wire-to-board connections with high-density layouts. Current rating of 1.2A ensures stable electrical flow. Tin over nickel contact plating adds corrosion resistance.

Brass contact material combined with nylon housing for durability. Wide operating temperature range of -40°C to 105°C. Unshrouded male connector with straight orientation for versatile mounting. Surface mount configuration supports efficient PCB assembly.

Complies with industry standards though no specific approvals are listed. Manufactured in Ireland, underscoring quality assurance. Designed for high-density applications with 1.27 mm pitch spacing.

For detailed design integration, 3D models, schematics, and footprints are available from Molex and their partners. This product is ideal for engineers and designers seeking versatile IDC connectors for electronics manufacturing.

Explore more IDC Connectors and related electronic components at EnvMart for comprehensive solutions in industrial and commercial electronics needs.
