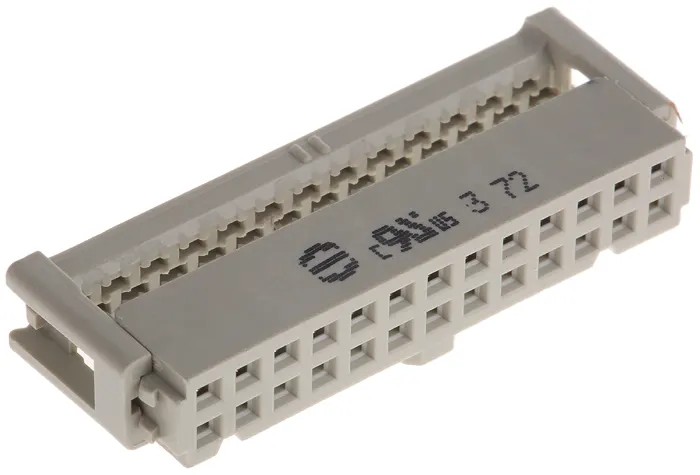

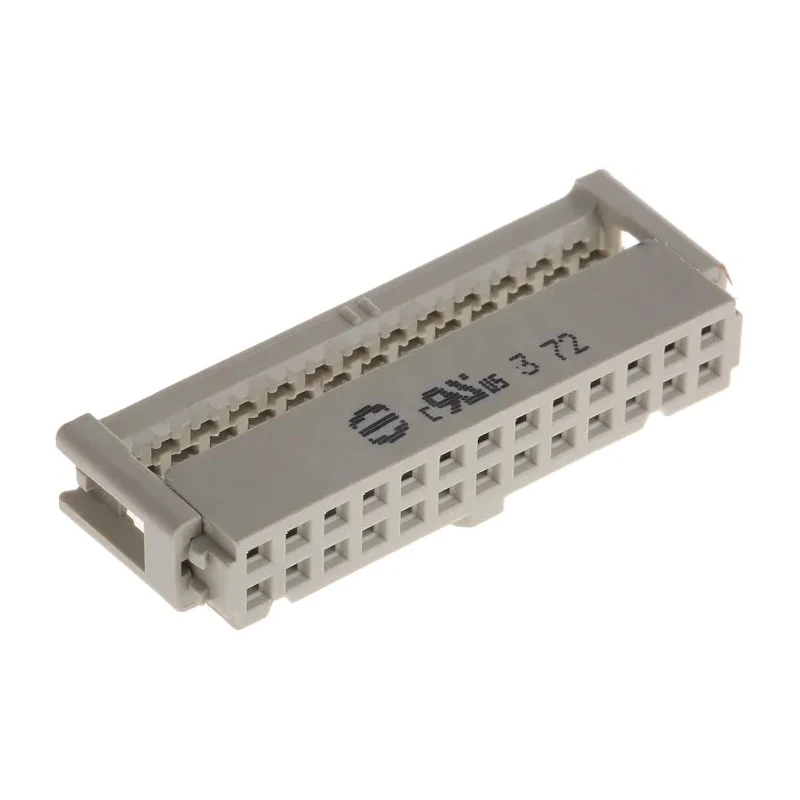

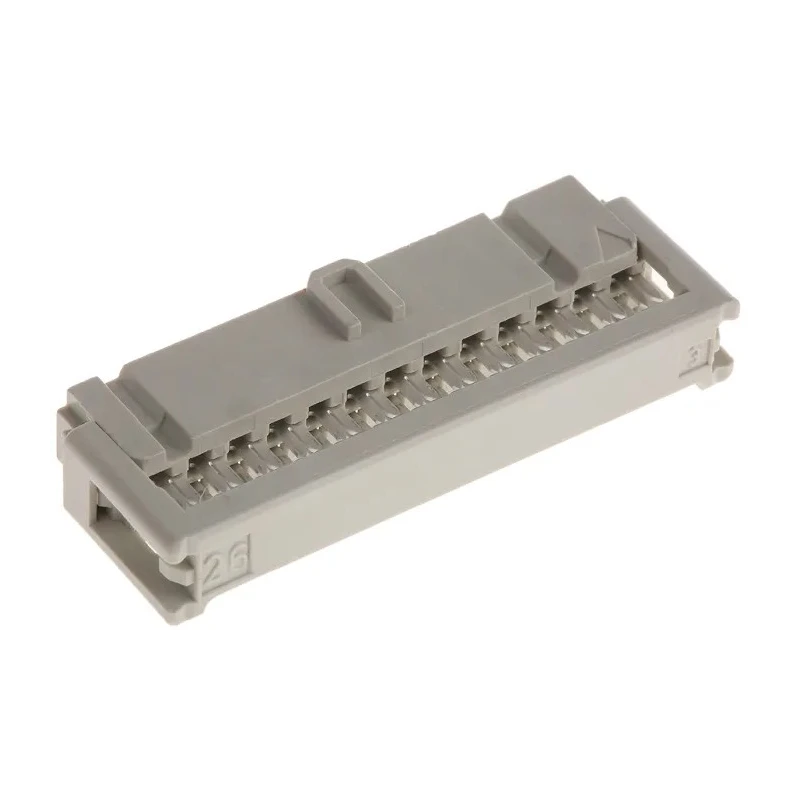

HARTING 26-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, Right Angle, Gold 09185267803

Free Delivery in India | Lowest Global Shipping Charges

HARTING 26-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, Right Angle, Gold 09185267803

Name: HARTING 26-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, Right Angle, Gold 09185267803
Brand: HARTING
SKU: 213146
Price: 3.34 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	2.5A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
HARTING 26-Way IDC Connector Female for Cable, 2 RowBrand	HARTING

Key Features

Features 26 contacts arranged in 2 rows for reliable connections.
Rated for a continuous current of 2.5 amperes.
Connector pitch is 2.54 millimeters for precise PCB compatibility.
Right angle orientation with gold-plated copper alloy contacts for durability.
Shrouded female IDC connector ensuring secure cable fitting.
Operates reliably within temperature range of -55°C to 125°C.
Constructed with polybutylene terephthalate housing for mechanical stability.
Meets IEC 60603-13 standard, ensuring consistent performance quality.

Product Description

HARTING 09185267803 IDC Connector Female, 26-Way, 2 Row is a high-quality cable mount connector designed for reliable industrial and electronic applications. It supports a current rating of 2.5 amperes and operates at voltages up to 320 volts AC, making it suitable for power and signal transmission in various environments.

This connector features gold-plated copper alloy contacts that ensure excellent conductivity and resistance to corrosion. The contacts are arranged in two rows with a 2.54 mm pitch, conforming to the SEK 18 series standard, allowing seamless integration with compatible wiring systems.

The shrouded female IDC design with right angle orientation facilitates secure cable connections and strain relief. The housing is made from durable polybutylene terephthalate material, providing mechanical strength and high temperature resistance from -55°C to 125°C, suitable for harsh industrial environments.

Manufactured in Switzerland, this connector complies with IEC 60603-13 standards, ensuring reliable performance and adherence to industry requirements. It is ideal for use in electronic components, power connectors, and PCB wiring applications where precision and durability are critical.

Features 26 contacts arranged in 2 rows for reliable connections. Rated for a continuous current of 2.5 amperes. Connector pitch is 2.54 millimeters for precise PCB compatibility. Voltage rating up to 320 volts AC suitable for industrial usage.

Right angle orientation with gold-plated copper alloy contacts for durability. Shrouded female IDC connector ensuring secure cable fitting. Operates reliably within temperature range of -55°C to 125°C. Constructed with polybutylene terephthalate housing for mechanical stability.

Meets IEC 60603-13 standard, ensuring consistent performance quality. Manufactured in Switzerland with SKU 09185267803 for identification.

This connector is extensively used in industrial, manufacturing, electronic assembly, and electrical power distribution applications. It facilitates easy cable mounting and improves production efficiency by providing robust connectivity and straightforward installation. Browse more IDC Connectors and related components to find complementary products suitable for your projects at EnvMart.
