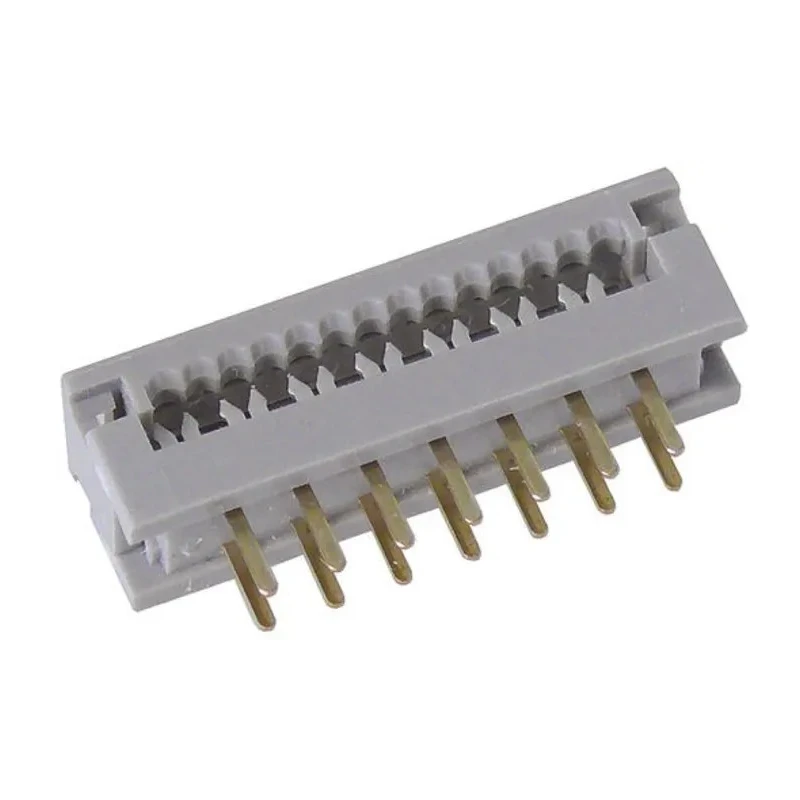

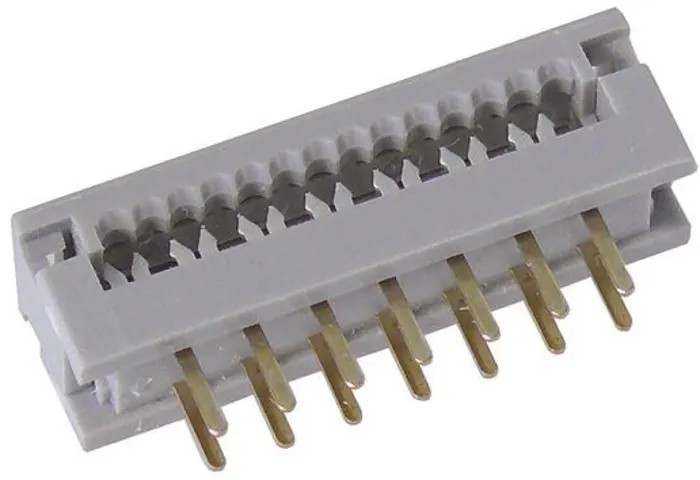

HARTING 50-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A Current, Right Angle Mount 09181509622

HARTING 09181509622 50-Way IDC Connector Male for Cable, 2 Row is engineered for PCB cable transition applications, providing a robust connection solution rated at 320V AC and 1 ampere current capacity. It is designed as a right angle cable mount connector with shrouded housing and male contacts.

The connector features 50 copper alloy contacts plated with tin arranged in 2 rows at a 2.54 mm pitch, compatible with IDC flat cable of 1.27 mm pitch using AWG 28/7 conductors. Its housing material, polybutylene terephthalate, offers excellent durability and mechanical support. Operating temperature range from -55°C to 105°C makes it suitable for demanding industrial environments.

This low-profile connector with a 5.5 mm height facilitates compact PCB layout and cable management. The IDC termination type ensures fast and reliable cable assembly, enhancing production efficiency in manufacturing and electronic assembly lines.

50 contact points arranged in two rows ensure secure signal transmission. Copper alloy contacts with tin plating optimize conductivity and corrosion resistance. Polybutylene terephthalate housing provides mechanical strength and chemical resistance.

Rated for 320V AC voltage and 1A current, suitable for moderate power applications. Operable from -55°C to 105°C, ideal for a broad range of industrial ambient conditions. Right angle orientation for effective cable routing on PCBs.

Shrouded male connector design prevents accidental contact and damage. Part of SEK 18 series, ensuring compatibility across system components. Manufactured in China employing strict quality standards.

This HARTING IDC Connector is widely used in industrial, electronic manufacturing, machinery assembly, automation systems, and HVAC equipment for reliable cable connections and streamlined installation.
