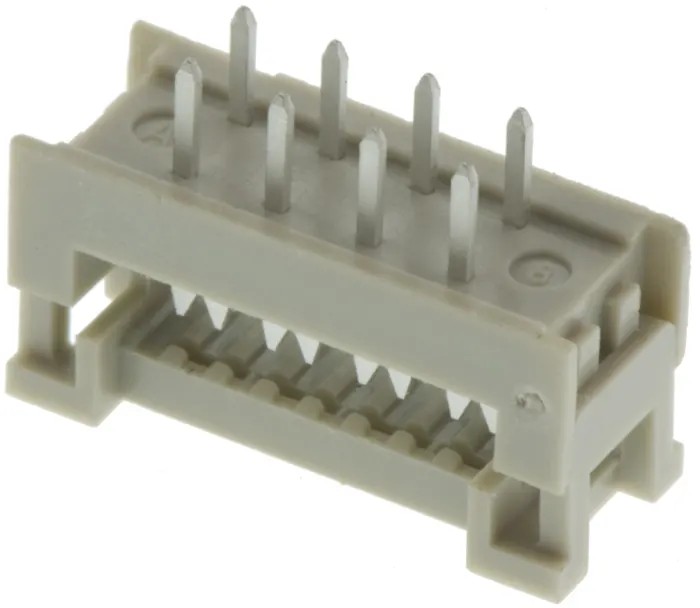

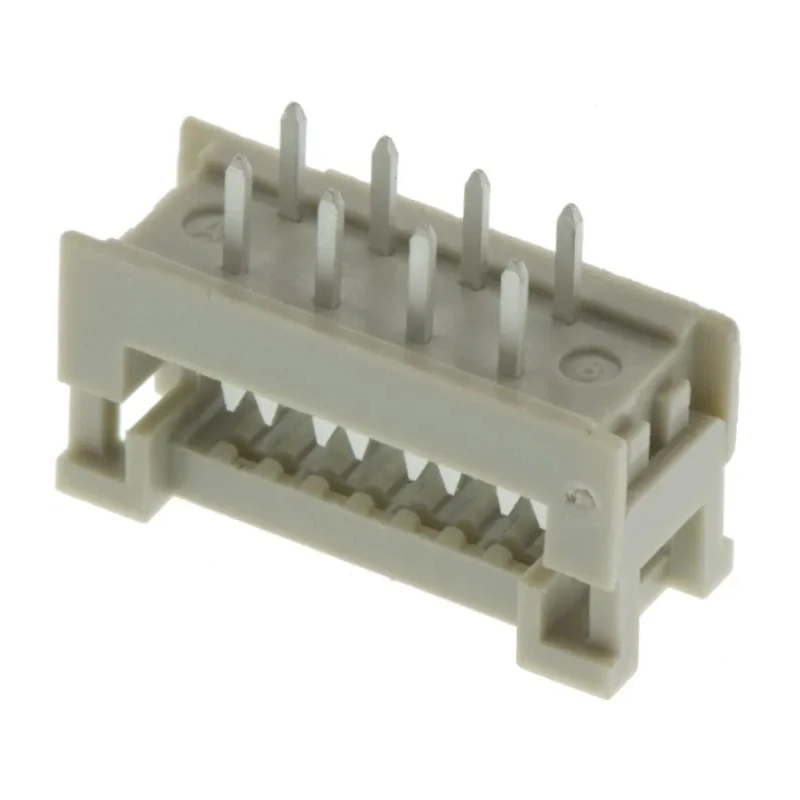

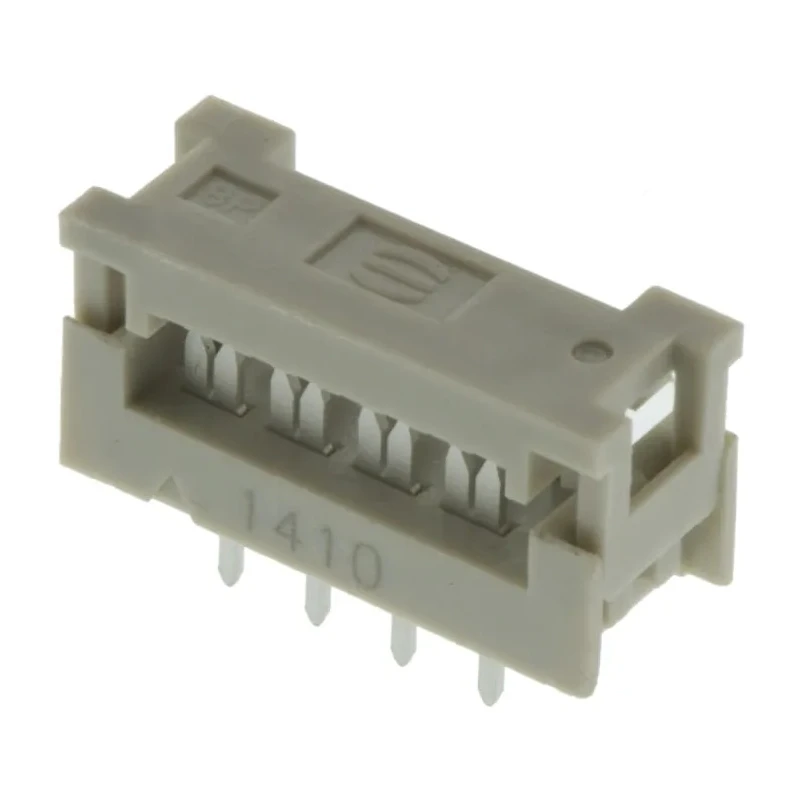

HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A, SEK 18 Series 09181089622

Free Delivery in India | Lowest Global Shipping Charges

HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A, SEK 18 Series 09181089622

Name: HARTING 8-Way IDC Connector Male for Cable, 2 Row, 320V AC, 1A, SEK 18 Series 09181089622
Brand: HARTING
SKU: 213114
Price: 1.71 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Designed with 8 contacts arranged in 2 rows for compact cable connection.
Supports a current rating of 1A suitable for low power applications.
Connector pitch is 2.54 mm ensuring compatibility with standard IDC flat cables.
Construction includes shrouded connector housing made from polybutylene terephthalate for durability.
Operates reliably in temperatures from -55°C to 105°C for versatile environments.
Contact plating is tin with copper alloy contact material for excellent conductivity.
Right-angle cable mount type facilitates neat routing and installation in equipment.
Termination type is IDC, providing reliable insulation displacement connection.

Product Description

HARTING 09181089622 is a precision engineered 8-Way IDC Connector Male designed for cable mounting within electronic and electrical systems. This connector features 2 rows of contacts offering a compact solution for PCB transition and cable interfacing applications, making it suitable for a wide range of industrial environments.

The connector operates at a voltage rating of 320V AC and supports a current of 1 Ampere, ideal for low power and signal transmission tasks in electronic assemblies. Its pitch of 2.54 mm matches standard IDC flat cable specifications (1.27 mm pitch, AWG 28/7), ensuring easy integration with flat cables.

Key design aspects include a shrouded housing molded from polybutylene terephthalate providing mechanical strength and electrical insulation, while the contacts are crafted from copper alloy with tin plating to ensure excellent electrical conductivity and corrosion resistance. The connector’s right-angle orientation allows for efficient cable routing in constrained assembly spaces.

Operating temperature range from -55°C to 105°C guarantees dependable performance in harsh environments, suitable for industrial, manufacturing, telecommunications, automation, and instrumentation applications.

8 contacts arranged in 2 rows for space-saving connections. Current rating of 1A to support moderate loads. 2.54 mm pitch for standard IDC flat cable compatibility. Durable polybutylene terephthalate housing for electrical insulation and robustness.

Tin plated copper alloy contacts for optimal conductivity and longevity. Right-angle cable mounting aids neat and effective wiring layouts. Termination via IDC type for reliable insulation displacement connections. Operating temperature range of -55°C to 105°C for diverse applications.

Manufactured in China under stringent quality controls.

This connector is widely used in industrial electronics, PCB interconnection, automation controls, and signal transmission systems where compact, reliable, and robust cable connectors are required. Its specifications make it ideal for electrical engineering applications, laboratory devices, manufacturing equipment, and commercial electronic assemblies.
