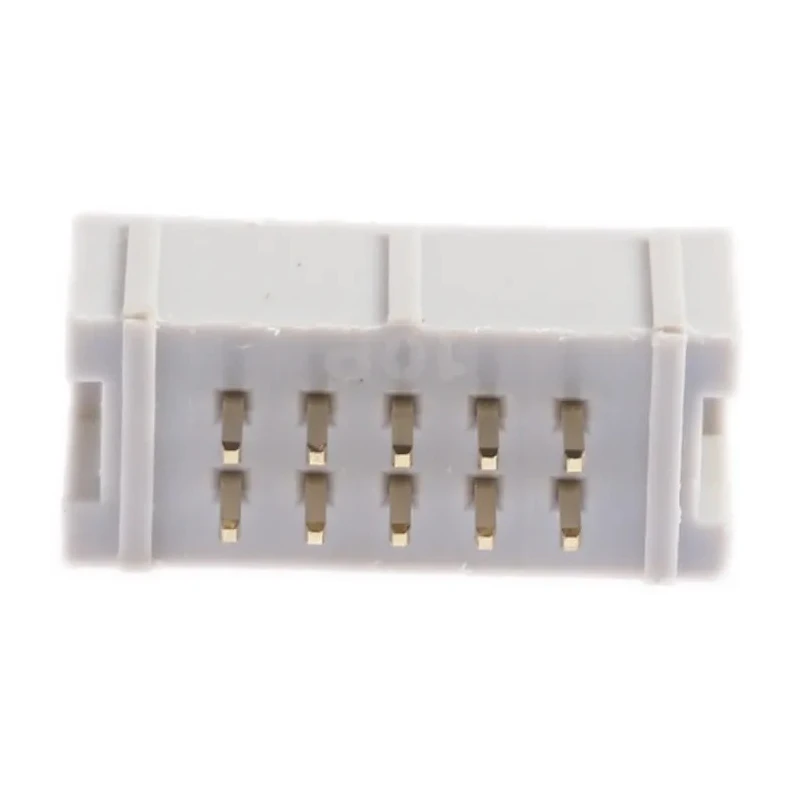

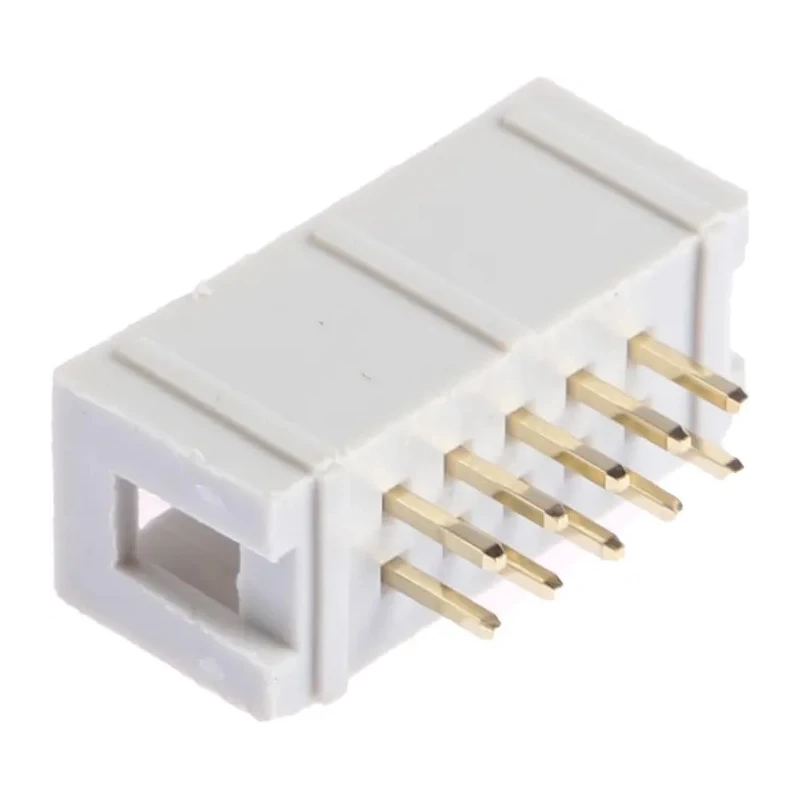

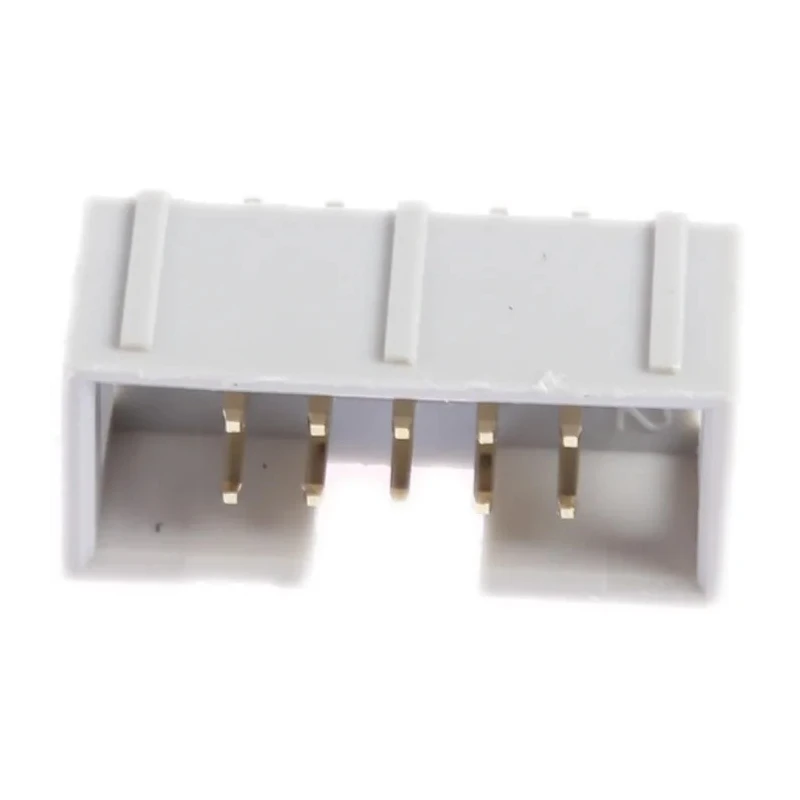

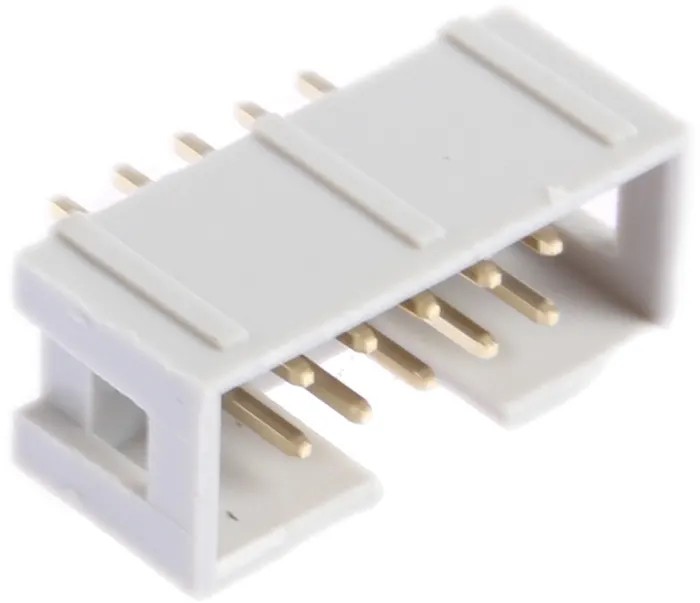

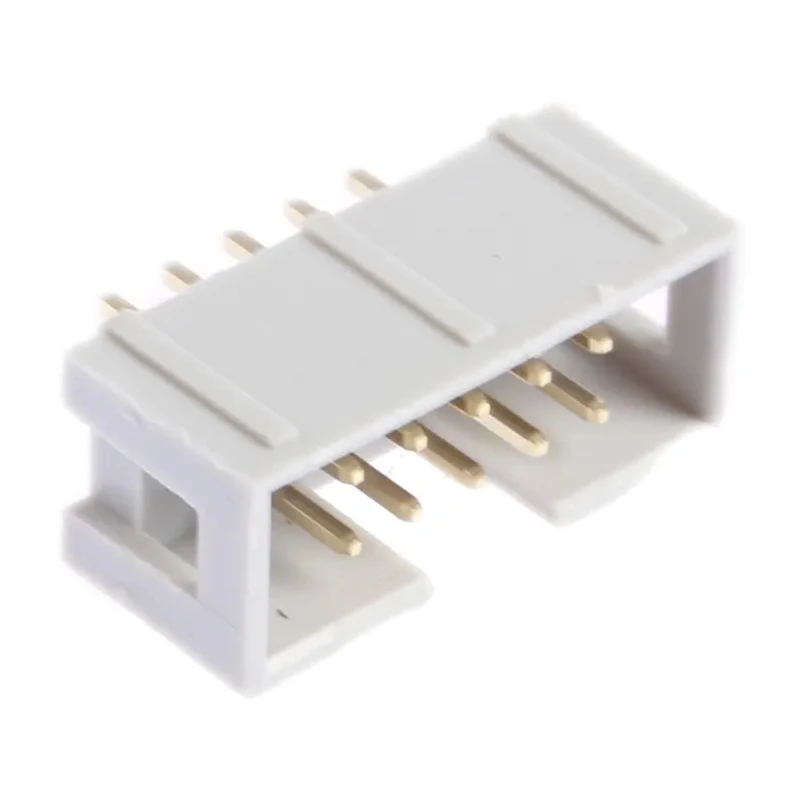

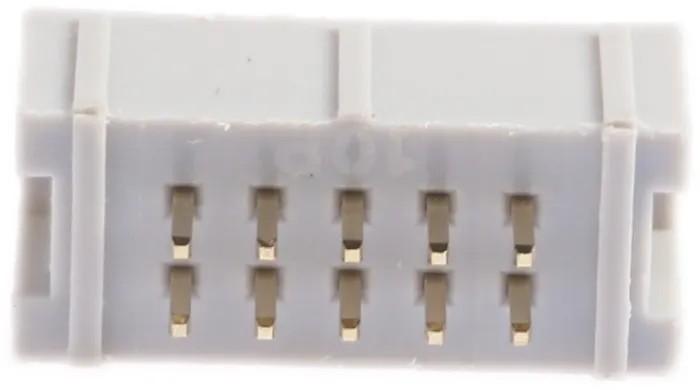

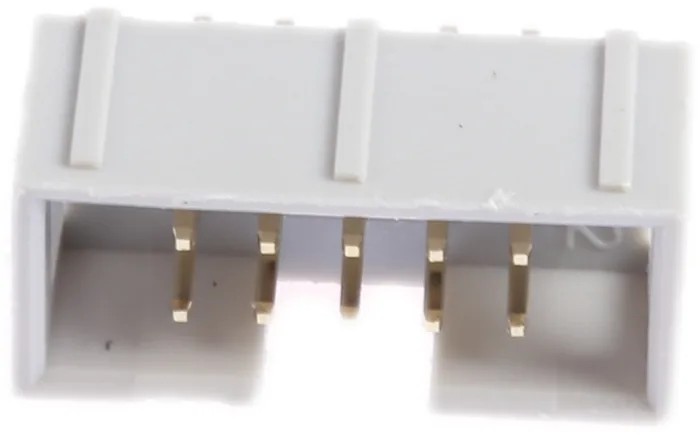

RS PRO 10-Way IDC Connector Male for Through Hole Mount, 2 Row, Gold-Plated Contacts, 2.54 mm Pitch 625-7252
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 625-7252 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector,rectangular,box plug header,straight,PCB termination,10 wayBrand | NEUTRAL |
| Molex, 52808 1 mm Pitch 26 Way Straight Female FPC Connector, SolderBrand | Molex |
Key Features
- The connector has 10 gold-plated contacts arranged in 2 rows for signal integrity.
- Designed for through hole mounting on 1.6 mm thick printed circuit boards.
- Operating temperature ranges from -45°C up to 105°C for versatility in harsh environments.
- With a pitch of 2.54 mm, it suits common PCB designs and wiring arrangements.
- Current rating is 1 ampere, while voltage rating reaches 500 volts for safe electrical performance.
- The housing is made of durable polybutylene terephthalate with high insulation resistance.
- Sharp contact points allow insulation displacement connection without wire stripping.
- Gold plating ensures low contact resistance of 20 milliohms at 100 mA DC.
Product Description
RS PRO 625-7252 IDC Connector Male is a high-quality 10-way, 2-row plug designed for through hole mounting. It supports reliable electrical connections in industrial, electronics manufacturing, computing equipment, and control panel applications.
The plug’s contacts are gold-plated copper, reducing resistance and ensuring durable conductivity. Its polybutylene terephthalate housing offers excellent insulation, mechanical strength, and heat resistance between -45°C and 105°C.
The connector facilitates fast assembly and secure cable connection with the insulation displacement contact (IDC) termination type requiring no wire stripping. Standard pitch of 2.54 mm and current rating of 1 A make it suitable for a variety of electronic designs.
The 10-way configuration in 2 rows optimizes space utilization on PCBs. Gold-plated contacts maintain contact resistance down to 20 mΩ at DC 100 mA. Robust housing withstands thermal and mechanical stress while providing 500 V insulation resistance.
Solder spill connections fit standard 1.6-mm thick printed circuit boards. Compatible with industrial control, computing, and instrumentation equipment. This RS PRO IDC connector meets industry standards and is ideal for applications requiring quick, reliable cable to PCB connections.
Explore further RS PRO connectors and IDC Connector solutions in the electronics category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating for this IDC connector is 1 ampere.
The housing is made of polybutylene terephthalate, and the contacts are made of copper with gold plating.
It operates within a temperature range of -45°C to 105°C.
This connector is designed for through hole mounting on printed circuit boards that are 1.6 mm thick.
The pitch of the contacts is 2.54 mm.
This model features 10 contacts arranged in 2 rows.
It uses insulation displacement contact (IDC) termination, which does not require wire stripping.
The gold-plated contacts maintain a contact resistance of 20 milliohms at 100 mA DC.
It is suitable for applications in industrial control, computing equipment, and control panels.
The connector is manufactured in Taiwan.
The orientation of this connector is straight.
