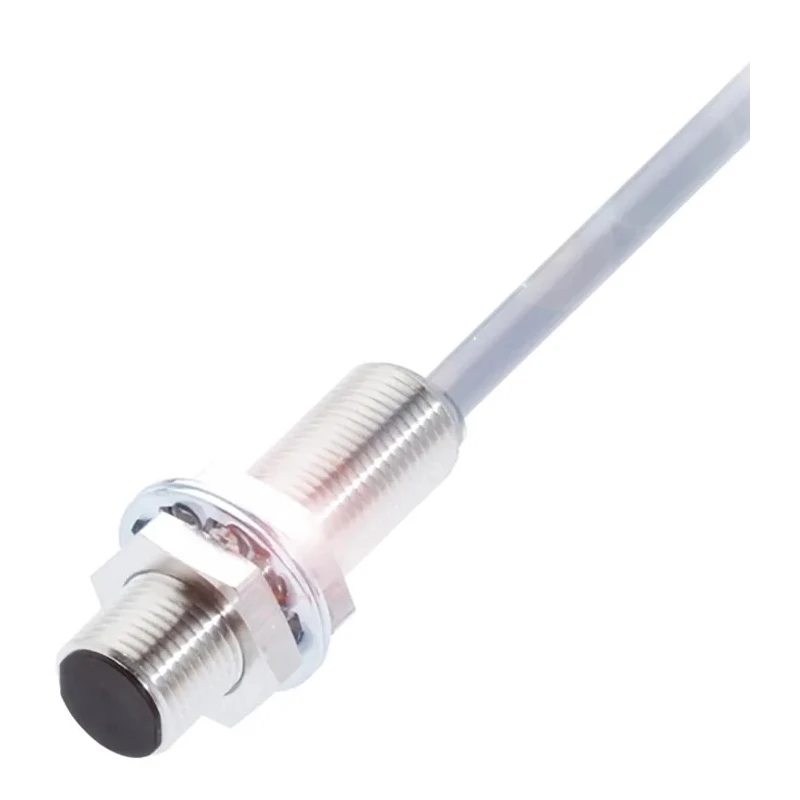

BALLUFF Threaded Barrel Inductive Proximity Sensor M12 x 1 2-Wire 36V 3 mm Detection Brass Housing BES M12MG-USC30B-BV03
Specifications
| Country of Origin | China |
|---|---|
| Brand | BALLUFF |
| Length | 43mm |
| Model | BES M12MG-USC30B-BV03 |
| Depth | 43mm |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | 2-Wire |
| Maximum Operating Temperature | 70°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.3kHz |
| Standards/Approvals | CE, cULus, EAC, IEC 60947-5-2 |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 3mm |
Key Features
- This sensor features a threaded barrel body style with an M12 x 1 thread size.
- The sensor operates at a maximum supply voltage of 36 V dc with a 2-wire output type.
- It detects polybutylene terephthalate materials up to a maximum distance of 3 mm.
- The housing is constructed from durable brass material to ensure longevity and reliability.
- The device is IP67 rated for protection against dust and water ingress in harsh environments.
- Operating temperature range is from -25°C up to 70°C, supporting wide industrial conditions.
- The sensor supports a maximum switching frequency of 1.3 kHz and switching current of 100 mA.
- It is shielded for improved signal integrity and complies with CE, cULus, EAC, and IEC 60947-5-2 standards.
Product Description
The BALLUFF BES M12MG-USC30B-BV03 is an industrial-grade threaded barrel inductive proximity sensor designed for reliable metal detection in diverse automation environments. It features an M12 x 1 thread size and brass housing to withstand demanding conditions.
Operating at a maximum DC voltage of 36 V with a 2-wire connection, this sensor offers precise detection of polybutylene terephthalate materials up to 3 mm distance. Its IP67 rating ensures robust protection against dust and water ingress, suitable for harsh industrial environments.
The sensor is equipped with shielded output to reduce interference and supports a switching frequency up to 1.3 kHz, making it ideal for demanding control applications. It has an operating temperature range from -25°C to 70°C, broadening its usability across varying climate conditions.
Installation is straightforward with its cable terminal type and flush mounting style supporting secure and easy integration into machinery and systems. The device complies with international standards CE, cULus, EAC, and IEC 60947-5-2, ensuring safety and operational reliability.
This sensor features a threaded barrel body style with an M12 x 1 thread size. The sensor operates at a maximum supply voltage of 36 V dc with a 2-wire output type. It detects polybutylene terephthalate materials up to a maximum distance of 3 mm.
The housing is constructed from durable brass material to ensure longevity and reliability. The device is IP67 rated for protection against dust and water ingress in harsh environments. Operating temperature range is from -25°C up to 70°C, supporting wide industrial conditions.
The sensor supports a maximum switching frequency of 1.3 kHz and switching current of 100 mA. It is shielded for improved signal integrity and complies with CE, cULus, EAC, and IEC 60947-5-2 standards. The terminal connection uses a cable for easy installation with flush mounting type.
The product is made in China and is supplied new for immediate use in automation and control systems.
This Inductive Proximity Sensor is well suited for industrial, automation, manufacturing, and process control applications requiring precise metal detection. It offers durability, compliance, and ease of installation supporting demanding tasks in factory and commercial environments.
Explore EnvMart’s comprehensive range of sensors and automation components for tailored solutions ensuring efficiency and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 3 mm for polybutylene terephthalate materials.
It operates at a maximum supply voltage of 36 V DC.
This sensor features a 2-wire output type.
The sensor is rated IP67, providing protection against dust and water ingress.
The operating temperature range is from -25°C to 70°C.
It supports a maximum switching frequency of 1.3 kHz.
This model is designed to detect polybutylene terephthalate materials.
The sensor has a length and depth of 43 mm, and a width of 12 mm.
The housing is constructed from brass material.
It features a flush mounting style for easy installation.
It complies with CE, cULus, EAC, and IEC 60947-5-2 standards.
The terminal connection uses a cable type for installation.
