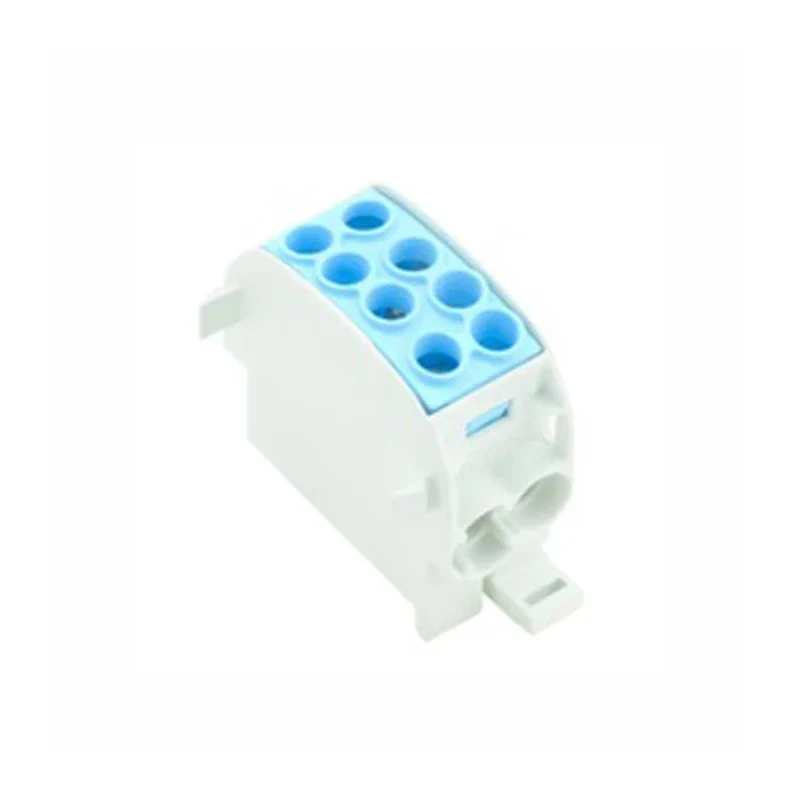

Weidmüller 2 Way Distribution Block, 1 kV AC, 1 kV DC, 202A Current, Blue, Model 1561640000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller 2 Way Distribution Block, 1 kV AC, 1 kV DC, 202A Current, Blue, Model 1561640000

Name: Weidmüller 2 Way Distribution Block, 1 kV AC, 1 kV DC, 202A Current, Blue, Model 1561640000
Brand: Weidmuller
SKU: 301669
Price: 37.06 USD
Availability: InStock



Category Distribution Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	1, 1kV ac
Brand	Weidmüller
Colour	Blue
Current	202A
Height	55.4mm
Length	22.2mm
Number Of Ways	2
Width	49.3mm
Housing Material	Wemid
Series	W
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-50°C
Termination Type - Line Side	Screw
Wire Size - Line Side	12 to 2 AWG

Key Features

Designed for use at voltages up to 1 kV AC and 1 kV DC.
Equipped with screw-type terminations on both line and load sides for secure connections.
Manufactured with Wemid housing material ensuring durability and safety.
Operates reliably within temperatures ranging from -50°C to 130°C.
Features blue color coding for easy identification in electrical panels.
Constructed with 10 mm electrolytic copper current bars for high conductivity and reliability.

Product Description

Weidmüller 1561640000 2 Way Distribution Block is engineered for efficient and safe electrical power distribution in industrial and commercial applications. Rated for 202A current and capable of handling voltages up to 1 kV AC and 1 kV DC, this distribution block ensures robust performance and long-term reliability.

The block features Wemid housing material, which offers excellent mechanical strength and flame retardance. Its screw-type terminations on both line and load sides provide secure and maintenance-friendly connections, compatible with wire sizes ranging from 12 to 2 AWG.

With compact physical dimensions (Height: 55.4 mm, Width: 49.3 mm, Length: 22.2 mm), this device mounts neatly on symmetric 'Top Hat' DIN rails per BS5584:1978 and EN 50022, making it ideal for panel installations.

It is designed to operate reliably in harsh environments with an operating temperature range from -50°C to 130°C. The distribution block's internal current bars are made from 10 mm electrolytic copper, exceeding nominal current ratings to ensure safe and consistent electrical conductivity.

The product is blue in color for easy visual identification and is free of hazardous substances such as cadmium and halogens, complying with UL94V-0 standards for self-extinguishing materials.

Voltage rating: 1 kV AC, 1 kV DC. Current rating: 202A. Wire size compatibility: 12 to 2 AWG. Termination type: Screw connections on line and load sides. Operating temperature: -50°C to 130°C. Housing: Wemid material, self-extinguishing to UL94V-0.

Mounting: Suitable for 'Top Hat' DIN rails. Color: Blue.

This distribution block is suitable for electrical power distribution in various industries including manufacturing, construction, HVAC, and automation systems. Its W series (WPD) design ensures safety and performance, making it a dependable component for power connectors and electrical panels.
