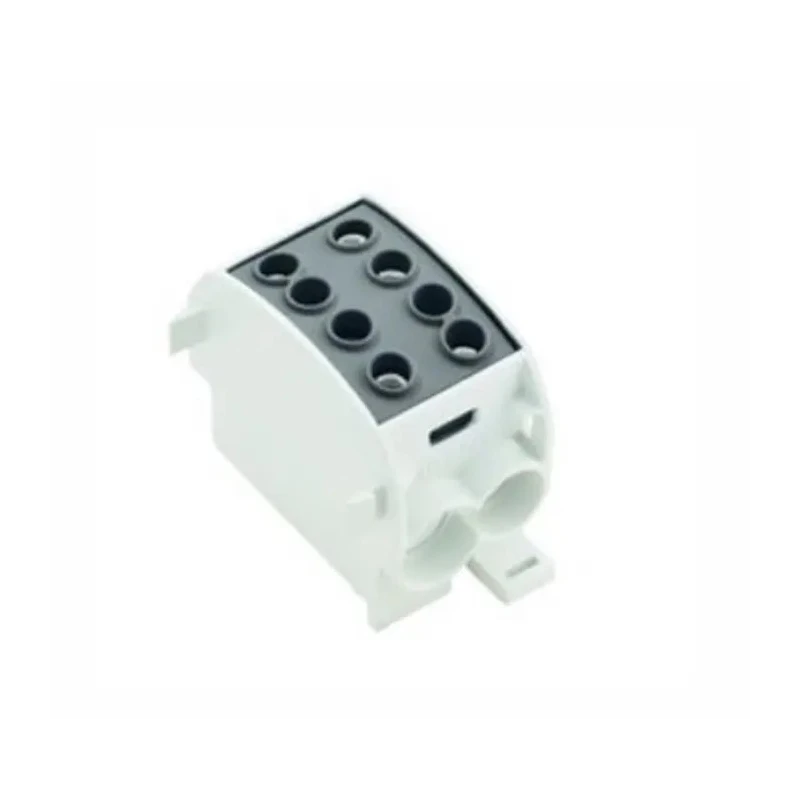

Weidmüller 2 Way Distribution Block 1 kV AC 1 kV DC 300A Black 1561830000

Weidmüller 1561830000 2 Way Distribution Block is engineered to safely and effectively distribute electrical current up to 300A with operating voltages of 1 kV AC and 1 kV DC. Its Wemid housing provides high insulation and mechanical strength, delivering outstanding safety performance in demanding industrial and electronic environments.

This distribution block supports wire sizes up to 8 AWG on the line side and features screw-type terminations on both line and load sides, facilitating reliable and secure electrical connections. The block operates efficiently across a temperature range from -50°C minimum to 130°C maximum, ensuring stable performance in various climatic conditions.

Measuring 53.1mm in width, 63mm in height, and 32.9mm in length, it fits perfectly for DIN Rail mounting applications, compliant with the BS5584:1978 and EN 50022 standards for symmetrical Top Hat rail mountings. The current bars are crafted from 10 mm electrolytic copper, which supports sufficient current loading surpassing the nominal rating, enhancing the block’s electrical robustness and reliability.

The black color casing not only enhances corrosion resistance but also aids in easy identification within electrical panels. The distribution block is manufactured in Germany, assuring premium quality and rigorous manufacturing standards.

Ideal for industrial, commercial, and electronic component applications, this distribution block provides a durable and safe solution for power distribution challenges involving high current and voltage demands.

Constructed with Wemid housing material for enhanced safety and durability. Supports wire size of 8 AWG ensuring compatibility for various electrical installations. Screw termination type on both line and load sides for secure connections.

Operates reliably within -50°C to 130°C temperature range. Compact size with dimensions of 53.1mm width, 63mm height, and 32.9mm length. Designed for mounting on Top Hat DIN Rail adhering to BS5584 and EN 50022 standards.

Current bars made from 10 mm electrolytic copper to support current ratings beyond nominal values. Black color finish provides visual identification and corrosion resistance. Manufactured in Germany ensuring high quality and performance standards.
