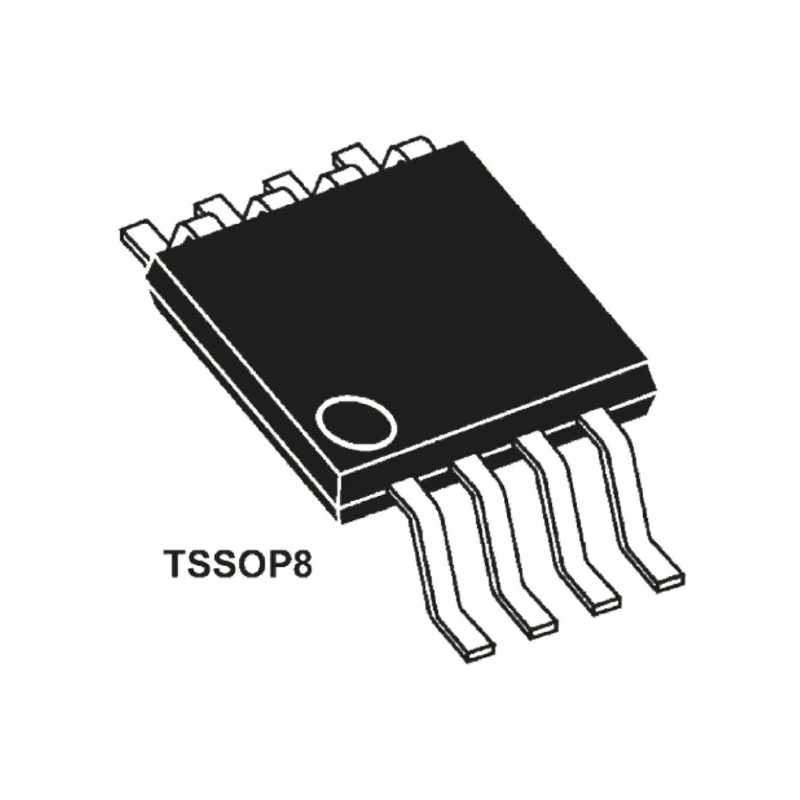

STMicroelectronics 1 kB Serial EEPROM, 200 ns 8-Pin TSSOP Serial-Microwire M93C46-WDW6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | M93C46-WDW6TP |
| Width | 6.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Memory size | 1kB |
| Interface Type | Serial-Microwire |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7594Brand: STMicroelectronicsManufacturers Part No.: M93C46-WDW6TP |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 1mA |
| Maximum Clock Frequency | 2MHz |
| Organisation | 128 x 8 bit |
| Number of Bits per Word | 16 |
| Maximum Random Access Time | 200ns |
| Number of Words | 128 |
Key Features
- Memory size of 1 kB suitable for system data retention.
- Utilizes Serial-Microwire interface for efficient communication.
- Compact 8-pin TSSOP surface mount package ensures minimal PCB footprint.
- Operates at a maximum clock frequency of 2 MHz for fast access.
- Data retention guaranteed for 200 years for long-term reliability.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Supply current typically 1 mA to conserve power in devices.
- Automotive standard AEC-Q100 certified ensuring automotive grade quality.
Product Description
STMicroelectronics M93C46-WDW6TP is a 1 kB Serial EEPROM featuring a 200 ns maximum random access time and an 8-Pin TSSOP surface mount package. Designed with the Serial-Microwire interface, this EEPROM provides efficient and reliable non-volatile memory storage with an organization of 128 x 8 bits and 16 bits per word. It supports a supply voltage range from 2.5 V to 5.5 V, making it compatible with diverse electronic systems.
Built to operate within a temperature range of -40°C to 85°C and meeting the automotive standard AEC-Q100, the device is suitable for harsh industrial and automotive environments. With a maximum clock frequency of 2 MHz, it enables fast data access assigned for embedded and industrial control applications. The very low supply current of 1 mA ensures minimal power consumption in battery-operated devices.
The EEPROM guarantees data retention for 200 years, ensuring long-term storage reliability for critical data. Its compact 8-pin TSSOP package (dimensions: 6.4 mm width, 3.1 mm length, and 1.2 mm height) provides a small PCB footprint ideal for space-constrained designs. This component is widely used in applications such as automotive electronics, industrial controllers, communication systems, and consumer electronics requiring small-capacity programmable memory.
Memory size of 1 kB suitable for system data retention. Utilizes Serial-Microwire interface for efficient communication. Compact 8-pin TSSOP surface mount package ensures minimal PCB footprint. Operates at a maximum clock frequency of 2 MHz for fast access.
Voltage supply range from 2.5 V to 5.5 V supports diverse power systems. Data retention guaranteed for 200 years for long-term reliability. Operating temperature range from -40°C to 85°C for industrial applications. Supply current typically 1 mA to conserve power in devices.
Automotive standard AEC-Q100 certified ensuring automotive grade quality. Ideal for embedded systems, industrial controls, and automotive electronics. Explore comprehensive electronic components and semiconductors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EEPROM has a memory size of 1 kB, organized as 128 x 8 bits.
It operates at a maximum clock frequency of 2 MHz, allowing for fast data access.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial applications.
This model utilizes the Serial-Microwire interface for efficient communication.
It supports a supply voltage range from 2.5 V to 5.5 V, making it compatible with various power systems.
The typical supply current is 1 mA, which helps conserve power in devices.
The dimensions of the package are 6.4 mm in width, 3.1 mm in length, and 1.2 mm in height.
Data retention is guaranteed for 200 years, ensuring long-term reliability for stored data.
It is certified to meet the automotive standard AEC-Q100, ensuring automotive grade quality.
The maximum random access time is 200 ns, allowing for quick data retrieval.
It supports 16 bits per word, with a total of 128 words available.
This model features a surface mount design, suitable for compact PCB layouts.
