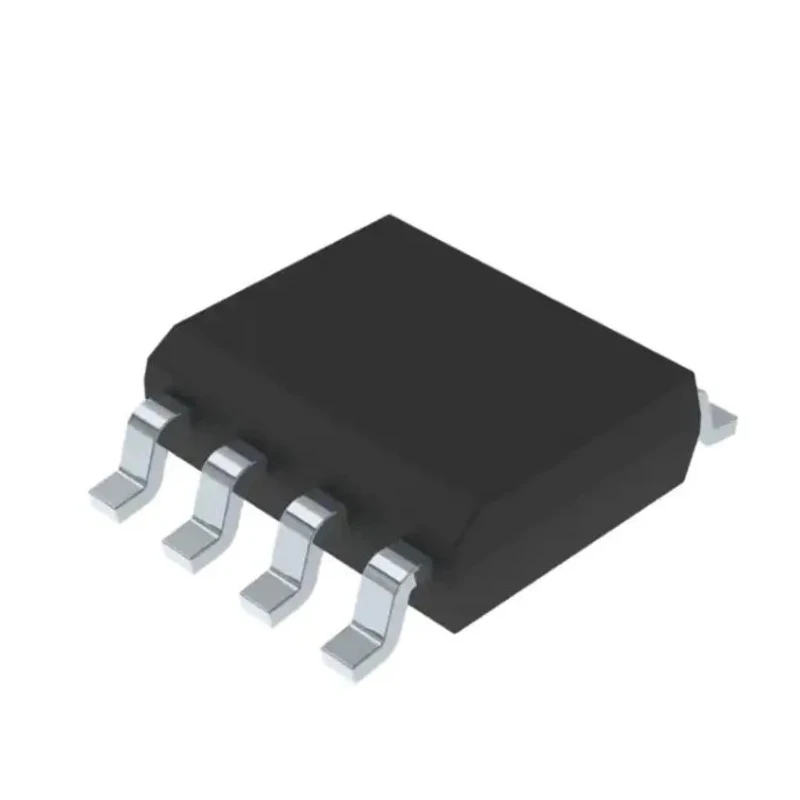

STMicroelectronics 1 kB Serial EEPROM, 900 ns Access Time, 8-Pin SO-8 Serial-I2C M24C01-RMN6TP

STMicroelectronics M24C01-RMN6TP is a high-performance 1 kB serial EEPROM designed for industrial, automotive, and commercial electronics applications. This device offers a compact 8-pin SO-8 surface mount package and I2C-compatible serial interface, allowing easy integration into modern electronic circuits.

With a memory organization of 128 x 8 bits, the chip provides efficient data storage with fast access times up to 900 ns. It supports operation at supply voltages between 1.8 V and 5.5 V, allowing usage in a wide range of power environments. The maximum clock frequency of 400 kHz supports rapid communication on the I2C bus.

The EEPROM is suitable for harsh environments with operation guaranteed between -40 °C and 85 °C, making it ideal for automotive and industrial control systems. It complies with the AEC-Q100 automotive standard, ensuring reliability in safety-critical applications.

Featuring byte and page write functionalities within 5 ms, this EEPROM allows fast memory updates. It also includes enhanced ESD and latch-up protection circuits, preserving device integrity during electrostatic discharge events.

The data retention time of 200 years and endurance of over 4 million write cycles guarantee longevity and durability of stored data. Its small 550 μm height further supports compact device assemblies.

Memory capacity of 1 kB organized as 128 x 8 bits. Serial I2C interface compatible with 100 kHz and 400 kHz bus modes. Operating voltage range from 1.8 V to 5.5 V. Operating temperature range from -40 °C to +85 °C for rugged applications.

8-pin SO-8 surface mount package suited for space-saving designs. Byte write and page write operations completed within 5 milliseconds. Data retention of 200 years ensures reliability over device lifetime. Automotive standard AEC-Q100 certified for use in automotive electronics.

ESD and latch-up protection for enhanced durability.

This EEPROM is widely used in embedded systems, automotive electronics, industrial controllers, and consumer electronics for non-volatile memory storage. When sourcing semiconductor memory chips, consider the M24C01-RMN6TP for robust and efficient data storage solutions.
