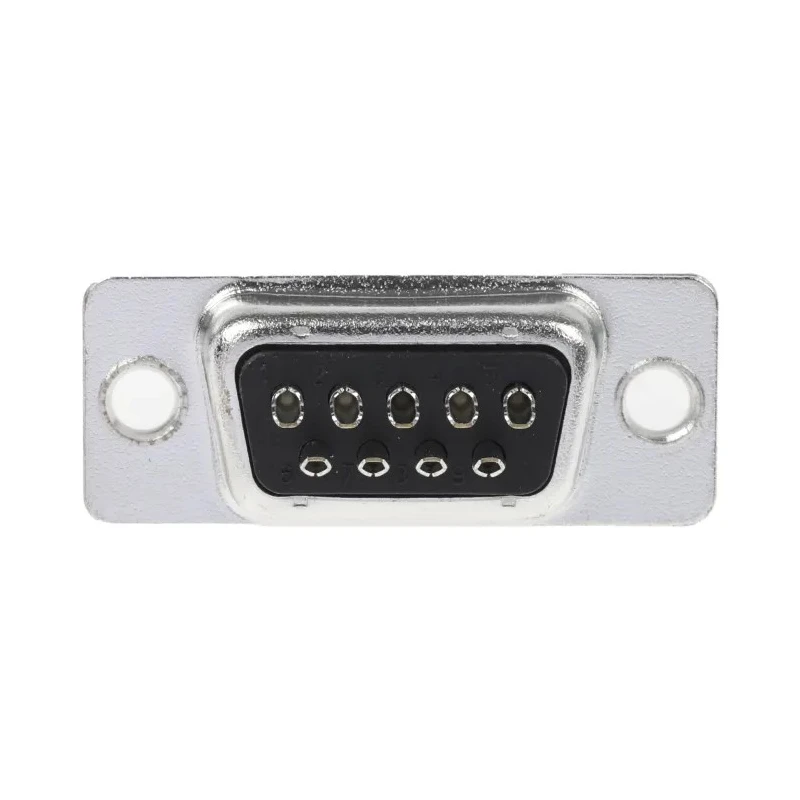

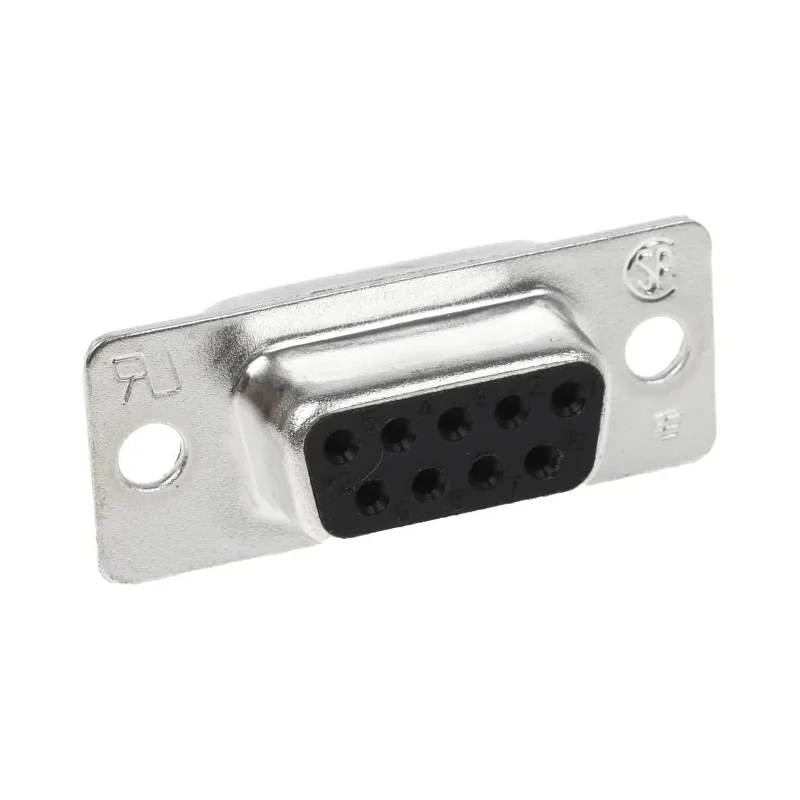

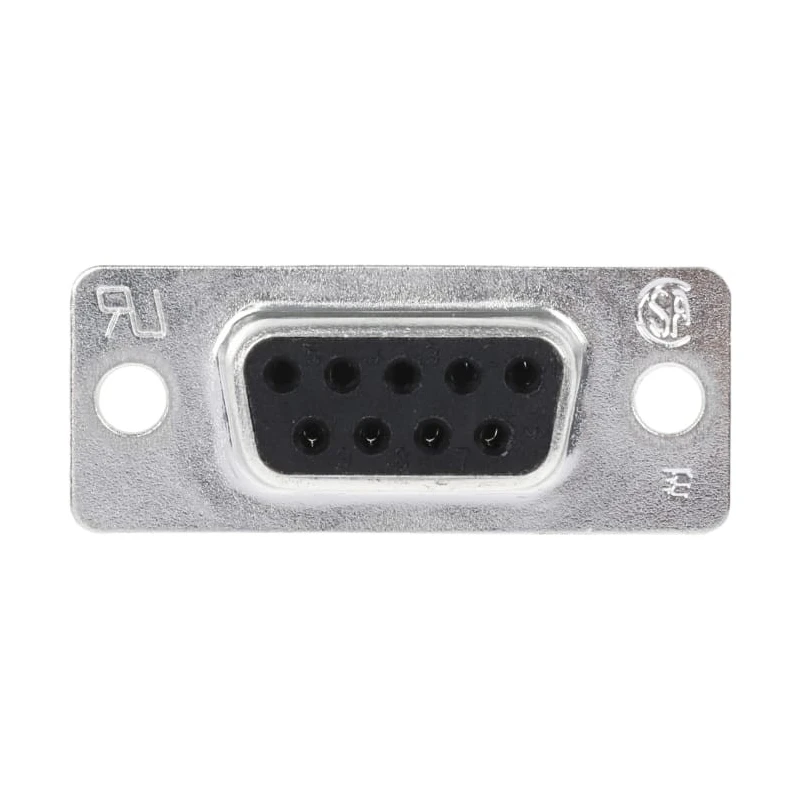

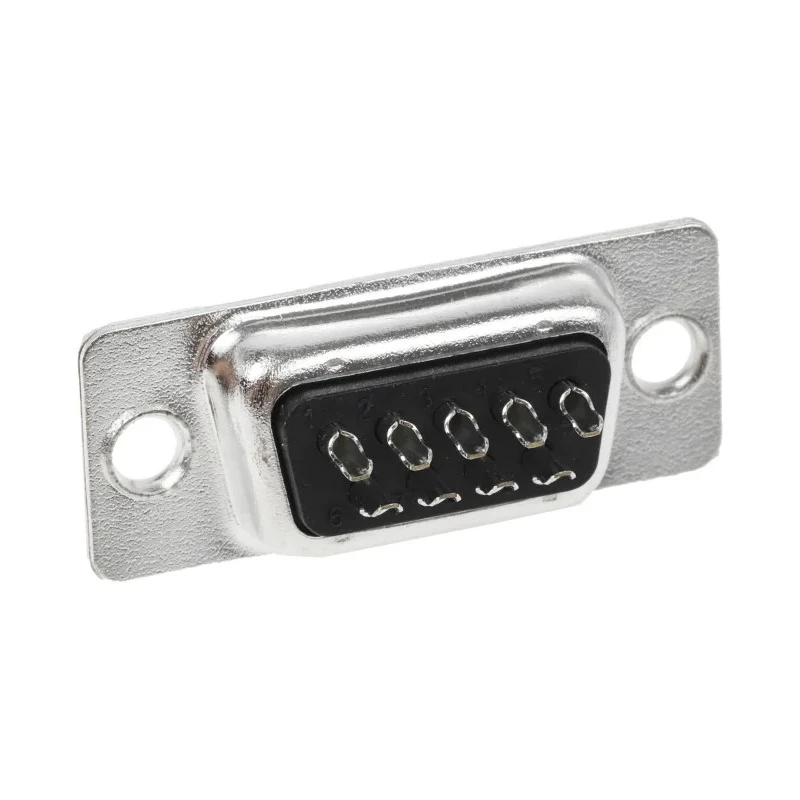

TE Connectivity AMPLIMITE HD-20 D-Sub Connector, 9 Contacts, Straight, Panel Mount, Female, 2.77mm Pitch, Steel 5-747905-2

TE Connectivity model 5-747905-2 is part of the AMPLIMITE HD-20 series, designed for efficient and reliable connections in electronic, industrial, and communication equipment. This D-Sub connector provides a panel-mountable, straight orientation interface with 9 female contacts, offering higher density for space-constrained deployments.

The connector body features a robust steel shell with tin plating and complete EMI shielding, ensuring secure mounting and reducing the risk of electrical interference. Contacts are duplex plated with gold over nickel, fabricated from phosphor bronze for optimal conductivity and long-term reliability. The enclosure includes two-piece 94V-0 rated black thermoplastic inserts, delivering resilience and insulation.

The design incorporates a 2.77 mm pitch, facilitating precise and stable mating with compatible male connectors in communication and computing hardware. Its solder termination supports straightforward installation onto PCBs and cables. The connector is suitable for environments with minimum operating temperatures as low as -55°C and maximum up to 105°C, making it ideal for both laboratory and field uses.

Supporting up to 250V and 3A, the AMPLIMITE HD-20 series is commonly applied in data, signal, and power transmission within industrial control equipment. High-density features allow for more connections in smaller spaces, reducing overall system footprint. Panel mounting offers a stable and secure fit, maintaining connection integrity over repeated cycles.

Key features include resistance to ESD and full EMI shielding provisions, with crimped shield terminations for low impedance and strain relief. The versatility of this D-Sub connector extends to use in communications, instrumentation, automation, and manufacturing setups. Compatible with HDE, HDF, HDP, and HD-20 board mount series for flexible engineering solutions.

Offers panel mountable, straight female connection for easy integration. 9 contacts ensure high density connectivity in compact enclosures. Steel shell, tin plating, and EMI shielding for robust operation. Rated from -55°C to 105°C, suitable for diverse environments.

Supports solder termination for fast installation on cables and PCBs. Ideal for industrial, laboratory, and commercial communication applications. Part of TE Connectivity’s AMPLIMITE HD-20 series, engineered for performance and reliability.
