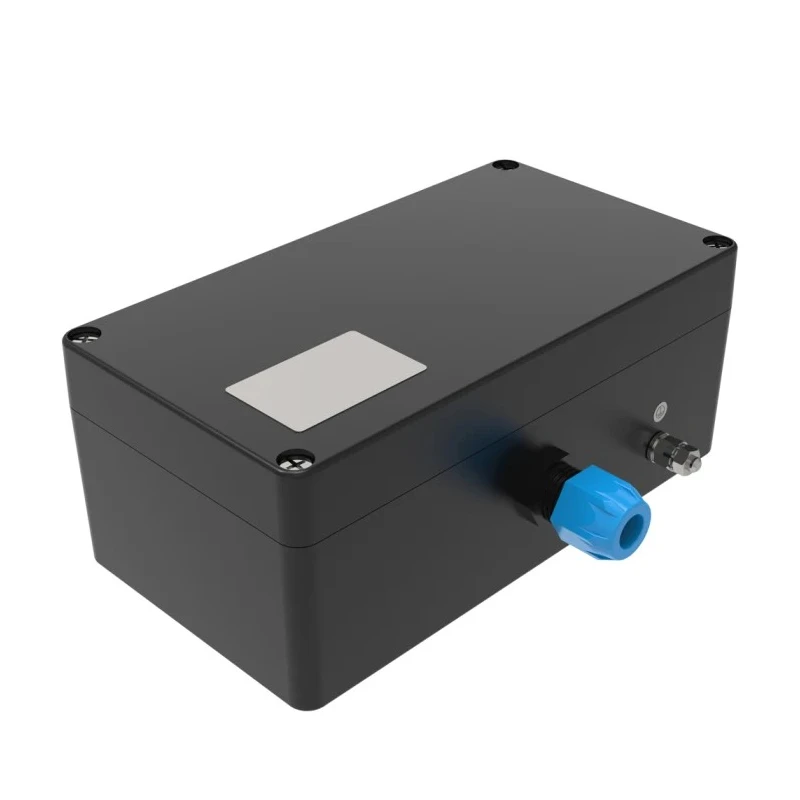

Rose Ex Polyester Series Black Fibreglass Reinforced Polyester Junction Box IP66 20 Terminals ATEX 91mm x 120mm x 161222098

Rose 161222098 Ex Polyester Series black fibreglass reinforced polyester junction box features an industrial-grade enclosure designed for electrical connections in demanding and potentially explosive environments. It is fabricated from robust glass fibre reinforced polyester material, providing high impact resistance and durability. The junction box measures 91mm in length, 120mm in width, and 90mm in height, offering ample space for housing multiple terminals securely.

The enclosure is certified ATEX compliant, making it suitable for hazardous areas where explosion protection is mandatory. With an IP66 rating, the box provides complete protection against dust ingress and powerful water jets, ensuring reliable operation in harsh indoor or outdoor conditions. Its black RAL 9011 color finish enhances corrosion resistance and aesthetic appeal.

Designed for industrial applications such as chemical processing, paint spraying, and food production, this junction box offers secure cable management with 20 terminals and 2 ways. Cable entry points are sized M20 x 1.5 with 7.1mm diameter to accommodate various wiring setups. The lid is secured using stainless steel screws to prevent tampering.

Additional features include UL94 V-0 flame retardant classification, surface resistance to IEC 60093 standards, and halogen-free composition to minimize smoke toxicity in the event of fire. Operating temperature ranges from -55°C to +135°C accommodate extreme climate conditions. The junction box weighs just 1.06 kg, ensuring easy installation without excessive mounting strain.

Suitable for indoor and outdoor usage across chemical, food, paint, and explosive environments, Rose's Ex Polyester Series junction box offers exceptional safety, durability, and ease of integration into industrial electrical systems.

Constructed from fibreglass reinforced thermoset polyester with added graphite. ATEX explosion protection certified enclosure, component certified as empty and preassembled with Ex e or Ex ia options. IP66 rated enclosure compliant to EN 60529 and impact resistant to 7 Joule per EN 60079-0.

Self-extinguishing UL 94 V-0 rating ensures flame suppression within 10 seconds. Surface resistant to IEC 60093 testing, halogen-free material construction. Wide operating temperature ranges compatible with T4-T6 temperature classes.

Black coloration (RAL 9011), suitable for various climate zones both indoors and outdoors. Stainless steel lid screws effectively seal lid and base for enhanced ingress protection. Approved for use in all Ex areas requiring explosion protection.

Lightweight design (1.06 kg) for ease of mounting and handling. Explore more electrical enclosures and Junction Boxes on EnvMart for your industrial and hazardous environment needs.
