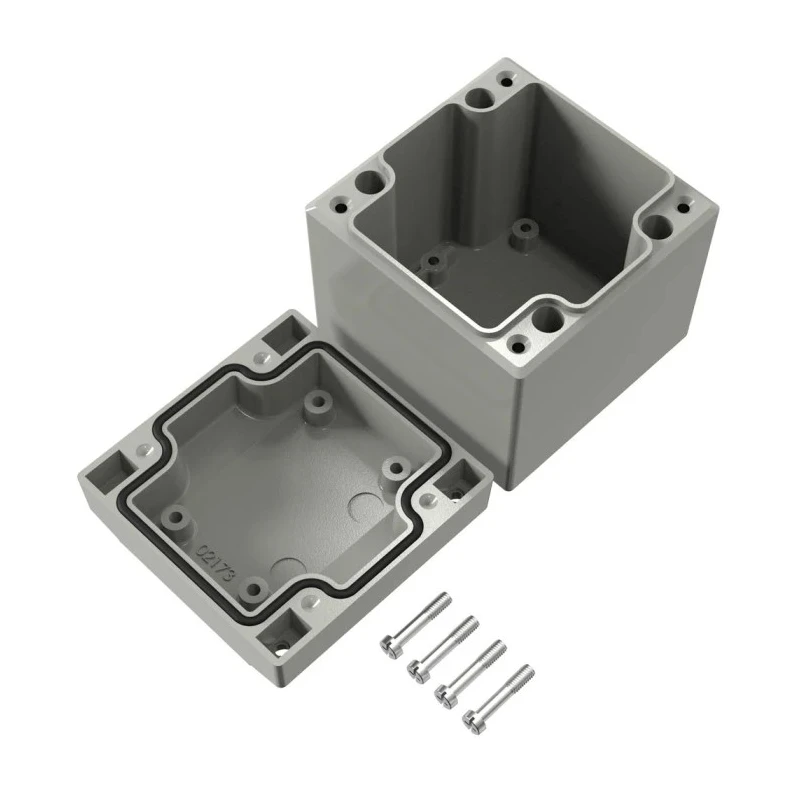

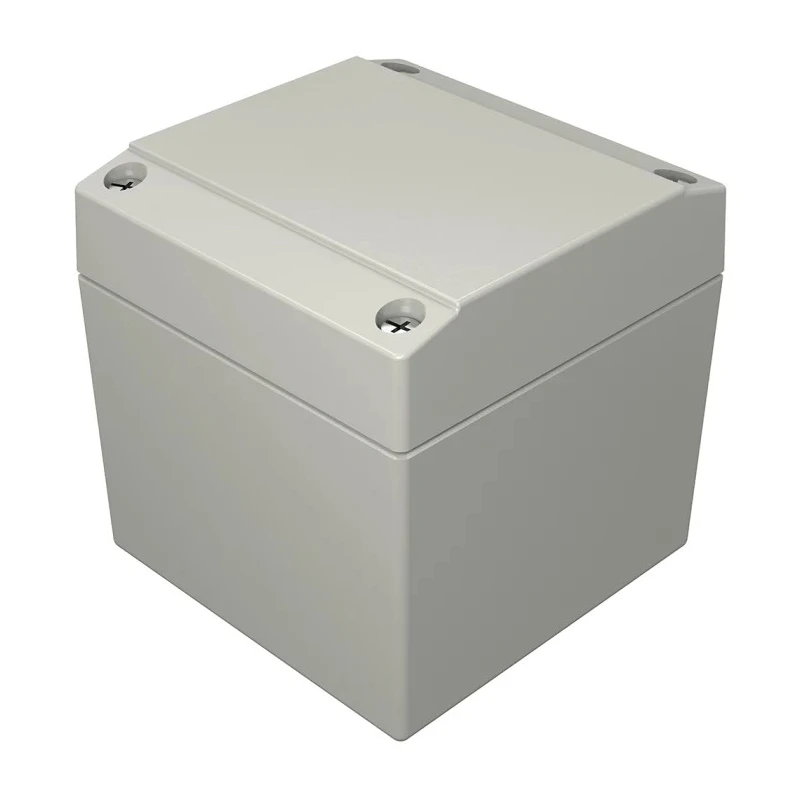

Rose Aluform Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 80 mm
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Gross Weight | 700g |
| Series | Aluform |
| External Width | 80mm |
| External Height | 80mm |
| Shielding | Unshielded |
| Hazardous Area Certification | UL, Maritime |
| Standards/Approvals | UL |
| External Length | 80mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
Key Features
- Constructed of durable die cast aluminium for corrosion and impact resistance.
- Features a grey coloured lid with captive stainless steel screws to prevent tampering.
- PU gasket seal ensures dustproof and water jet protection compliant with IP66 certification.
- Compact low-profile design ideal for installations in constrained spaces.
- Suitable for use in harsh environments from -40°C to +90°C.
- DIN rail mounting facilitates quick and tool-free installation.
- Unshielded enclosure designed for general purpose electrical equipment protection.
- Certified to UL and maritime hazardous area standards.
Product Description
Rose 040808080 Aluform Series die cast aluminium electrical enclosure measuring 80 mm in height, width, and length is engineered for robust protection in industrial applications. The grey lid is secured with corrosion-resistant captive stainless steel screws, enhancing security against unauthorized access. The enclosure utilizes a polyurethane gasket to achieve an IP66 ingress protection rating, ensuring dust tightness and resistance to powerful water jets as per international standards. The IK09 rating certified impact resistance safeguards internal components from mechanical shocks.
This enclosure operates reliably across a wide temperature range from -40°C to +90°C, accommodating varied environmental conditions. The compact 80 x 80 x 81 mm profile enables installation in tight spaces common in telecommunication, power generation, food packaging, and cable management industries.
The universal tongue and groove sealing system simplifies assembly and maintenance, while DIN rail mounting provides rapid, screwless installation. Compliance with UL and maritime hazardous area certifications attests to the enclosure’s safety and performance for specialized settings.
Weighing approximately 700 grams, the enclosure is lightweight yet durable due to its die cast aluminium construction. This combination of strength, protection, and compact form factor makes it an ideal general-purpose enclosure solution.
Durable die cast aluminium construction offers long-term corrosion resistance. IP66 rating protects against dust ingress and high-pressure water jets. Impact-resistant to IK09 standard for mechanical protection. Polyurethane gasket provides effective sealing against contaminants.
Compact size facilitates use in restricted installation areas. DIN rail mounting allows easy, tool-free installation. Certified to UL and maritime hazardous area requirements. Wide operational temperature range from -40°C to +90°C.
Lightweight design reduces mounting stress.
This Rose die cast aluminium enclosure is suitable for electrical equipment protection in industrial, telecommunications, manufacturing, and power sectors. It offers versatility, safety, and durability for general-purpose applications. Browse our comprehensive range of Electrical Enclosures on EnvMart to find the perfect match for your requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This enclosure has an IP66 ingress protection rating, ensuring it is dust-tight and resistant to powerful water jets.
It operates reliably across a wide temperature range from -40°C to +90°C, making it suitable for various environmental conditions.
The enclosure is constructed from die cast aluminium, providing corrosion resistance and durability.
The external dimensions of the enclosure are 80 mm in height, width, and length.
The grey lid is secured with captive stainless steel screws, which are corrosion-resistant to prevent tampering.
It features DIN rail mounting, allowing for quick and tool-free installation.
This unit weighs approximately 700 grams, making it lightweight yet durable.
It is certified to UL and maritime hazardous area standards, ensuring compliance for specialized settings.
It uses a polyurethane gasket that provides effective sealing against dust and water ingress.
Yes, the IP66 rating and robust construction make it suitable for use in harsh outdoor environments.
It is suitable for protecting electrical equipment in industrial, telecommunications, manufacturing, and power sectors.
The enclosure has an IK09 impact resistance rating, safeguarding internal components from mechanical shocks.
