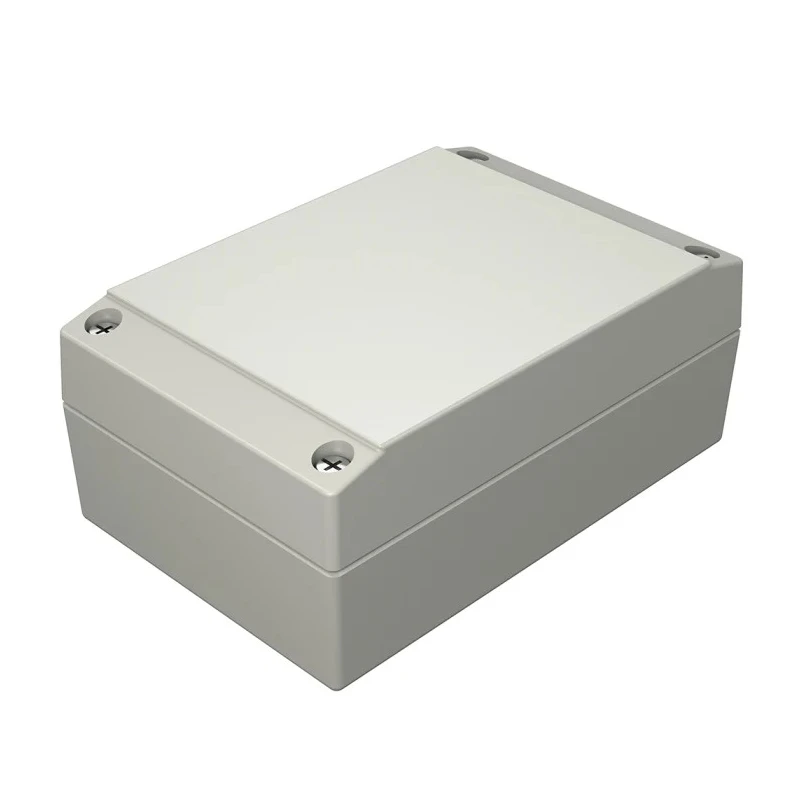

Rose Aluform Series Grey Lid Die Cast Aluminium Enclosure IP66 IK09 120 mm x 120 mm x 80 mm IP66
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Gross Weight | 426g |
| Series | Aluform |
| External Width | 80mm |
| External Height | 120mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | UL |
| External Length | 120mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- The enclosure is made from die cast aluminium for superior corrosion resistance and durability.
- It features a grey lid and grey colour body, completing a uniform appearance.
- Rated IP66, providing dust-tight protection and resistance against strong water jets.
- Meets IK09 impact protection standard ensuring robust mechanical strength.
- Contains a polyurethane gasket that is resistant to water, oil, and grease to maintain a secure seal.
- Equipped with captive stainless steel screws for tamper-resistant assembly.
- Includes four earthing screws at the base for grounding electrical installations.
- Wall thickness of 3 mm enhances durability and protection.
Product Description
Rose IP66 die cast aluminium enclosure (model IP66) with dimensions 120 mm length, 120 mm width, and 80 mm height is designed for industrial environments requiring durable and reliable protection of electrical and mechanical components.
Constructed from corrosion-resistant die cast aluminium, the enclosure offers robust resistance against impacts and harsh conditions. Its grey lid and body create a consistent and professional appearance.
The enclosure meets IP66 rating standards, ensuring it is completely dust-tight and capable of withstanding high-pressure water jets to protect sensitive internal components effectively. The IK09 rating certifies it withstands mechanical impacts with high resistance.

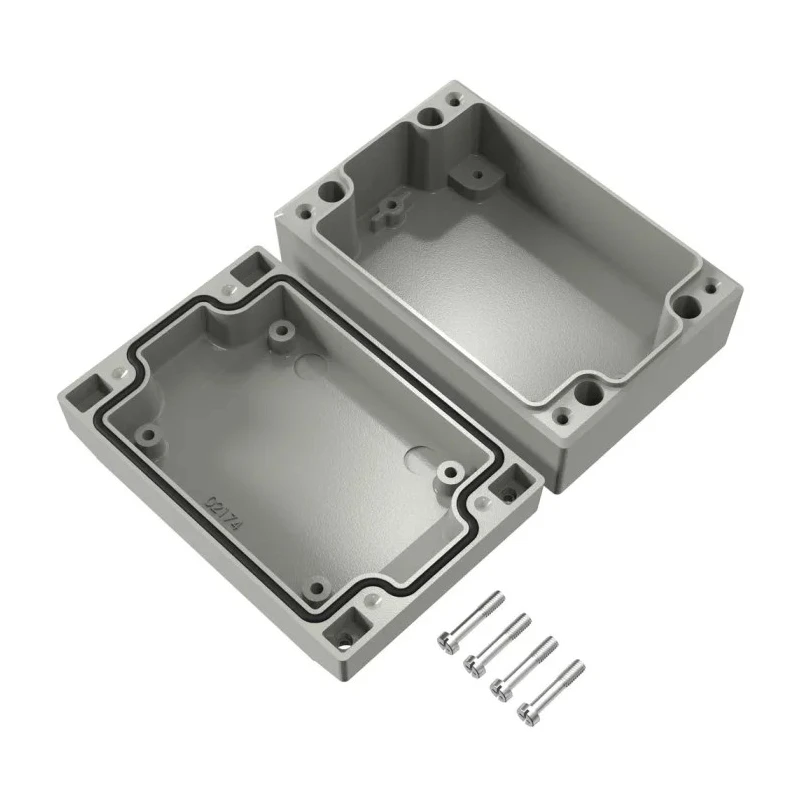

The polyurethane gasket seal is effective against water, oil, and grease, maintaining the integrity of the enclosure’s interior environment. Captive stainless steel screws secure the lid, reducing tampering and enhancing safety.
Four earthing screws at the base allow for proper grounding, essential in electrical installations to prevent electrical hazards. The walls are 3 mm thick for enhanced structural strength and durability.
This enclosure is suitable for various industrial sectors including power generation, telecommunications, data centers, construction, and cable management. Its wide operating temperature range (-60°C to +130°C) ensures reliable use even in extreme climates.
The enclosure is fabricated from die cast aluminium providing corrosion and impact resistance. It is designed for DIN rail mounting for ease of installation without specialized tools. Complies with standards DIN1725, DIN 40050, and DIN 50014 among others.
Ultra-durable polyurethane gasket maintains a weatherproof and grease-resistant seal. Lightweight at approximately 426 grams, minimizing stress on mounting structures. Features captive stainless steel screws for enhanced security.
Four earthing screws for electrical grounding capability. Uniform grey coloring for aesthetic and functional purposes. Rated IP66 and IK09 for industrial-grade protection against ingress and mechanical impact. Country of origin: Germany.
For more options in high-quality enclosures, browse Rose enclosures and related industrial electrical solutions at EnvMart.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 120 mm in length, 120 mm in width, and 80 mm in height.
It has an IP66 rating, which means it is completely dust-tight and can withstand high-pressure water jets.
The enclosure is constructed from die cast aluminium, providing corrosion resistance and durability.
This model has an IK09 rating, indicating it can withstand mechanical impacts.
The gross weight of the enclosure is approximately 426 grams.
It features a polyurethane gasket that is resistant to water, oil, and grease, ensuring a secure seal.
Yes, it includes four earthing screws at the base for proper grounding of electrical installations.
The enclosure is designed for DIN rail mounting, allowing for easy installation without specialized tools.
It complies with standards DIN1725, DIN 40050, and DIN 50014, among others.
The enclosure operates effectively within a temperature range of -60°C to +130°C.
The lid is secured with captive stainless steel screws, enhancing tamper resistance and safety.
It is suitable for various industrial sectors including power generation, telecommunications, data centers, construction, and cable management.
