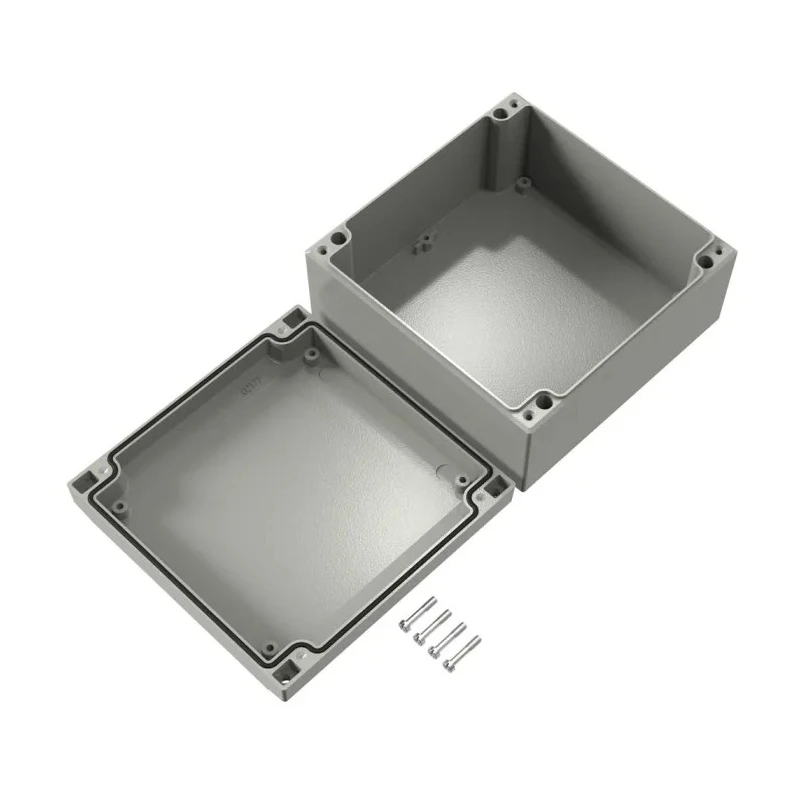

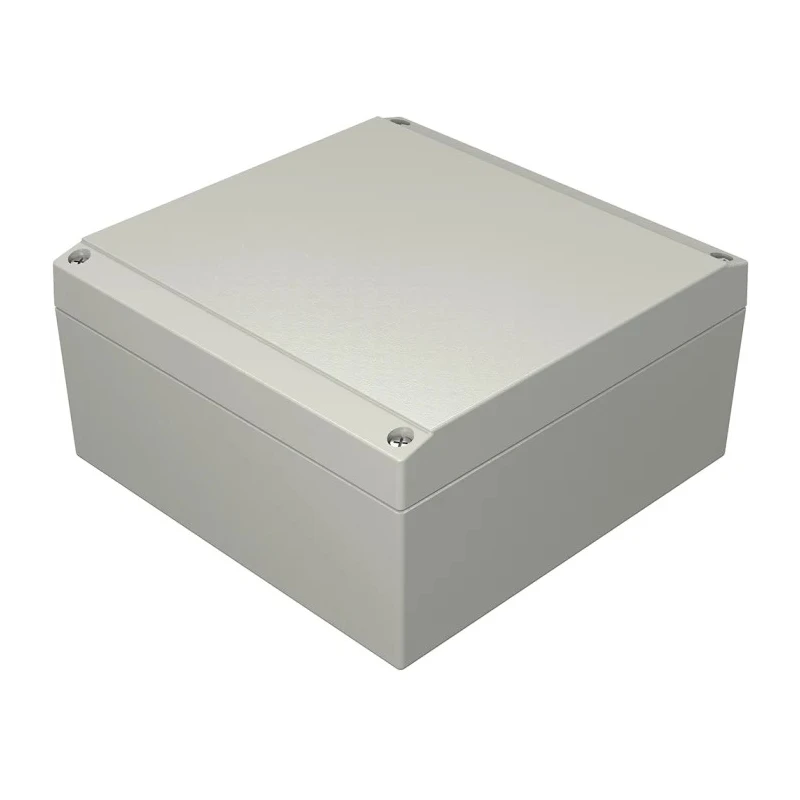

Rose Aluform Series Die Cast Aluminium Enclosure Grey Lid IP66 IK09 160mm x 160mm x 160mm IP66
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Colour | Grey |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Gross Weight | 1.1kg |
| Series | Aluform |
| External Width | 160mm |
| External Height | 160mm |
| Shielding | Unshielded |
| Hazardous Area Certification | UL, Maritime |
| Standards/Approvals | RoHS Compliant |
| External Length | 160mm |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- Made with durable die cast aluminium for corrosion and impact resistance.
- IP66 rated to protect against dust and powerful water jets.
- Equipped with a grey lid and polyurethane gasket sealing.
- Captive stainless steel screws prevent unauthorized access.
- Compact 160mm x 160mm x 160mm dimensions for small components.
- UL and Maritime certified for hazardous area use.
- RoHS compliant ensuring environmentally safe materials.
- Wide operating temperature range from -60°C to +130°C.
Product Description
Rose IP66 Die Cast Aluminium Enclosure, model IP66, provides high-performance housing for safeguarding electronic components in industrial, telecommunications, solar power, computing, and food and beverage manufacturing environments. The enclosure measures 160 mm in height, width, and length with a depth of 81 mm, making it ideal for compact installations.
Constructed from die cast aluminium, it offers excellent corrosion resistance and mechanical strength. The grey lid and body feature a polyurethane gasket that reliably seals out dust, moisture, and contaminants, achieving an IP66 ingress protection rating and IK09 impact resistance rating. This rugged protection ensures durability even in challenging operating conditions ranging from -60°C to +130°C, suitable for harsh industrial environments.
The lid is fastened with captive stainless steel screws, securing the contents from unauthorized access and tampering. Its non-transparent design helps keep internal components hidden, enhancing security. Installation is straightforward with DIN rail mounting compatibility.
Certified to UL and Maritime standards and RoHS compliant, this enclosure meets rigorous safety and environmental regulations, enabling use in hazardous and regulated areas. Made with durable die cast aluminium for corrosion and impact resistance.
IP66 rated to protect against dust and powerful water jets. Equipped with a grey lid and polyurethane gasket sealing. Captive stainless steel screws prevent unauthorized access. Compact 160mm x 160mm x 160mm dimensions for small components.
UL and Maritime certified for hazardous area use. RoHS compliant ensuring environmentally safe materials. Wide operating temperature range from -60°C to +130°C. Designed for easy DIN rail mounting installation. Lightweight at approximately 1.1 kg for minimal equipment strain.
This enclosure is well-suited for industrial automation, electrical installations, and other sectors requiring reliable environmental and security protection for electronic devices. Browse more high-quality General Purpose Enclosures in the Rose Aluform Series available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 160 mm in height, width, and length, with a depth of 81 mm.
It has an IP66 rating, which protects against dust and powerful water jets.
The enclosure is constructed from die cast aluminium, providing corrosion resistance and mechanical strength.
It operates within a wide temperature range from -60°C to +130°C.
It is certified to UL and Maritime standards and is RoHS compliant.
The lid is secured with captive stainless steel screws, preventing unauthorized access and tampering.
Yes, it is certified for use in hazardous areas due to its UL and Maritime certifications.
The enclosure weighs approximately 1.1 kg.
This enclosure does not have any knockouts.
It features a polyurethane gasket that seals out dust and moisture.
It is designed for easy installation with DIN rail mounting compatibility.
It is well-suited for industrial automation, electrical installations, telecommunications, and food and beverage manufacturing environments.
