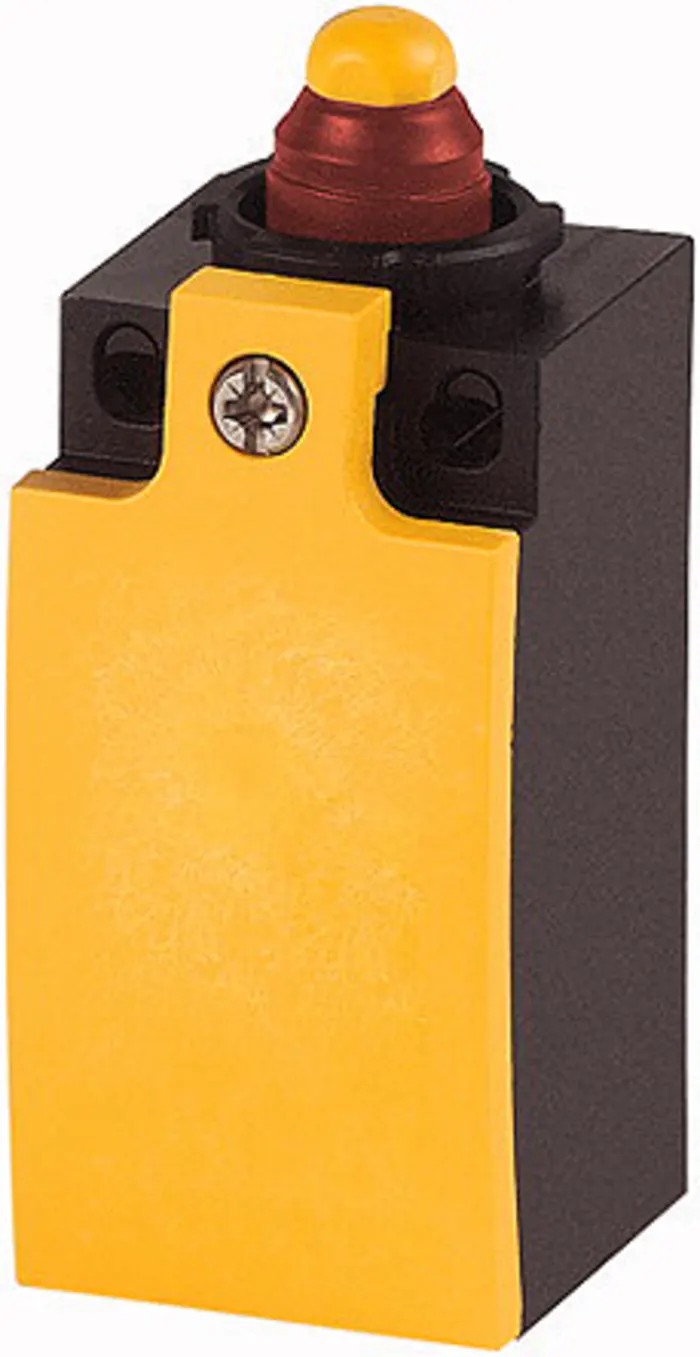

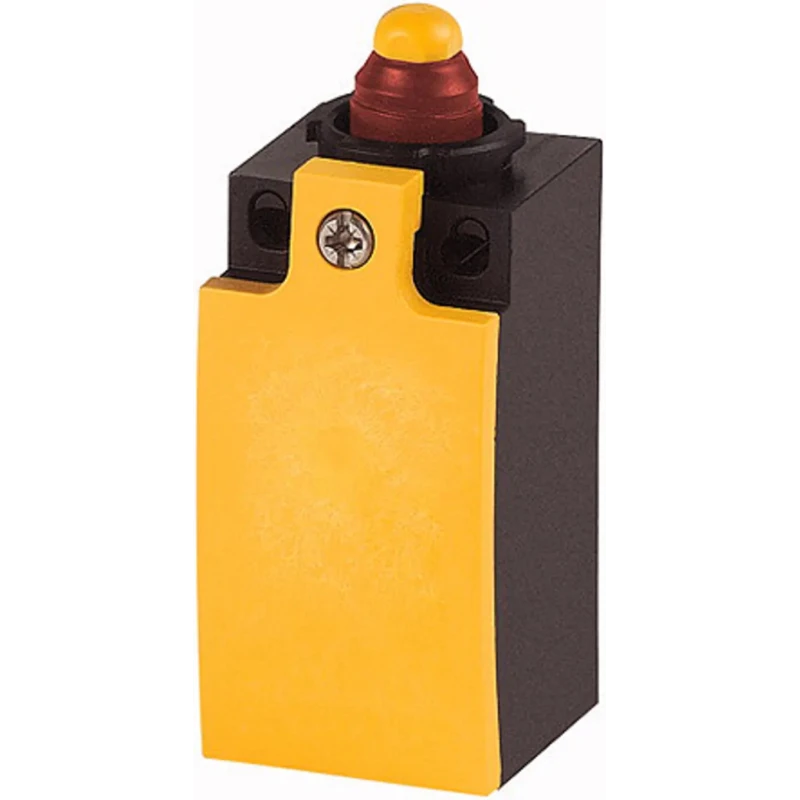

Eaton LS-Titan Series Plunger Limit Switch, 415V AC, 6A, 2 NC, IP65, Insulated Plastic Housing 176890 LS-S02-CC

The Eaton LS-Titan Series Plunger Limit Switch, model 176890 LS-S02-CC, is a high-performance industrial limit switch designed for precise position monitoring of machine guards, doors, hoods, and grilles. Built with a robust insulated plastic housing and featuring an IP65 rating, it is engineered for harsh environments and reliable operation.

This plunger-actuated switch incorporates two normally closed (NC) snap-action contacts, ensuring positive operation and electrical safety through guaranteed contact break upon actuation. The switch is rated for 415V AC, 6A current and provides compatibility with both AC and DC applications, enabling it to handle demanding industrial control loads.

The LS-Titan series is renowned for its cold climate capabilities, supporting a wide operating temperature range from -40°C to 70°C. Its mechanical life extends up to 8 million operations, making it suitable for continuous-duty applications such as factory automation, machinery interlocks, safety stop systems, and control circuits. Cage clamp terminals offer maintenance-free and vibration-proof wiring, accommodating safe and secure installations.

Installation flexibility is assured, with the mounting orientation set to top and operating heads that can be installed in all four directions to suit various machine layouts. The switch is compact, measuring 31mm in length, 33.5mm in width, and 76mm in depth, allowing integration into space-constrained panels or machinery.

Applicable industries include manufacturing, automation, material handling, conveyor systems, and any environment where secure position monitoring and electrical safety are critical. The product meets RoHS compliance requirements and is built according to stringent European standards.

Plunger actuator for precise mechanical operation. Insulated plastic housing resists impact and provides cold climate reliability. IP65 protection guards against dust and water ingress for demanding conditions. 2 NC snap-action contacts for uncompromised safety control.

Long mechanical life and robust electrical rating suit heavy-duty industrial applications. Explore the full range of industrial Limit Switches and position monitoring solutions in the Electronics & Electricals category from EnvMart.
