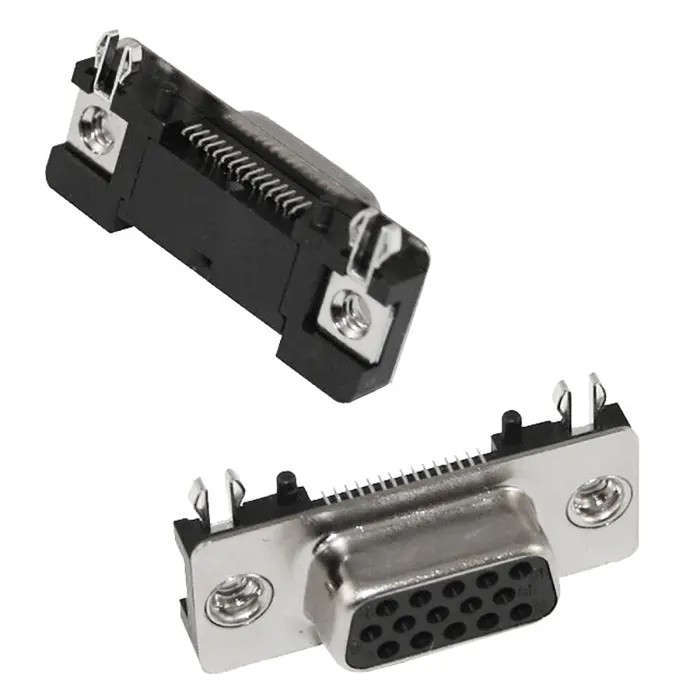

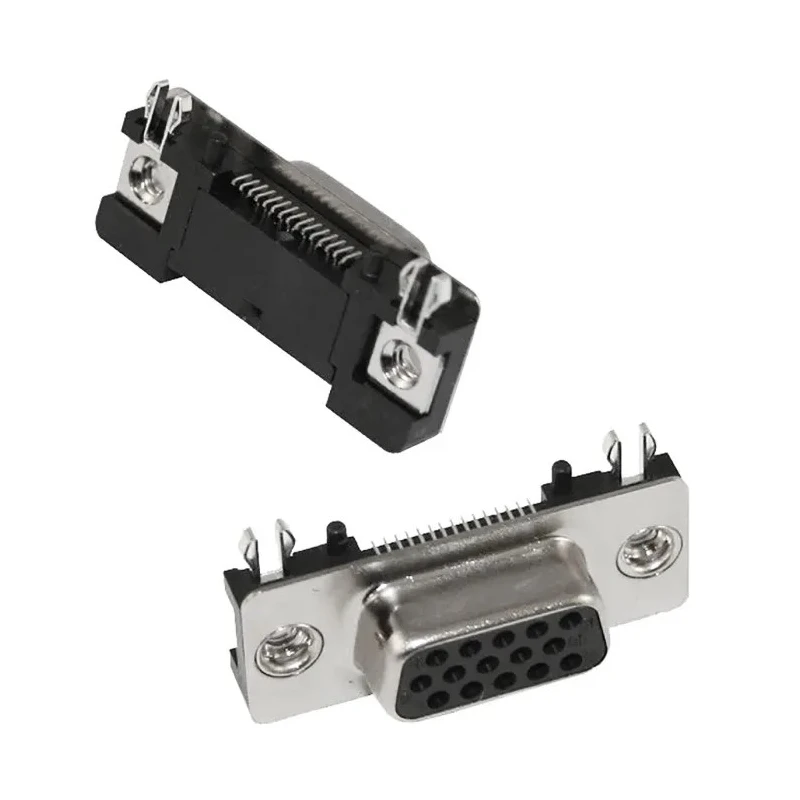

Norcomp 15 Way Right Angle 2.29 mm Pitch Surface D-Sub Connector with Board Lock Female 200-015-263R001
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 300.0, 500.0V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 2A |
| Model | 200-015-263R001 |
| Mount Type | Surface |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | 200 |
| Mounting Hardware | Board Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Shell | Steel-nickel plated |
| Plating | Gold flash (mating area) | Tin (solder tails) |
| Pitch | 2.29mm |
| Insulator | Nylon black (260°C process temp) |
| Contacts | Male pins: Phosphor bronze | Female pins: Phosphor bronze |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| Board Locks | Brass-Nickel plated |
Key Features
- Features 15 contact positions for diverse electrical applications.
- Right angle orientation for compact PCB layouts.
- Metal steel shell with nickel plating provides effective electromagnetic shielding.
- Equipped with built-in brass-nickel plated board locks for enhanced mechanical stability.
- Contact pins are made of phosphor bronze and plated with gold for excellent conductivity and corrosion resistance.
- Operates reliably between -55°C and 105°C temperature range.
- Supports voltage ratings up to 300 V and 500 V.
- Termination is via solder for secure electrical connection.
Product Description
The Norcomp 200-015-263R001 is a high-quality 15 Way Right Angle Surface Mounted D-Sub Connector designed for female connections with a precise 2.29 mm pitch. It features a robust steel nickel-plated shell that provides effective shielding against electromagnetic interference, making it ideal for use in electronic and industrial equipment.
This connector includes built-in brass-nickel plated board locks that ensure a firm mechanical fixing to printed circuit boards, enhancing overall durability and reliability in harsh industrial, telecommunications, and computing environments.
Contacts are made from phosphor bronze and coated with a gold flash plating in the mating area for excellent conductivity and corrosion resistance. The solder termination type facilitates solid electrical connections to PCB assemblies. Its operating temperature range from -55°C to 105°C allows use in a broad range of environmental conditions.
Rated for currents up to 2 amperes and voltages up to 500 volts, it meets the demands of power and signal transmission in various electronic assemblies. The connector is compliant with the Norcomp 200 series standard and manufactured with careful attention to quality, originating from Taiwan, Province of China.
Features 15 contact positions for diverse electrical applications. Right angle orientation fits compact PCB arrangements. Steel nickel-plated housing ensures electromagnetic shielding. Brass-nickel plated board locks deliver firm PCB mounting.
Gold flash plated phosphor bronze contacts sustain connectivity quality. Wide temperature range supports demanding industrial conditions. Solder termination supports durable electrical connections.
This connector is excellent for industrial, laboratory, construction, telecommunications, electronic assembly, and manufacturing applications where reliable D-Sub connectivity is essential. Refer to EnvMart’s extensive electronic components section to explore compatible connectors and accessories from Norcomp and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Norcomp 15 Way Right Angle D-Sub Connector supports voltage ratings of up to 300 V and 500 V.
This connector is rated for a maximum current of 2 amperes.
It operates reliably within a temperature range of -55°C to 105°C.
The termination type for this model is solder, which ensures a secure electrical connection.
The housing is made of steel with nickel plating, while the contact pins are made of phosphor bronze and plated with gold.
This D-Sub connector features 15 contact positions for diverse electrical applications.
The pitch size of this model is 2.29 mm.
This connector is designed for surface mounting and includes board locks for enhanced mechanical stability.
The connector has a right angle orientation, making it suitable for compact PCB layouts.
This model is manufactured in Taiwan, Province of China.
The contacts are gold flash plated in the mating area to ensure excellent conductivity and corrosion resistance.
It is suitable for use in industrial, telecommunications, electronic assembly, and manufacturing applications where reliable connectivity is essential.
