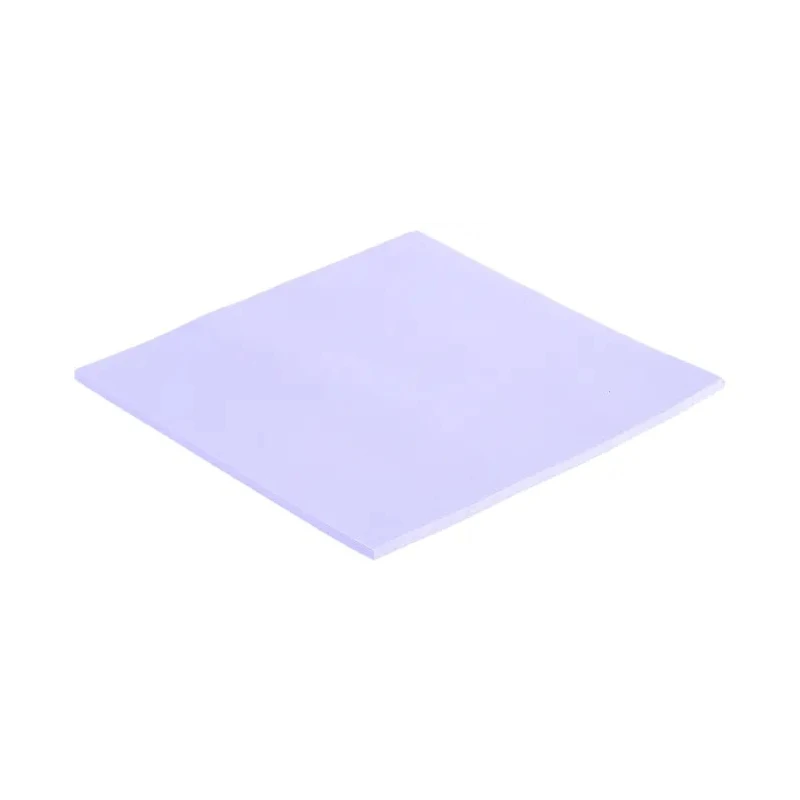

Qnity Laird T-flex 600 Series Self-Adhesive Thermal Interface Sheet, Boron Nitride Filled Silicone Elastomer U021041-22-U1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Diameter | 100mm |
| Brand | Qnity Laird |
| Colour | Violet, Blue |
| THICKNESS | 2.5mm |
| Length | 100mm |
| Model | U021041-22-U1 |
| Width | 100mm |
| Series | T-flex 600 |
| Maximum Operating Temperature | 200°C |
| Hardness | Shore OO 25 |
| Thermal Conductivity | 3W/mK |
| Minimum Operating Temperature | -45°C |
| Standards/Approvals | RoHS |
| Trade Name | Thermal Gap Filler |
| Conductive Material | Boron Nitride Filled Silicone Elastomer |
Key Features
- Features boron nitride filled silicone elastomer for enhanced thermal performance.
- Thickness of 2.5 mm provides effective gap filling capability.
- Thermal conductivity rating of 3 W/mK ensures efficient heat dissipation.
- Operating temperature range from -45°C to 200°C supports wide application conditions.
- Naturally tacky self-adhesive surface eliminates need for additional adhesives.
- Soft and highly compressible material recovers over 90% thickness after compression.
- Electrically insulating and UL 94V0 flammability rated material ensures safety.
- Available in violet and blue color tones for easy identification.
Product Description
Qnity Laird U021041-22-U1 T-flex 600 Series Self-Adhesive Thermal Interface Sheet is engineered for reliable thermal management in electronic and electrical assemblies. Constructed using a proprietary boron nitride filled silicone elastomer, it offers a thermal conductivity of 3 W/mK and maintains performance over a broad temperature range from -45°C to 200°C.
This 2.5 mm thick sheet is 100 mm square in size and features a naturally tacky surface that allows it to adhere securely without additional adhesives, improving thermal transfer efficiency. Its soft and highly compressible matrix enables excellent gap filling properties with greater than 90% thickness recovery after compression under low stress conditions.
The thermal interface sheet is electrically insulating and meets UL 94V0 flammability standards, making it suitable for sensitive electronics and industrial HVAC thermal management applications. The violet and blue color variants help in visual identification during assembly and maintenance.
Key industrial applications include electronics cooling, electrical equipment thermal gap filling, HVAC systems, and manufacturing processes requiring efficient heat dissipation and electrical insulation.
Proprietary boron nitride filler enhances thermal conductivity to 3 W/mK. Soft, compressible silicone elastomer provides effective gap filling and recovery. Self-adhesive sheet eliminates additional adhesives that may impede thermal transfer.
Wide operating temperature from -45°C to 200°C for diverse environments. Electrically insulating and UL 94V0 rated for safety compliance. RoHS compliant ensuring environmentally safe materials. Square 100 mm x 100 mm dimensions for versatile application fit.
Color-coded violet and blue for easy material distinction.
This thermal interface sheet is a precision component widely used in electronics manufacturing, HVAC thermal management, and industrial systems requiring reliable thermal gap fillers. Its unique properties make it optimal for reducing thermal resistance and enhancing component lifespan.
Explore more premium thermal management solutions on EnvMart to improve your product performance and reliability.
Explore more products in our Thermal Pads category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thermal conductivity of this model is rated at 3 W/mK, ensuring efficient heat dissipation.
This thermal interface sheet has a thickness of 2.5 mm, providing effective gap filling capability.
It operates effectively within a temperature range of -45°C to 200°C, making it suitable for diverse applications.
The dimensions of this unit are 100 mm x 100 mm, making it versatile for various applications.
It is constructed from a boron nitride filled silicone elastomer, which enhances thermal performance.
Yes, this model is electrically insulating, ensuring safety in sensitive electronic applications.
It meets RoHS standards, ensuring that it is made from environmentally safe materials.
It is available in violet and blue color tones for easy identification during assembly.
The material recovers over 90% of its thickness after compression under low stress conditions.
It is suitable for electronics cooling, electrical equipment thermal gap filling, and HVAC systems.
The hardness of this model is rated at Shore OO 25, indicating its softness and compressibility.
No, it features a naturally tacky self-adhesive surface that eliminates the need for additional adhesives.
