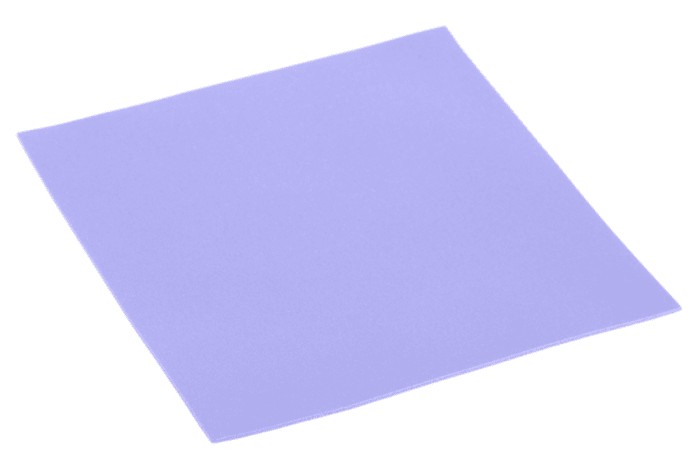

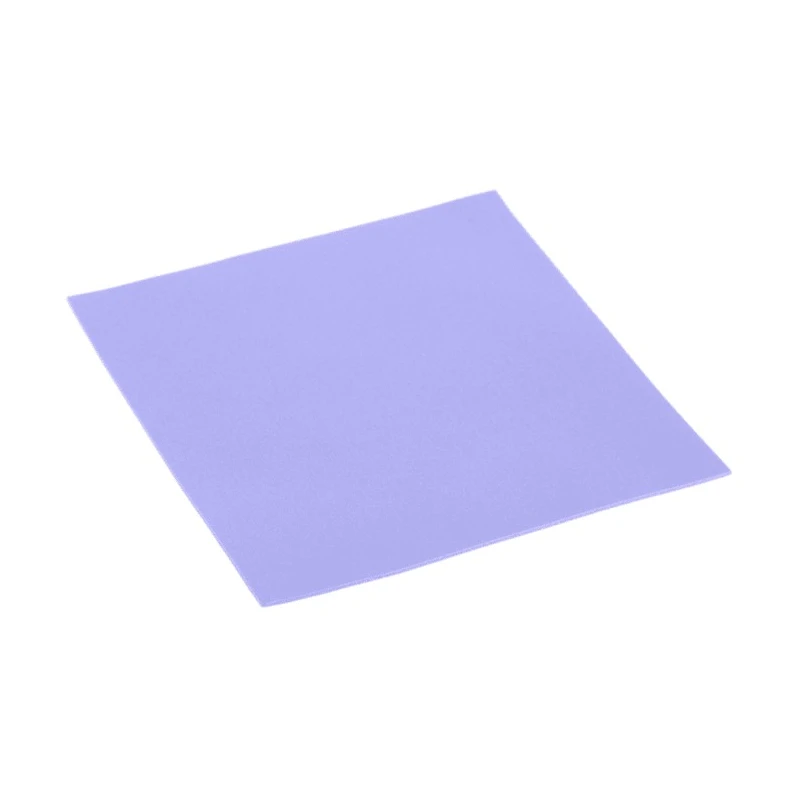

Qnity Laird T-flex 600 Series Self-Adhesive Thermal Interface Sheet 1 mm Thick 3 W/mK 100 mm x 100 mm Boron U021041-20-U1

Free Delivery in India | Lowest Global Shipping Charges

Qnity Laird T-flex 600 Series Self-Adhesive Thermal Interface Sheet 1 mm Thick 3 W/mK 100 mm x 100 mm Boron U021041-20-U1

Name: Qnity Laird T-flex 600 Series Self-Adhesive Thermal Interface Sheet 1 mm Thick 3 W/mK 100 mm x 100 mm Boron U021041-20-U1
Brand: Qnity Laird
SKU: 137811
Price: 19.46 USD
Availability: InStock



Category Thermal Interface Sheet Brand Qnity Laird Condition New

Specifications

Country of Origin	Czech Republic
Brand	Qnity Laird
Colour	Blue, Violet
THICKNESS	1mm
Length	100mm
Model	U021041-20-U1
Width	100mm
Series	T-flex 600
Maximum Operating Temperature	200°C
Hardness	Shore OO 25
Thermal Conductivity	3W/mK
Minimum Operating Temperature	-45°C
Standards/Approvals	RoHS
Trade Name	Thermal Gap Filler
Conductive Material	Boron Nitride Filled Silicone Elastomer

Key Features

The sheet has a dimension of 100 mm length and 100 mm width.
Provides excellent thermal conductivity with a rate of 3 W/mK.
Soft and highly compressible for effective heat dissipation under low pressure.
Operates safely between -45°C minimum and 200°C maximum temperatures.
Electrically insulating and stable, meeting UL 94V0 flammability rating.
Naturally tacky surface eliminating need for additional adhesive coatings.
Ideal for electronics heating and cooling component applications.
Complies with RoHS standards ensuring environmental safety.

Product Description

Qnity Laird U021041-20-U1 Thermal Interface Sheet from the T-flex 600 Series is a self-adhesive thermal gap filler designed for efficient heat management in electronic and electrical components. The sheet is 1 mm thick and composed of a boron nitride filled silicone elastomer that delivers a thermal conductivity of 3 W/mK.

This interface sheet offers very high compressibility allowing it to recover over 90% of its original thickness under low pressure, ensuring consistent thermal contact and reduced stress on components. The natural tackiness negates the need for additional adhesives, thereby maintaining optimum thermal performance.

It withstands operating temperatures from -45°C up to 200°C, making it suitable for demanding thermal environments. The sheet is electrically insulating and meets the UL 94V0 flame retardant rating, adding safety in electrical applications.

The T-flex 600 Series thermal sheet has a square shape with dimensions of 100 mm length and 100 mm width, and comes in blue and violet coloration for easy identification. Compliant with RoHS directives, it affirms its environmentally friendly composition.

Soft, highly compressible gap filling interface material. Boron nitride filled silicone elastomer for enhanced thermal conductivity. Thickness of 1 mm and dimensions 100 mm by 100 mm. Thermal conductivity rated at 3 W/mK ensuring efficient heat transfer.

Electrically insulating with a breakdown voltage exceeding 5,000 Vac. Operating temperature range from -45°C to 200°C ensures versatility. UL 94V0 flammability rating for enhanced electrical safety. Natural tackiness to avoid the use of separate adhesives.

RoHS compliant material suitable for electronics industry standards.

This Thermal Interface Sheet is ideal for use in electronics heating and cooling applications across industrial, commercial, and laboratory environments, helping maintain component reliability and prolonging equipment life.

Explore the range of Qnity Laird thermal products for advanced thermal management solutions at EnvMart.
