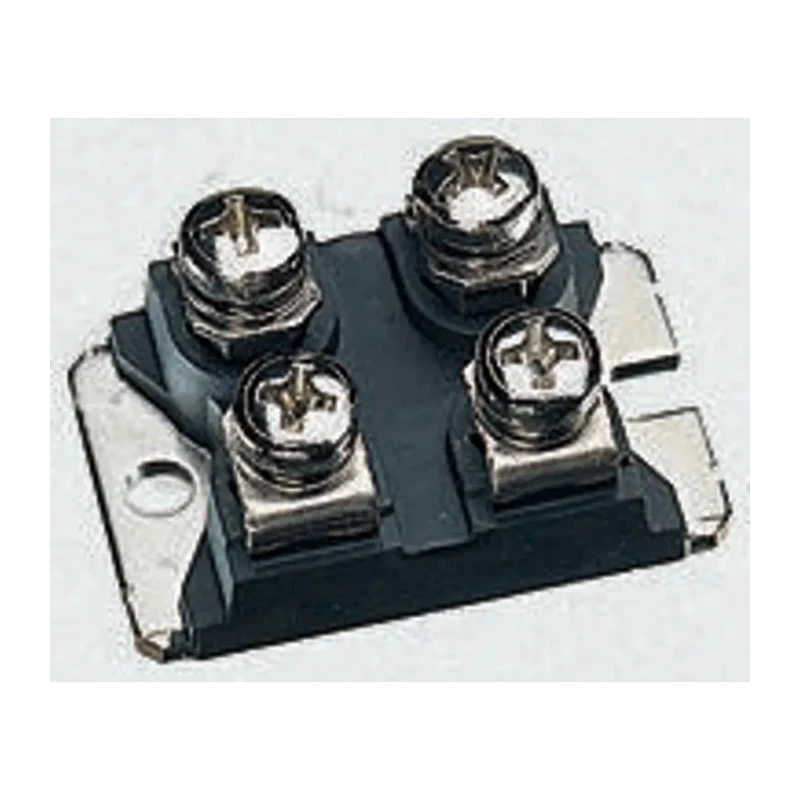

IXYS 1200 V 28 A Switching Diode 4-Pin SOT-227 DSEI2X30-12B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.6mm |
| Length | 38.23mm |
| Model | DSEI2X30-12B |
| Width | 25.42mm |
| Mount Type | Panel |
| Series | DSEI2X30-12B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 28A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 750μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 2.55V |
| Peak Reverse Recovery Time trr | 60ns |
Key Features
- Designed for panel mounting in power rectification applications.
- 4-pin package with isolated diode configuration for improved thermal performance.
- Maximum forward voltage drop of 2.55 V ensures efficient conduction.
- Supports surge currents up to 210 A for short durations.
- Operates reliably from -40°C up to 150°C ambient temperature.
- Low peak reverse current of 750 μA enhances switching efficiency.
- Reverse recovery time of 60 nanoseconds enables high-speed switching.
- Does not conform to automotive standards, suitable for industrial and electronic manufacturing use.
Product Description
The IXYS DSEI2X30-12B switching diode is a robust power semiconductor device specifically designed for high voltage (1200 V) and high current (28 A) applications. Packaged in a 4-pin SOT-227 configuration with panel mounting capability, it offers isolated diode structure for enhanced thermal isolation and reliability.
Its maximum forward voltage of 2.55 V and peak reverse recovery time of 60 nanoseconds support efficient high-frequency power rectification and fast switching applications found in industrial, power management, and electronic manufacturing settings.
The device handles peak non-repetitive surge currents of up to 210 A, making it capable of surviving transient spikes without damage. It operates over a wide temperature range from -40°C to 150°C, suitable for demanding environments but does not meet automotive certifications.
Physical dimensions are Length 38.23mm, Width 25.42mm, and Height 9.6mm, making it suitable for compact power circuits requiring high reliability. Designed for panel mount panel installations requiring isolated diode configuration.
Max continuous forward current of 28 A supports medium power applications. Peak reverse voltage rating at 1200 V for high voltage DC blocking. Minimal peak reverse current of 750 μA helps reduce leakage losses. Fast reverse recovery time of 60 ns meets switching diode performance needs.
Industrial temperature range of -40°C to 150°C ensures tough operating conditions. Rectifier type: Switching, suitable for controlled switching operations. Compact 4-pin SOT-227 package designed for panel mounting. Dimensions and thermal characteristics optimize installation flexibility and thermal management.
This IXYS switching diode model DSEI2X30-12B is ideal for discrete semiconductor applications in electronics manufacturing, power conversion, industrial automation, and switching power supply designs.
