Qnity Laird T-flex 300 Series Self-Adhesive Thermal Interface Sheet 2 mm Thick Ceramic Filled U021041-15-U1

Free Delivery in India | Lowest Global Shipping Charges

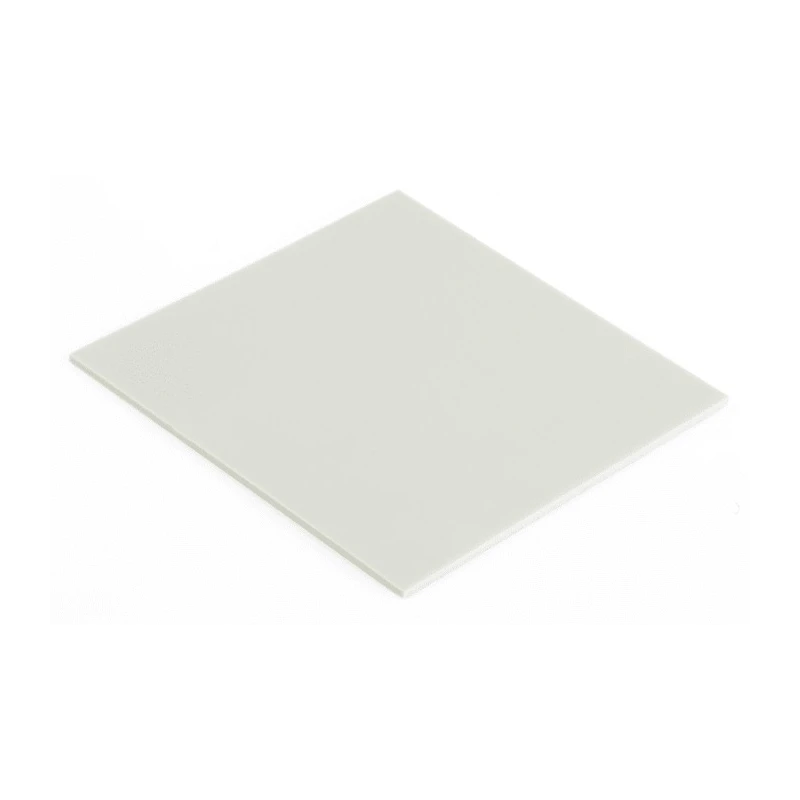

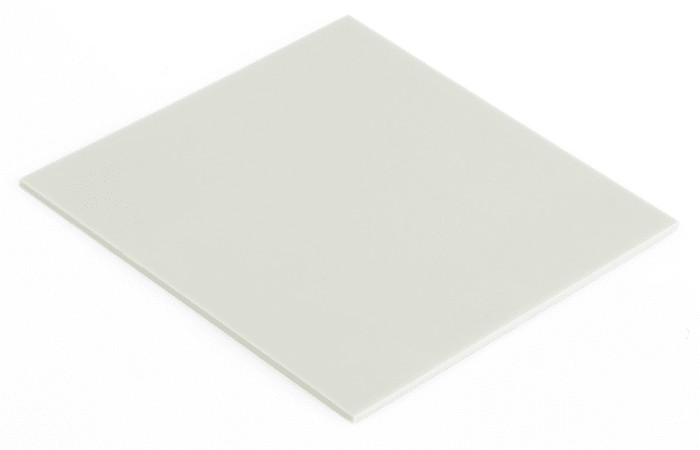

Qnity Laird T-flex 300 Series Self-Adhesive Thermal Interface Sheet 2 mm Thick Ceramic Filled U021041-15-U1

Name: Qnity Laird T-flex 300 Series Self-Adhesive Thermal Interface Sheet 2 mm Thick Ceramic Filled U021041-15-U1
Brand: Qnity Laird
SKU: 137807
Price: 9.26 USD
Availability: InStock



Category Thermal Pads Brand Qnity Laird Condition New

Specifications

Country of Origin	Czech Republic
Brand	Qnity Laird
Colour	Light Green
THICKNESS	2mm
Length	100mm
Model	U021041-15-U1
Width	100mm
Series	T-flex 300
Maximum Operating Temperature	160°C
Hardness	Shore OO 27
Thermal Conductivity	1.2W/mK
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Trade Name	Thermal Gap Filler
Conductive Material	Ceramic Filled Silicone Rubber

Key Features

Features a high thermal conductivity of 1.2 W/mK for efficient thermal management.
Constructed from ceramic filled silicone rubber for excellent insulating properties.
Self-adhesive backing enables easy installation and reliable attachment.
Operates within a wide temperature range from -40°C to 160°C.
Has a Shore OO hardness rating of 27, providing exceptional softness and compliance.
Square sheet with dimensions of 100 mm by 100 mm for versatile application.
Breakdown voltage exceeds 10,000 Vac, ensuring electrical insulation quality.
Low compression set allows multiple reuses and sustained performance.

Product Description

Qnity Laird U021041-15-U1 Thermal Interface Sheet from the T-flex 300 Series is a high-quality, self-adhesive thermal pad designed for superior heat dissipation. This ceramic filled silicone rubber sheet is engineered to provide excellent thermal conductivity of 1.2 W/mK, enabling efficient heat transfer from electronic components.

Its 2 mm thickness and Shore OO 27 hardness deliver exceptional compliancy, allowing the material to compress over 50% at pressures of 50 psi. This ensures a thorough blanket of the component surface, which enhances thermal transfer efficiency.

The self-adhesive backing simplifies mounting and secure placement, making it suitable for electronics heating and cooling applications. It operates reliably across a broad temperature range from -40°C up to 160°C, ensuring consistent performance in demanding environments.

With a breakdown voltage exceeding 10,000 Vac, it provides excellent electrical insulation, protecting sensitive components. The low compression set property enables the pad to be reused multiple times without degrading its thermal efficiency.

This thermal interface sheet is also RoHS compliant, ensuring it meets regulatory environmental standards. Its square 100 mm by 100 mm dimensions make it easily adaptable for various industrial, electronics manufacturing, HVAC systems, and thermal management uses.

High thermal conductivity of 1.2 W/mK. Ceramic filled silicone rubber composition. Self-adhesive for secure installation. Wide operating temperature range from -40°C to 160°C. Shore OO 27 hardness rating for softness and compliance.

Square 100 mm by 100 mm dimensions. Breakdown voltage above 10,000 Vac. Low compression set for reuse and durability. RoHS compliant and made in Czech Republic.

This product is ideal for industrial electronic applications, laboratory equipment, HVAC systems, and manufacturing processes requiring efficient thermal management and durable insulation materials. Explore more Thermal Pads at EnvMart for enhanced component protection and heat dissipation solutions.
