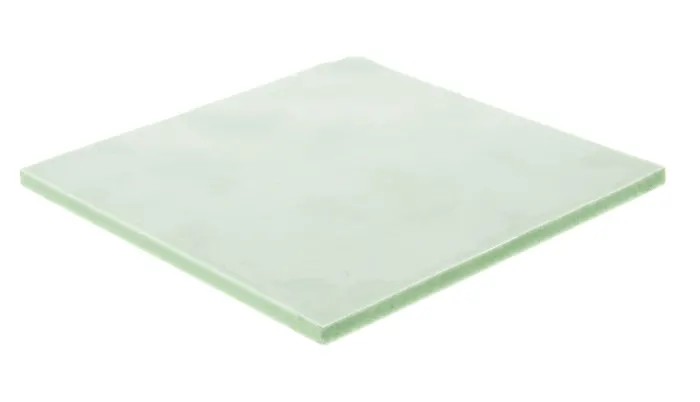

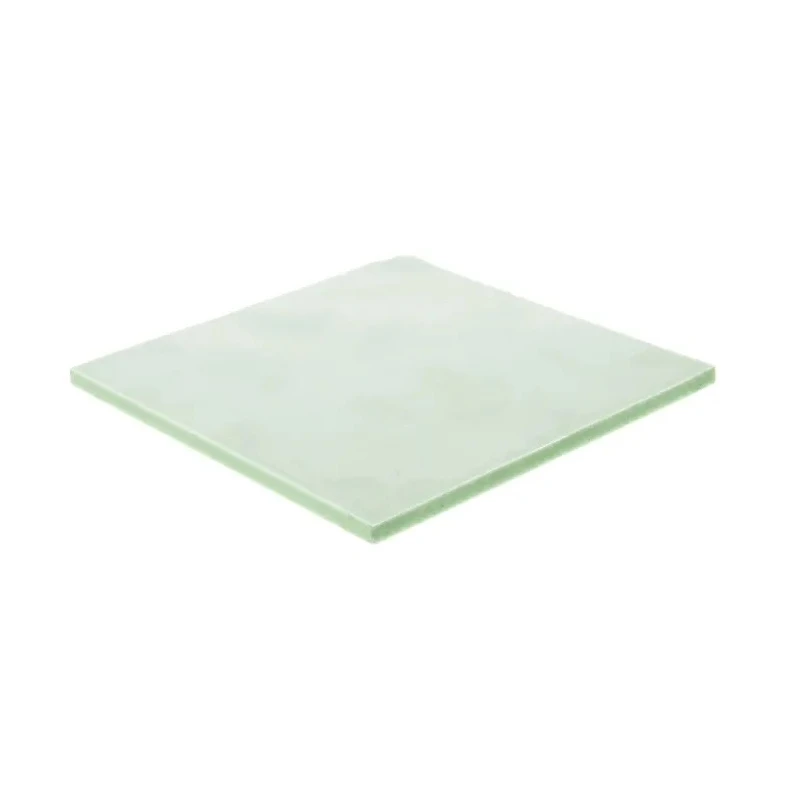

Qnity Laird T-flex 300 Series Self-Adhesive Ceramic Filled Thermal Interface Sheet, 4 mm Thick, 1.2 W/mK, 100 U021041-18-U1

Qnity Laird U021041-18-U1 T-flex 300 Series Self-Adhesive Thermal Interface Sheet offers a highly compliant ceramic filled silicone elastomer solution with a thickness of 4 mm and thermal conductivity of 1.2 W/mK. It is specifically designed for efficient heat dissipation in electronic components, enhancing device reliability and performance by minimizing thermal resistance.

At a pressure of 50 psi, this material deflects over 50% of its original thickness, allowing it to conform fully to component surfaces, thus creating a thorough thermal blanket that improves heat transfer. The low compression set characteristic means it maintains consistent performance over multiple usage cycles.

The thermal pad exhibits outstanding operational reliability within a broad temperature range from -40°C up to 160°C, making it suitable for a variety of industrial and electronic thermal management applications including HVAC systems, power electronics cooling, and other thermal interface requirements.

Its light green mint color and Shore OO 27 hardness allow it to balance softness and durability, while the breakdown voltage greater than 10,000 Vac ensures both electrical insulation and safety under high voltage conditions. The square sheet measuring 100 mm by 229 mm fits diverse form factors commonly used in thermal interface designs.

Certified to UL 94 V0 standards, this thermal interface sheet complies with stringent flammability requirements, making it ideal for demanding environments. Exceptional compliancy allows precise thermal contact and effective heat dissipation.

Ceramic filled silicone elastomer ensures high thermal conductivity and electrical insulation. Wide operating temperature range from -40°C to 160°C supports various industrial environments. Low compression set extends product life through multiple installation cycles.

Dimensions of 100 mm x 229 mm with 4 mm thickness for versatile application.

For those seeking reliable, high-performance thermal interface materials in electronics heating and cooling components, Qnity Laird T-flex 300 Series offers excellent value and proven performance. Explore a broad range of Thermal Pads at EnvMart to find suitable solutions for your thermal management needs.
