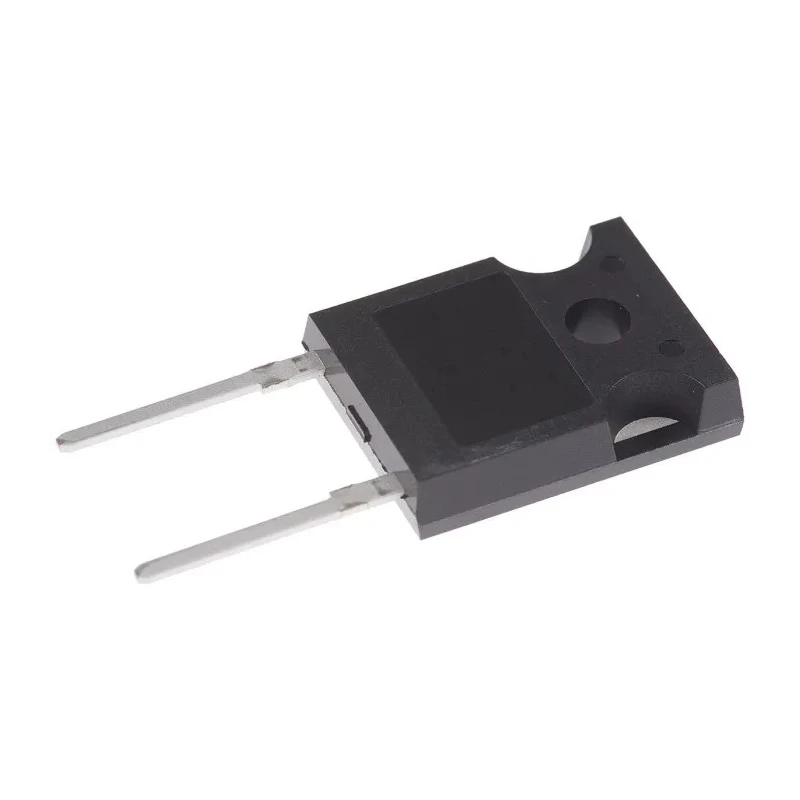

IXYS 1200 V 30 A Diode Switching 2-Pin TO-247AD DHG30I1200HA

IXYS DHG30I1200HA is a high-performance switching diode designed for industrial electronics and power applications. It operates at 1200 V peak reverse voltage and can continuously handle a forward current of 30 A, making it suitable for high power rectification and switching tasks. The diode is encapsulated in a TO-247AD package with a 2-pin configuration optimized for through-hole mounting techniques.

The maximum forward voltage of 2.7 V ensures efficient conduction with minimal power loss. The device supports operating temperatures as low as -55°C and as high as 150°C, allowing robust use in industrial and automotive environments. The peak non-repetitive forward surge current rating of 180 A provides resilience against transient surges.

With a peak reverse recovery time of only 75 nanoseconds, this diode supports fast switching operations crucial for modern power electronics, including converters and inverters. The extremely low peak reverse current (50 μA) further enhances its efficiency and reliability.

The physical dimensions of the diode are 16.26 mm in length, 5.3 mm in width, and 21.46 mm in height, ensuring compatibility with standard industrial mounting hardware. The TO-247AD packaging and through-hole mount type make it easy to integrate into existing electronics assemblies.

Applications include power supplies, industrial control systems, and switching power modules in HVAC, manufacturing, water treatment, and other commercial sectors. The diode features a maximum continuous forward current of 30 A.

It has a peak reverse repetitive voltage rating of 1200 V. The device is configured as a single diode with switching rectifier type. The maximum forward voltage drop is 2.7 V for efficient conduction. Operating temperature ranges from -55°C to 150°C, suitable for harsh environments.

The package dimensions are compact with length 16.26 mm, width 5.3 mm, and height 21.46 mm. The diode has a peak non-repetitive forward surge current of 180 A for transient conditions. Peak reverse current is extremely low at 50 μA, enabling high performance in switching circuits.

Its peak reverse recovery time of 75 ns ensures fast switching operation. Mount type is through hole, facilitating robust PCB mounting. Explore more semiconductor components and Schottky diode rectifiers on EnvMart for your industrial and electronic design needs.
