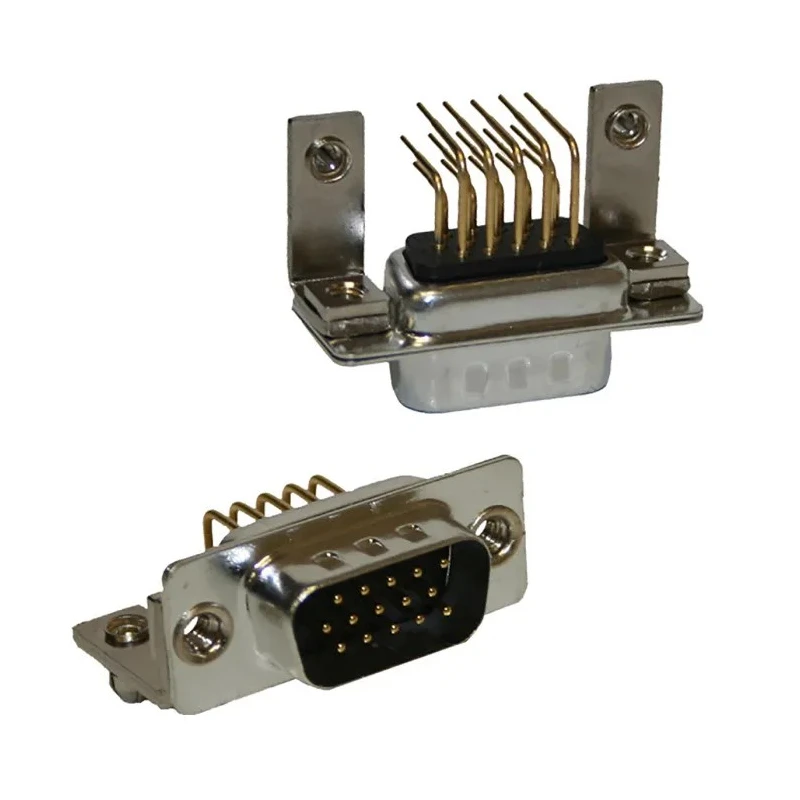

Norcomp 15 Way Right Angle 2.286 mm Pitch Through Hole D-Sub Connector with Board Lock and Locator Plate Male 181-M15-113R141
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1000V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 181-M15-113R141 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 181 |
| Mounting Hardware | Board Lock and Locator Plate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Shell | Steel, Nickel plated |
| Pitch | 2.286mm |
| Insulator | PA6T, (260°C process temp) |
| Contact Plating | Gold Flash |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | High Density |
| Machined contacts | Brass, Gold Flash Plated |
Key Features
- Features a right angle orientation for flexible PCB mounting.
- Contains 15 high-density contacts with 2.286 mm pitch spacing.
- Constructed with a steel nickel-plated shell providing EMI/RFI shielding.
- Contacts are brass with gold flash plating for durability and conductivity.
- Rated for 1000V voltage and 5A current capacity.
- Operates reliably between -55°C and 105°C temperature range.
- Includes mounting hardware such as board lock and locator plate for secure installation.
- Termination type is solder, suitable for through hole mounting.
Product Description
Norcomp 181-M15-113R141 is a 15 Way Right Angle Through Hole D-Sub Connector featuring a 2.286 mm pitch, designed to provide reliable electronic connectivity for industrial and commercial applications.
This connector includes a steel nickel-plated shell which offers excellent EMI and RFI shielding. The right angle design enables convenient PCB mounting options, while the board lock and locator plate ensure secure fitting and mechanical stability.
The connector's contacts utilize brass material with a gold flash plating, optimizing electrical conductivity and resistance to corrosion. It supports a voltage of 1000V and a current rating of 5A, operating efficiently within a temperature range from -55°C to 105°C.
The termination is through hole with solder type, suitable for durable PCB assembly in various electronic setups. Manufactured in Taiwan, Province of China, this D-Sub Connector adheres to a high manufacturing standard ensuring quality and reliability.
Right angle orientation allows versatile PCB connection. 15 high-density contacts spaced at 2.286 mm pitch. Shielded metal shell reduces EMI/RFI interference. Gold flash plated brass contacts ensure longevity and conductivity.
Suitable for industrial, electronic, and communication equipment. Includes mounting hardware for easy secure installation.
This Norcomp D-Sub Connector is ideal for use in industrial, laboratory, manufacturing, and electronic applications requiring reliable power and signal transmission with EMI shielding.
Explore more connectors and electronic components at EnvMart for your technical and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this D-Sub connector are spaced at a pitch of 2.286 mm.
It is rated for a voltage of 1000V and a current capacity of 5A.
This connector operates reliably within a temperature range of -55°C to 105°C.
The shell is made of steel with a nickel plating, and the contacts are brass with gold flash plating.
Yes, it includes mounting hardware such as a board lock and locator plate for secure installation.
The termination type is solder, suitable for through hole mounting.
This model features a right angle orientation, allowing flexible PCB mounting options.
This D-Sub connector has 15 high-density contacts.
It is suitable for industrial, laboratory, manufacturing, and electronic applications requiring reliable power and signal transmission.
The contacts in this connector are male.
This connector is manufactured in Taiwan, Province of China.
The steel nickel-plated shell provides excellent EMI and RFI shielding.
