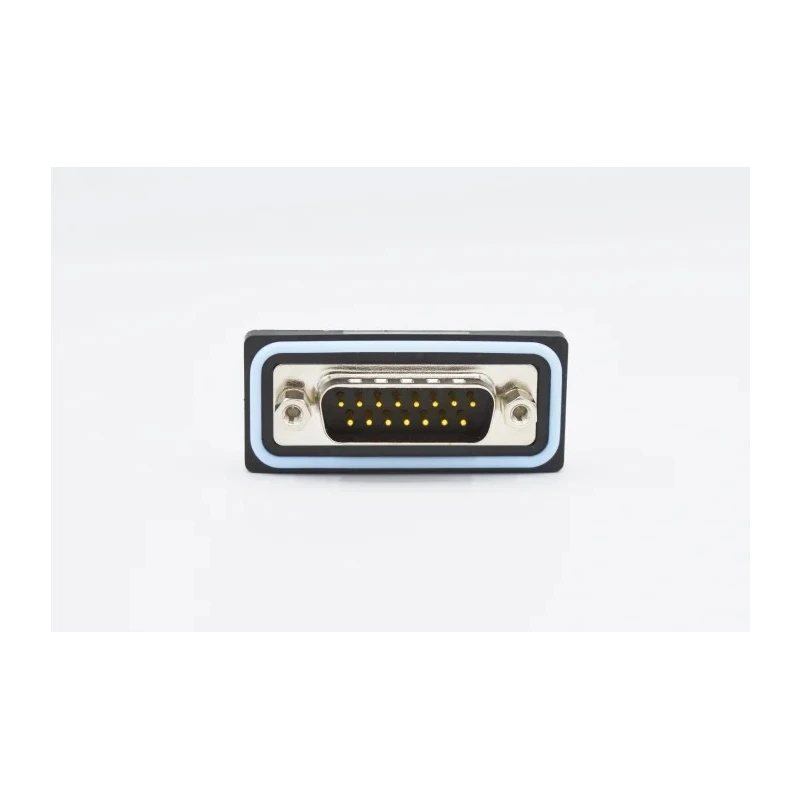

Norcomp 15 Way Right Angle 2.74 mm Pitch Surface D-Sub Connector with 4-40 Board Lock Male SDF-R15-113L461
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1000V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | SDF-R15-113L461 |
| Mount Type | Surface |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | SDF |
| Mounting Hardware | 4-40 Board Lock |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- Features 15 gold-plated brass contacts ensuring robust and corrosion-resistant connections.
- Right angle orientation suitable for space-saving surface mount applications.
- Equipped with 4-40 board lock mounting hardware for secure installation.
- Made with durable Polybutylene Terephthalate housing material for stability and insulation.
- Operates efficiently within a temperature range of -25°C to 85°C, fitting various industrial environments.
- Nickel-plated steel shell with silicon O-ring sealing provides IP67 rating for environmental protection.
- Suitable for electronic, power connector, and industrial automation use cases.
- Manufactured in Taiwan, ensuring quality and reliability for professional applications.
Product Description
Norcomp SDF-R15-113L461 is a 15-way Surface Mount Right Angle D-Sub Connector featuring a 2.74 mm pitch designed for robust electronic interconnection in demanding industrial and electronic applications. It supports a voltage rating of 1000V and a current rating of 5A, making it ideal for power connectors in automation, manufacturing, and electronics.
The connector has a nickel-plated steel shell for excellent durability and corrosion resistance. Its gold-plated brass contacts provide superior conductivity and long-lasting performance. The housing is constructed from Polybutylene Terephthalate (PBT), enhancing insulation and mechanical stability while meeting UL 94V-0 flammability requirements.
Designed with a right angle orientation, this connector supports surface mounting, secured with 4-40 board lock hardware for stable installation on PCBs. The contact pitch is precisely 2.74 mm, enabling high-density connector layouts in compact devices.
The operating temperature range of -25°C to 85°C ensures reliable function across industrial environments. Additionally, it features silicon O-ring sealing to confer an IP67 rating, protecting against dust and water ingress, critical in harsh or outdoor settings.
15 gold-plated brass contacts for high conductivity and corrosion resistance. Right angle, surface mount configuration for space-efficient PCB design. 4-40 board lock mounting hardware for secure attachment. Durable Polybutylene Terephthalate housing material with excellent insulation.
Operating temperature from -25°C to 85°C suitable for industrial use. Nickel-plated steel shell and IP67 rating with silicon O-ring protection. Voltage rating of 1000V and current capacity of 5A for reliable power transmission.
Manufactured in Taiwan, meeting high quality standards.
This D-Sub Connector is perfect for use in industrial electronics, power distribution units, automation equipment, and other precision electronic devices requiring robust connections. Explore similar connectors and components in the EnvMart Power Connectors category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Norcomp SDF-R15-113L461 connector has a voltage rating of 1000V and a current rating of 5A, making it suitable for reliable power transmission in various applications.
This model operates efficiently within a temperature range of -25°C to 85°C, which is suitable for various industrial environments.
The housing is made from Polybutylene Terephthalate (PBT), while the contacts are gold-plated brass, and the shell is nickel-plated steel, providing durability and corrosion resistance.
The connector features 15 gold-plated brass contacts, ensuring robust and corrosion-resistant connections.
This connector is designed for surface mounting and is equipped with 4-40 board lock mounting hardware for secure installation on PCBs.
The contact pitch of this model is 2.74 mm, allowing for high-density layouts in compact devices.
Yes, it features silicon O-ring sealing that provides an IP67 rating, protecting against dust and water ingress, making it suitable for harsh environments.
The Norcomp SDF-R15-113L461 has a right angle orientation, which is suitable for space-saving surface mount applications.
This connector is manufactured in Taiwan, ensuring quality and reliability for professional applications.
It is suitable for use in industrial electronics, power distribution units, automation equipment, and other precision electronic devices requiring robust connections.
The housing material meets UL 94V-0 flammability requirements, ensuring safety in various applications.
This D-Sub connector features a male connector gender, suitable for corresponding female connectors in applications.
