Mean Well WDR Series Switched Mode DIN Rail Power Supply 180-550V AC Input 28V DC 10A 240W WDR-240-24

Mean Well WDR-240-24 is a switched mode DIN rail power supply providing a single 28V DC output at 10A and power of 240W. It features a wide input voltage range from 180V AC to 550V AC suitable for single- and two-phase electrical systems, making it highly versatile for industrial applications.

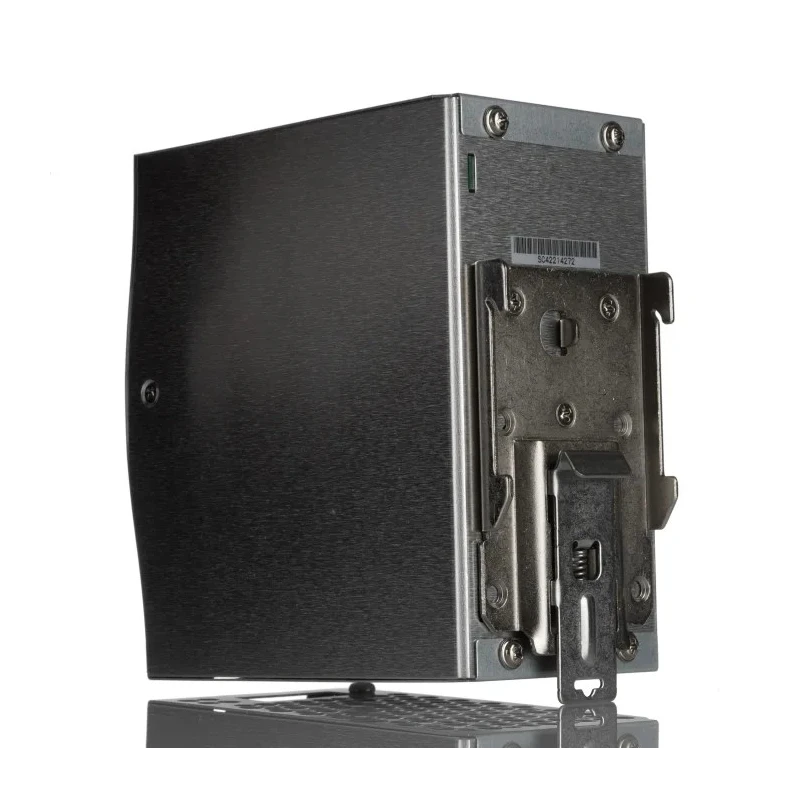

This power supply includes built-in protections such as short circuit, overload, over voltage, and over temperature safeguards to ensure long-term reliability and safety in demanding industrial environments. Its slim design with dimensions 125mm height, 63mm width, and 114mm depth allows for neat integration within control panels using standard TS-35/7.5 or 15 DIN rails.

It meets important certifications including RoHS compliance, TUV EN 60950-1 safety standard, and UL approval, assuring safety and quality in use. The device operates efficiently at 91%, aided by an active PFC circuit conforming to EN61000-3-2 standards, which reduces power loss and electrical noise.

The WDR-240-24 can operate in temperatures ranging from -30°C to 70°C and is cooled by free air convection, eliminating the need for mechanical fans and lowering maintenance requirements. This power supply is suitable for powering sensors, motors, relays, actuators, and various DC devices in industrial automation, factory setups, transportation systems, public utilities, and residential building automation.

Wide 180-550V AC input voltage range. Single 28V DC output at 10A with 240W power rating. Active PFC circuit compliant with EN61000-3-2 for power quality improvement. Built-in protection for short circuit, overload, over voltage, and over temperature.

Compact DIN rail mount design compatible with TS-35/7.5 and 15 rails. RoHS, TUV EN 60950-1, and UL certified ensuring safety and environmental compliance. Operating temperature from -30°C to 70°C suitable for harsh environments.

Cooling by free air convection reduces noise and maintenance. Versatile application in industrial, automation, transportation, and building control systems. High efficiency of 91% for reduced energy consumption and heat dissipation.

This Mean Well DIN Rail Power Supply is designed for professionals in industrial, manufacturing, and commercial sectors seeking reliable and efficient AC to DC power conversion solutions.
