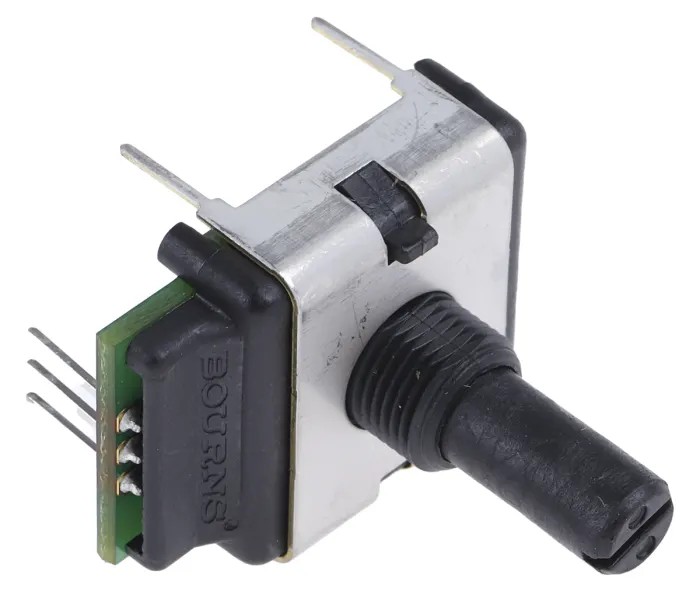

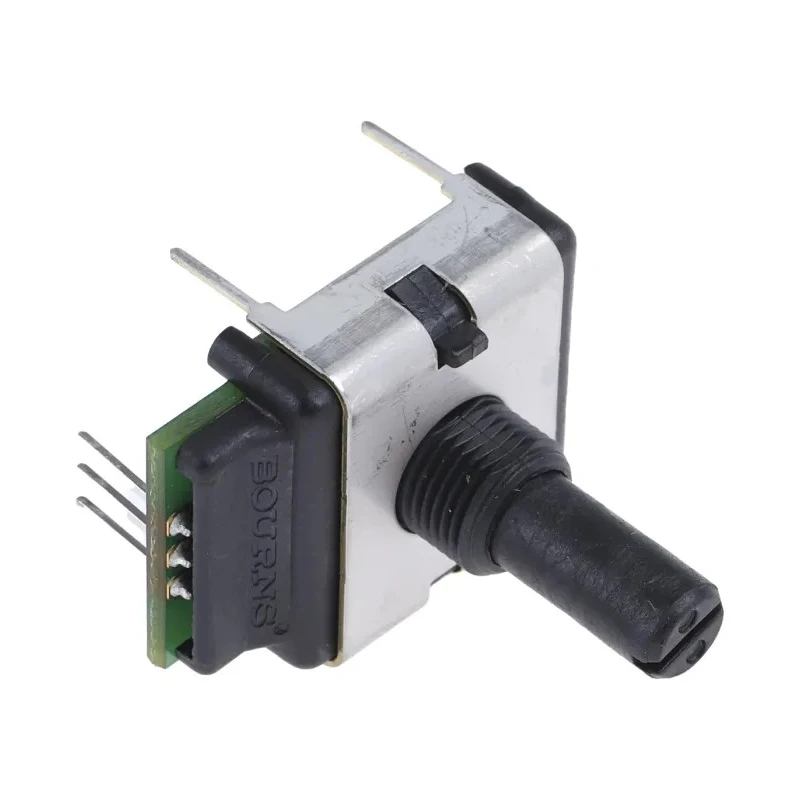

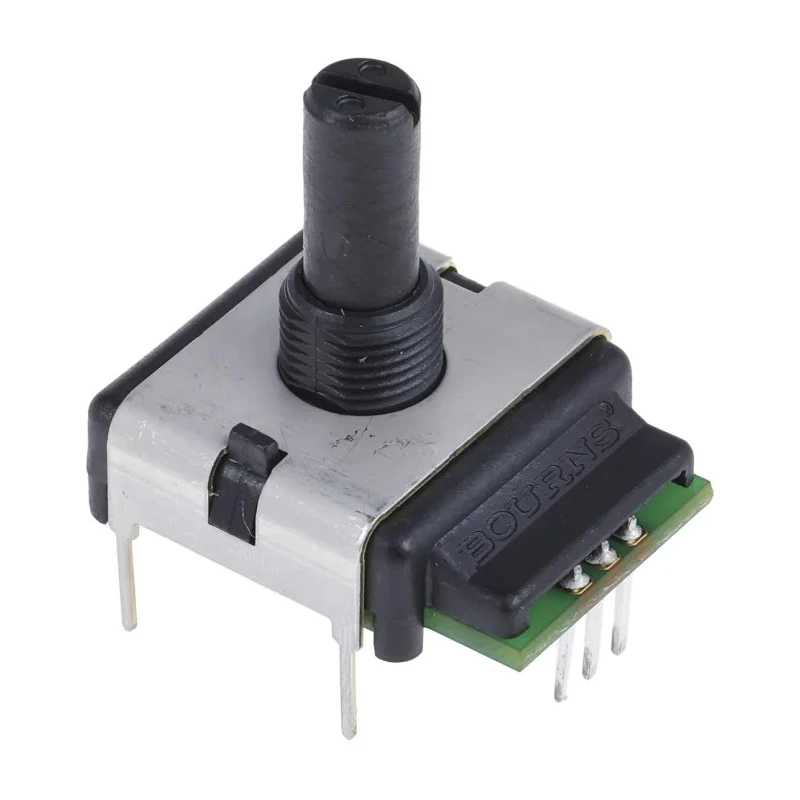

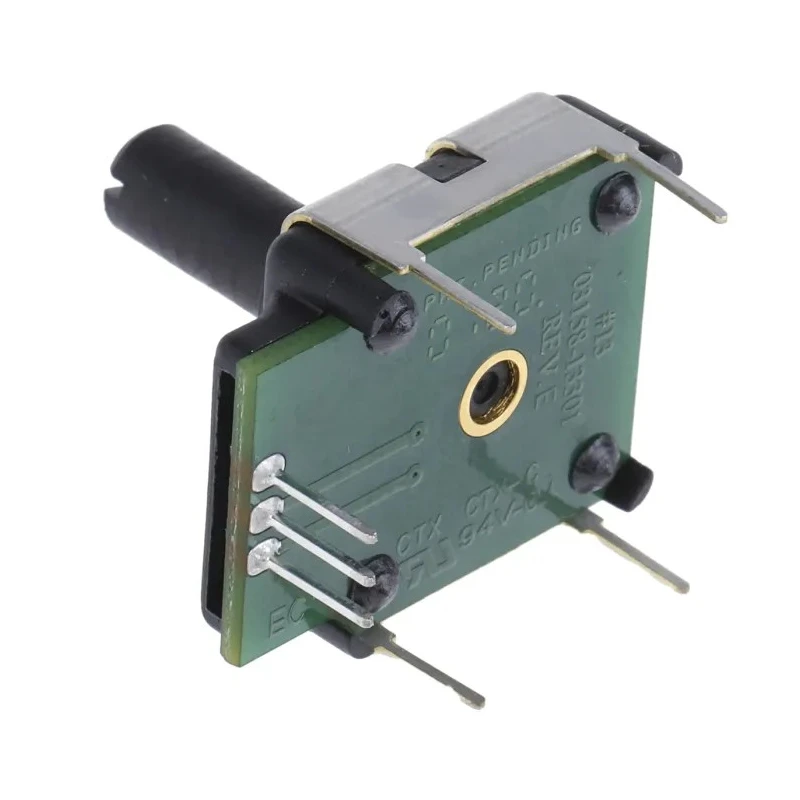

Bourns ECW Series Incremental Encoder 10V, 24 PPR, Quadrature Signal, Solid Type Shaft 6.35 mm ECW1J-B24-BC0024L
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Model | ECW1J-B24-BC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 28.49mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 27.51mm |
| Shaft Type | Solid |
| Terminal type | Solder |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V |
| Overall Depth | 23.37mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
Key Features
- This encoder utilizes incremental encoder technology for precise positioning.
- It features a solid shaft type with a diameter of 6.35 mm.
- Maximum rated speed is 120 rpm ensuring reliable performance.
- Panel mount design with solder terminal type for ease of installation.
- Operation temperature ranges from -40°C to 85°C suitable for industrial environments.
- Provided with IP40 protection rating, safeguarding internal components.
- Compact dimensions with an overall width of 28.49 mm, height 27.51 mm, and depth 23.37 mm.
- Manufactured in Mexico maintaining high quality standards and RoHS compliant.
Product Description
Bourns ECW1J-B24-BC0024L incremental encoder is engineered for precise motion control applications requiring reliable pulse output and robust construction. Operating at a maximum supply voltage of 10V, this incremental encoder delivers 24 pulses per revolution (24 ppr) with a quadrature output signal, enabling accurate direction and speed detection.
The device features a solid shaft with 6.35 mm diameter, designed for panel mounting using solder terminals. Its compact size, measuring 28.49 mm wide, 27.51 mm high, and 23.37 mm deep, allows integration into confined spaces.
Constructed with exceptional durability, the ECW series encoder provides an extended lifecycle suitable for industrial manufacturing, automation, and control gear applications. The IP40 ingress protection safeguards the unit from solid particles, making it suitable for controlled industrial environments.
Operating temperature ranges from -40°C to 85°C enable usage across varied climatic conditions, while the maximum rotational speed of 120 rpm supports moderate speed applications.
Produced in Mexico under stringent RoHS compliance, this encoder ensures environmentally conscious manufacturing and high reliability for electronics and automation sensor systems.
This encoder utilizes incremental encoder technology for precise positioning. It features a solid shaft type with a diameter of 6.35 mm. Maximum rated speed is 120 rpm ensuring reliable performance. Panel mount design with solder terminal type for ease of installation.
Operation temperature ranges from -40°C to 85°C suitable for industrial environments. Provided with IP40 protection rating, safeguarding internal components. Compact dimensions with an overall width of 28.49 mm, height 27.51 mm, and depth 23.37 mm.
Manufactured in Mexico maintaining high quality standards and RoHS compliant.
Ideal for applications in industrial automation, manufacturing controls, and motion sensing systems, this Incremental Encoder provides dependable performance essential for precise machine operations. Explore more sensors and motion control devices at EnvMart for your electronics and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this encoder is 10V.
This model provides 24 pulses per revolution (24 ppr) with a quadrature output signal.
The encoder has overall dimensions of 28.49 mm in width, 27.51 mm in height, and 23.37 mm in depth.
It operates within a temperature range from -40°C to 85°C.
This encoder features a solid shaft with a diameter of 6.35 mm.
It is designed for panel mounting using solder terminals.
The maximum rotational speed is 120 rpm.
The encoder has an IP40 protection rating, safeguarding it from solid particles.
Yes, it is manufactured under RoHS compliance standards.
This encoder is manufactured in Mexico.
It provides a quadrature output signal type.
It is suitable for applications in industrial automation, manufacturing controls, and motion sensing systems.
