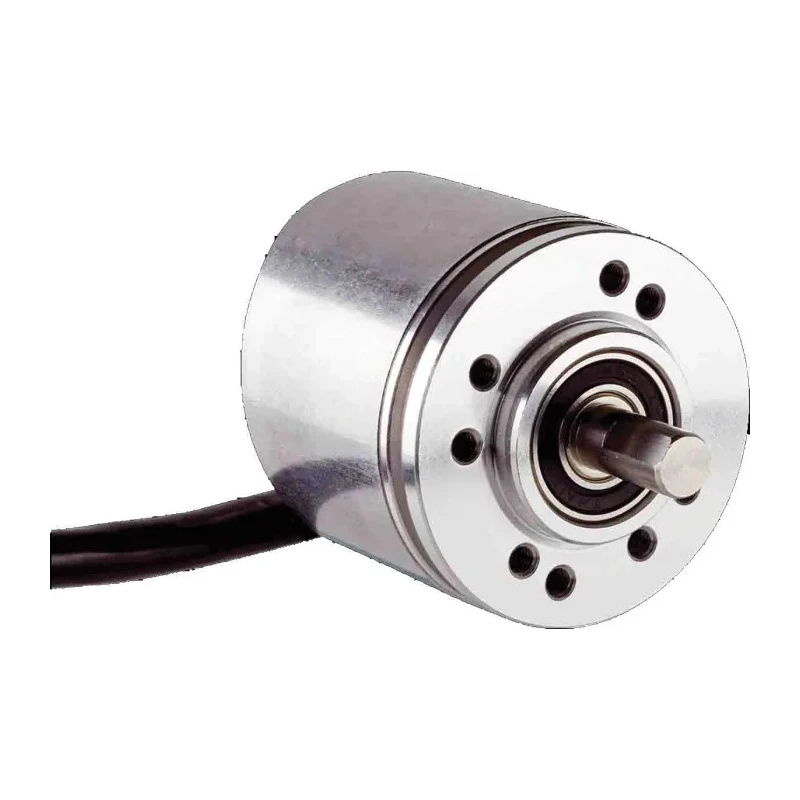

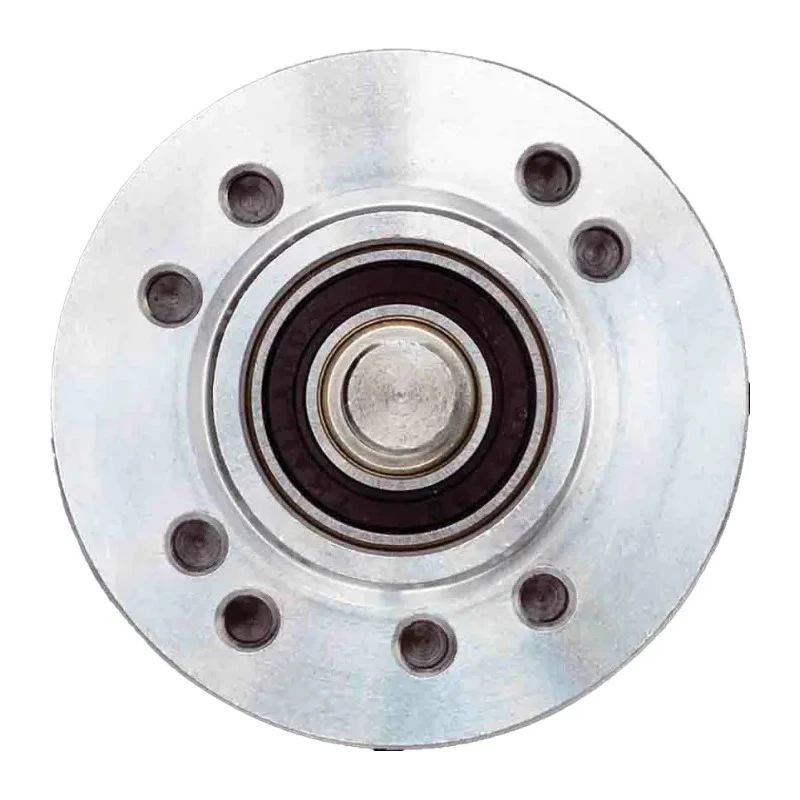

SICK DBS363 Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 6 mm DBS363

Free Delivery in India | Lowest Global Shipping Charges

SICK DBS363 Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 6 mm DBS363

Name: SICK DBS363 Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 6 mm DBS363
Brand: SICK
SKU: 163756
Price: 202.46 USD
Availability: InStock



Category Incremental Encoder Brand SICK Condition New

Specifications

Country of Origin	Malaysia
Brand	SICK
Model	DBS363
IP Rating	IP65
Mount Type	Flange, Shaft
Series	DBS363
Overall Width	36mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Shaft Diameter	6mm
Overall height	37mm
Switching Frequency	300kHz
Shaft Type	Solid
Pulses per Revolution	500ppr
Standards/Approvals	EN 61000-6-2 and EN 61000-6-3 (class A)
Maximum Supply Voltage	30V dc
Overall Depth	35.5mm
Encoder Technology	Incremental
Maximum Revolutions	6000rpm
Output Signal Type	HTL

Key Features

This encoder supports a maximum rotational speed of 6000 RPM.
Durable solid shaft design with 6 mm diameter for robust mechanical integration.
IP65 rated housing for protection against dust and water ingress.
Wide operating temperature range from -20°C to 85°C ensures suitability in harsh industrial environments.
Output switching frequency up to 300 kHz facilitates rapid signal processing.
Flange and shaft mounting options for flexible installation.
Compact dimensions with overall depth 35.5 mm, height 37 mm, and width 36 mm.
Compliant with EN 61000-6-2 and EN 61000-6-3 (class A) electromagnetic standards.

Product Description

SICK DBS363 Series Incremental Encoder DBS363 is a precision sensor designed for accurate speed and position feedback in industrial automation and motion control applications. Operating at 30V DC, it features 500 pulses per revolution (PPR) with HTL output signal suitable for high-speed counting and control systems.

The encoder incorporates a robust solid shaft of 6 mm diameter enabling reliable mechanical coupling to rotary devices. Encased with an IP65 rated housing, it resists dust and water ingress, extending usable life in challenging environments. Its compact size (35.5 mm depth, 37 mm height, 36 mm width) allows installation in limited spaces.

This model supports a maximum rotational speed of 6000 RPM with a switching frequency of up to 300 kHz, allowing responsive signal acquisition for fast-moving machinery. The operating temperature range spans from -20°C to +85°C, making it adaptable for various industrial settings.

The mounting is versatile with both flange and shaft options, simplifying replacement or integration into existing systems. The encoder meets stringent electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3 (class A) assuring immunity and low emission levels suitable for industrial environments.

This incremental encoder delivers precise pulse output for accurate motion feedback. Solid shaft and robust construction ensure long-term reliability. IP65 protection rating safeguards against harsh conditions. Wide temperature tolerance supports diverse operating environments.

High switching frequency enables quick signal response. Compact form factor eases mounting in space-constrained applications. Compliance with industrial EMC standards guarantees operational stability.

The SICK DBS363 Incremental Encoder is ideal for industrial automation, manufacturing, robotics, conveyor systems, and HVAC applications requiring dependable rotary position sensing. Explore a wide selection of sensors and encoders in the EnvMart catalog to find complementary automation components.
