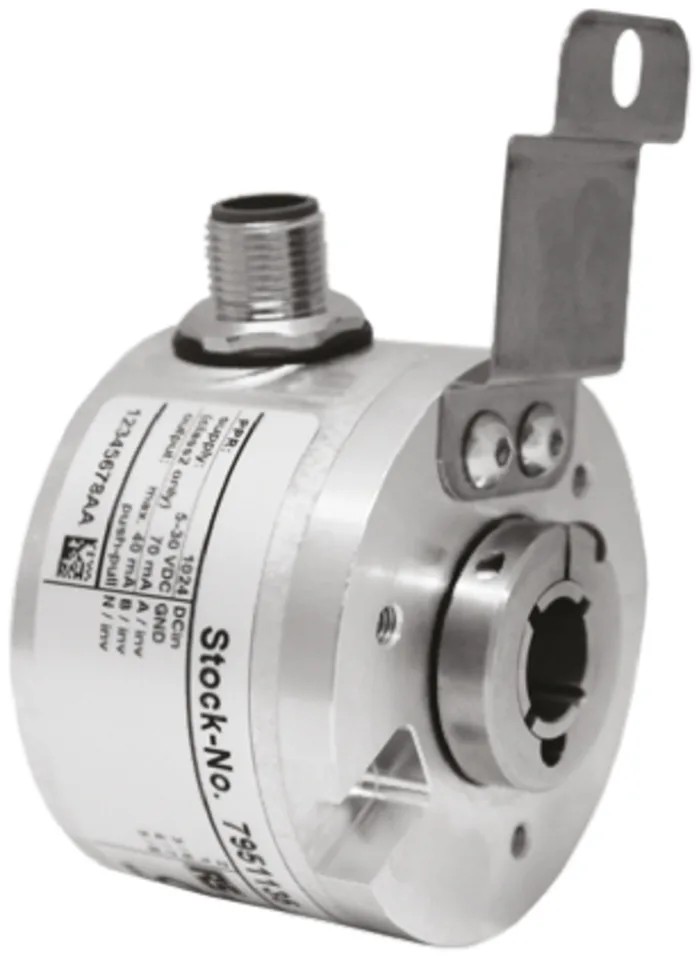

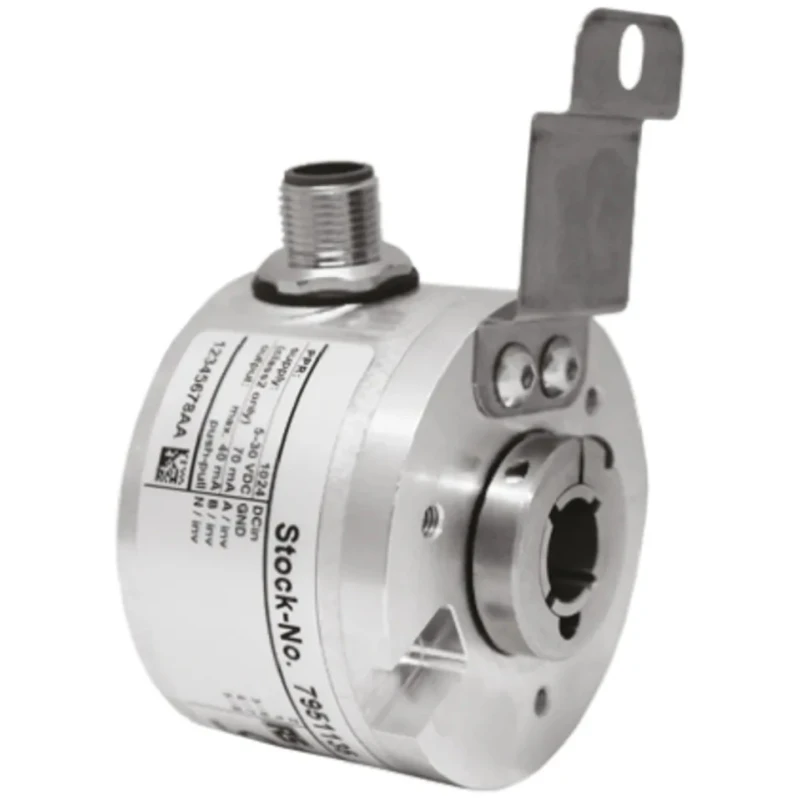

RS PRO Incremental Encoder 30V DC, 50 PPR, HTL Inverted Signal, Hollow Shaft 12 mm, IP65, 6000 RPM 795-1113

RS PRO 795-1113 is an advanced incremental encoder engineered for precise detection of shaft position, rotational speed, and revolutions per minute in demanding industrial settings. It supports supply voltages up to 30 V DC and outputs an HTL inverted signal that ensures high noise immunity and reliable operation in electrically noisy environments common in manufacturing and construction.

The encoder’s hollow shaft flange design with a 12 mm shaft diameter makes it suitable for through-bore mounting on rotating shafts, maximizing space efficiency and flexibility. Its robust die-cast aluminium housing offers excellent mechanical protection and withstands harsh working conditions. This unit is IP65 rated, making it dust-tight and resistant to low-pressure water jets, allowing for installation in harsh factory or outdoor environments.

With a pulses per revolution (PPR) rating of 50 and capable of measuring speeds up to 6000 RPM, the encoder provides accurate and timely feedback for motion control applications including conveyor systems, machine tools, robotics, and heavy machinery.

The operating temperature range from -20°C to 80°C supports use in variable thermal conditions. An 8-pin terminal connection and mounting flange facilitate easy integration into existing industrial setups.

Operates on 5 to 30 V DC supply voltage providing system compatibility. Output signal type is HTL inverted for noise resilient communication. Hollow shaft type with 12 mm shaft diameter for versatile mounting options. Maximum operating speed rated at 6000 RPM for high-speed applications.

Durable die-cast aluminium housing protects internal components. IP65 ingress protection rating for dust and water resistance in tough environments. Wide operating temperature range from -20°C to 80°C ensures ruggedness.

8-pin terminal interface for secure electrical connectivity. Hollow shaft flange mount type for straightforward installation.

This Incremental Encoder is ideal for industrial automation, manufacturing processes, robotics, and construction machinery requiring precise rotational measurement and reliability. Its robust design and high-performance specifications make it a trusted choice for motion control sensors in harsh environments.
