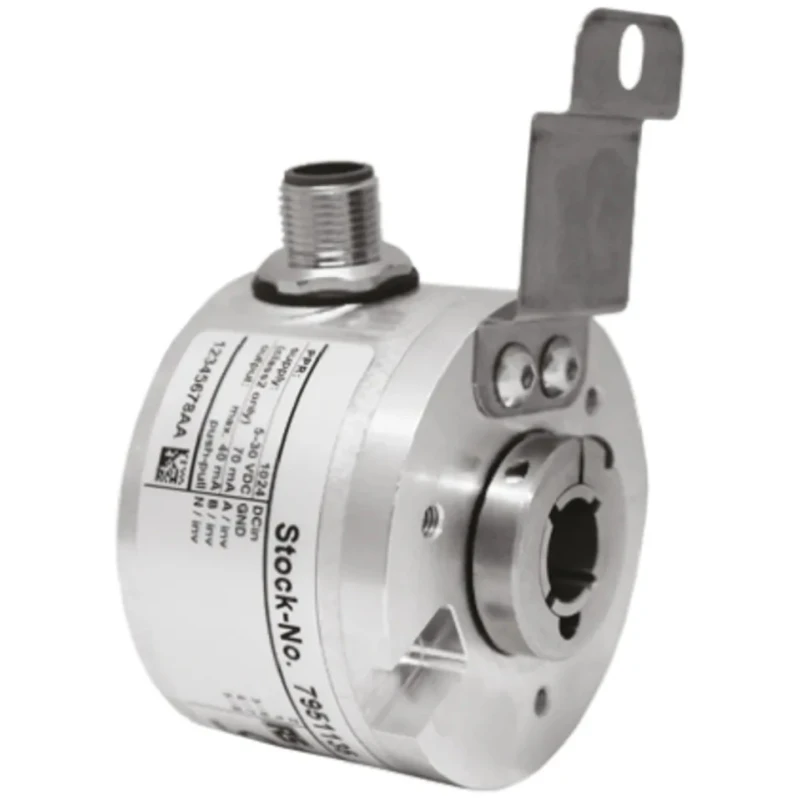

RS PRO Incremental Encoder 30V DC 5000 PPR HTL Inverted Signal Hollow Shaft 12 mm 795-1144
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Operating Temperature | -20 °C to +80 °C |
| Model | 795-1144 |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Flange |
| Series | RS PRO |
| Overall Width | 58mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 12mm |
| Overall height | 46.5mm |
| Switching Frequency | 200kHz |
| Shaft Type | Hollow |
| Terminal type | 8-Pin |
| Pulses per Revolution | 5000ppr |
| Standards/Approvals | EN, CE |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 44.5mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | HTL Inverted |
Key Features
- Provides 5000 pulses per revolution for fine resolution.
- Operates with a maximum speed of 6000 rpm.
- Features a 12 mm hollow shaft for flexible mounting options.
- HTL inverted output signal ensures high noise immunity.
- IP65 rated for protection against dust and water.
- Operating temperature from -20°C to 80°C.
- Maximum supply voltage of 30V DC.
- 8-pin terminal type for reliable electrical connection.
Product Description
RS PRO 795-1144 Incremental Encoder is a high-quality industrial sensor designed to deliver precise motion control feedback with a supply voltage of 30V DC and a pulse resolution of 5000 ppr. It employs Incremental Encoder technology with HTL inverted output signals, making it suitable for demanding industrial automation and control applications requiring accurate position and speed measurement.
This encoder features a hollow shaft flange mount with a 12 mm shaft diameter, allowing for versatile integration into machinery. The device supports a maximum rotational speed of 6000 rpm and provides a switching frequency of up to 200 kHz, making it well-suited for high-speed applications.
Engineered for reliability, the encoder is rated IP65 for protection against dust and water ingress, ensuring operational stability even in harsh industrial environments. It operates efficiently within a temperature range of -20°C to +80°C, maintaining precision under temperature variations commonly encountered in manufacturing and processing plants.
The robust design includes stainless steel construction, offering durability and extended service life. The 8-pin terminal wiring ensures secure electrical connectivity, while compliance with EN and CE standards guarantees quality and safety.
Applications include use in industrial automation systems, motion control sensors, manufacturing equipment, robotics, and other environments requiring precise rotational position sensing. The hollow shaft design enables easy installation and maintenance.
Provides 5000 pulses per revolution for fine resolution. Operates with a maximum speed of 6000 rpm. Features a 12 mm hollow shaft for flexible mounting options. HTL inverted output signal ensures high noise immunity. IP65 rated for protection against dust and water.
Operating temperature from -20°C to 80°C. Maximum supply voltage of 30V DC. 8-pin terminal type for reliable electrical connection. Switching frequency up to 200 kHz supports high-speed applications. Durable stainless steel construction enhances longevity.
Discover our wide range of motion control sensors and encoders for industrial and automation applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a pulse resolution of 5000 pulses per revolution (PPR).
It operates with a maximum speed of 6000 revolutions per minute (rpm).
The encoder features a hollow shaft with a diameter of 12 mm.
It utilizes an HTL inverted output signal type, ensuring high noise immunity.
The encoder is rated IP65, providing protection against dust and water ingress.
It operates efficiently within a temperature range of -20°C to +80°C.
This model supports a switching frequency of up to 200 kHz, suitable for high-speed applications.
It features an 8-pin terminal type for reliable electrical connectivity.
The overall dimensions are 58 mm in width, 46.5 mm in height, and 44.5 mm in depth.
Yes, it complies with EN and CE standards, ensuring quality and safety.
It features a hollow shaft flange mount, allowing for versatile integration into machinery.
The encoder is manufactured in Germany.
