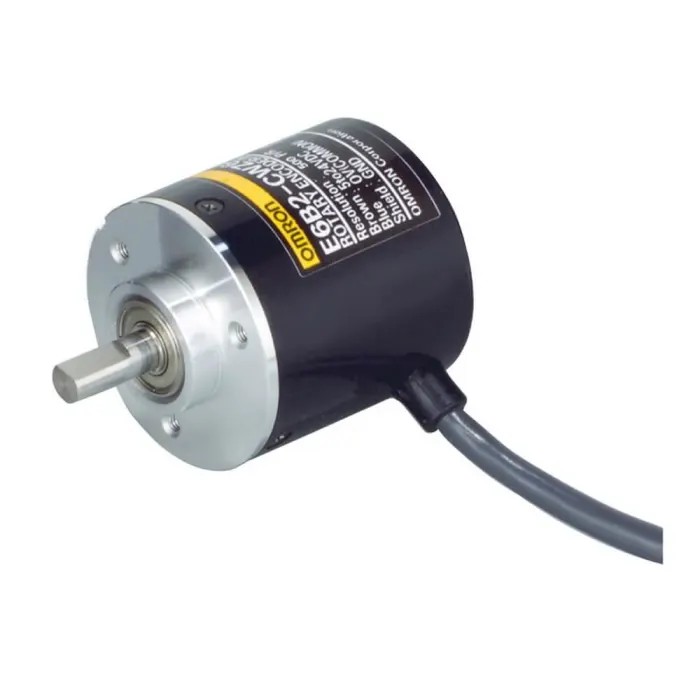

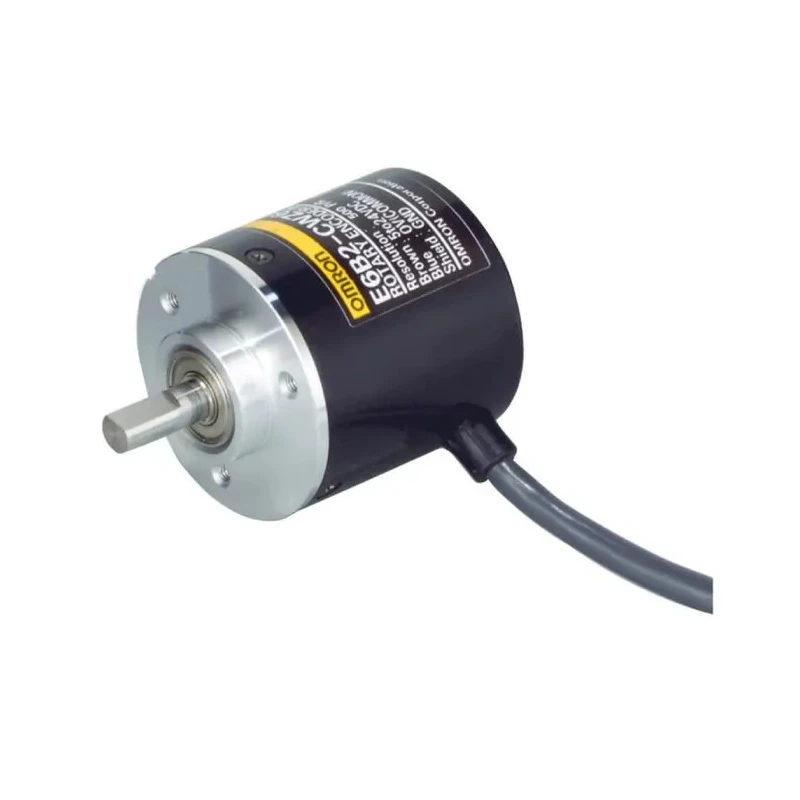

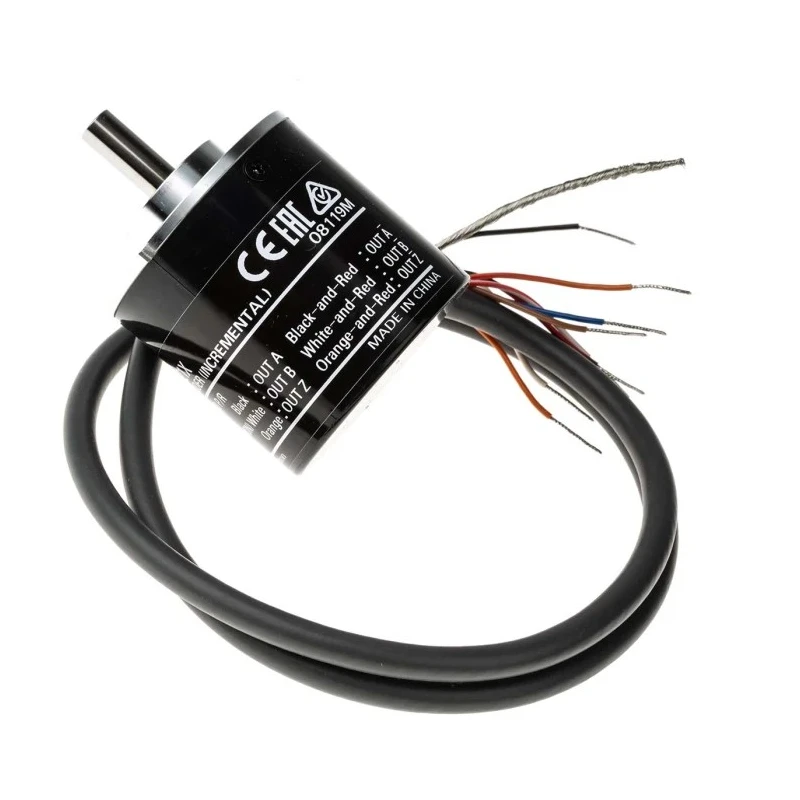

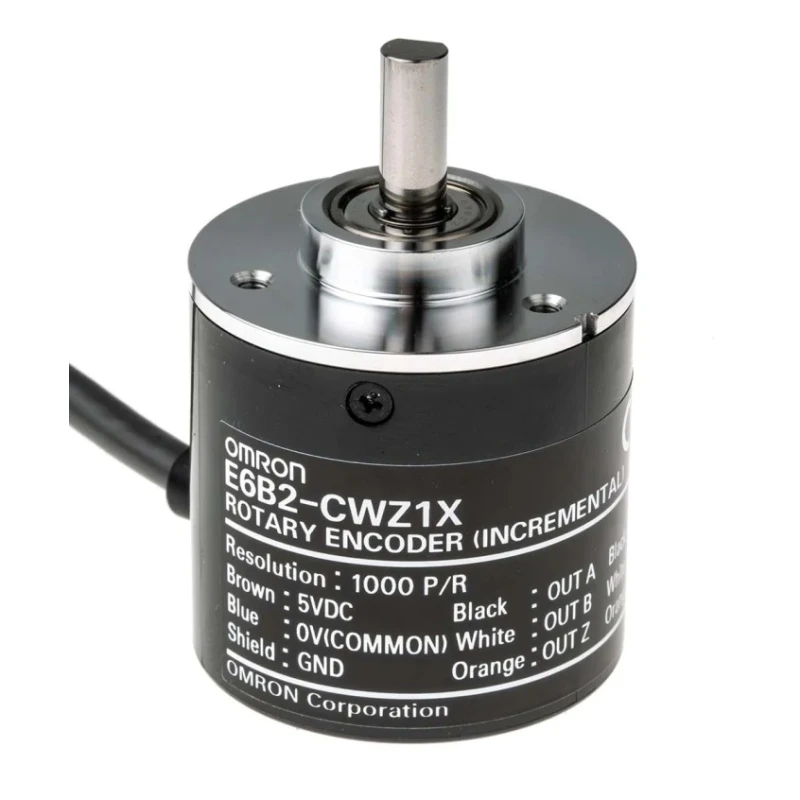

Omron E6B2 Series Incremental Encoder 5V DC, 1000 Pulses Per Revolution, Line Driver Output, Solid E6B2-CWZ1X 1000P/R 0.5M

Omron E6B2-CWZ1X 1000P/R 0.5M is a high-precision incremental encoder designed for industrial automation and motion control systems. Operating on 5V DC, this encoder provides 1000 pulses per revolution (PPR) with a line driver output ideal for minimizing signal degradation over long cable runs.

The solid shaft design with a 6 mm diameter ensures strong mechanical coupling and durability under demanding conditions. Its compact form factor, measuring 59 mm in height, 40 mm in width, and 40 mm in depth, allows integration into tight spaces. With a maximum rotation speed of 6000 rpm, it is suitable for fast and accurate position feedback applications.

The encoder withstands operating temperatures from -10°C up to 70°C and features an IP50 ingress protection rating, offering dust protection and moderate resistance to water exposure. The chassis mount type and pre-wired cable interface make it straightforward to install within various industrial equipment.

Key features include incremental signal technology for fine resolution, line driver output compatible with RS-422A for long-distance signal integrity, and adherence to IEC standards promoting reliability and interoperability. This encoder is well-suited for automation systems, robotics, CNC machinery, conveyor speed monitoring, and precise feedback loops in electrical and mechanical systems.

Omron E6B2 series Incremental Encoders are engineered for demanding manufacturing, water treatment, HVAC, and industrial automation applications where accuracy, durability, and consistent performance are critical.

This encoder uses incremental technology for accurate position tracking. The line driver output enables reliable long-distance signal transmission. It features a robust solid shaft with 6 mm diameter for mechanical stability.

Designed to operate at speeds up to 6000 rpm for high-performance applications. Operational temperature range from -10°C to 70°C allows usage in diverse environments. IEC compliant with IP50 rating protects against dust and moderate water exposure.

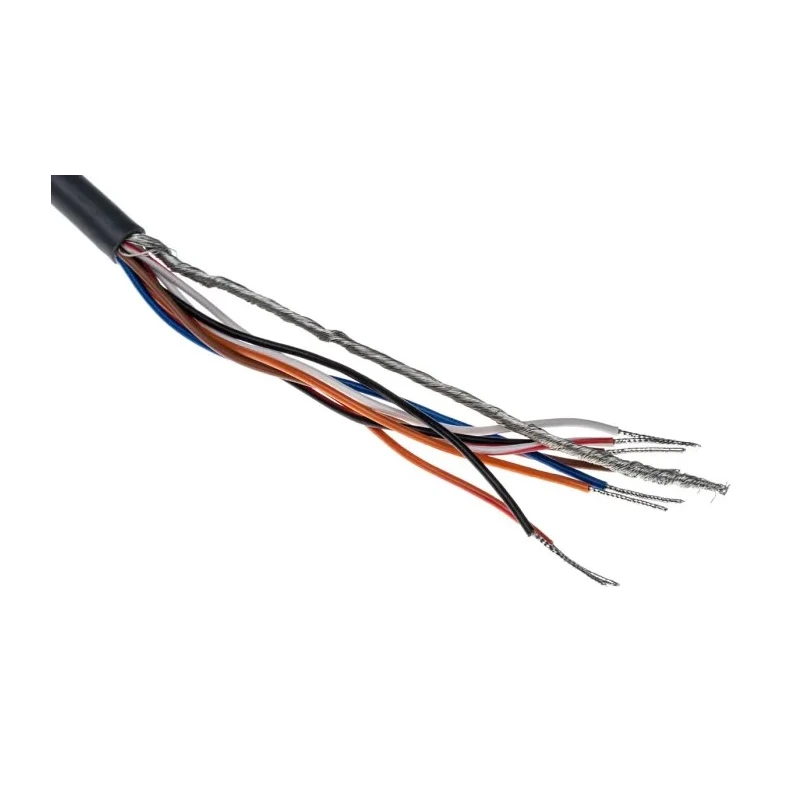

The pre-wired cable interface facilitates easy installation and integration. Compact dimensions of 59 mm height, 40 mm width, and 40 mm depth suit various mounting configurations. Explore more in the Electronics & Electricals category at EnvMart for advanced motion control sensors and automation solutions.
