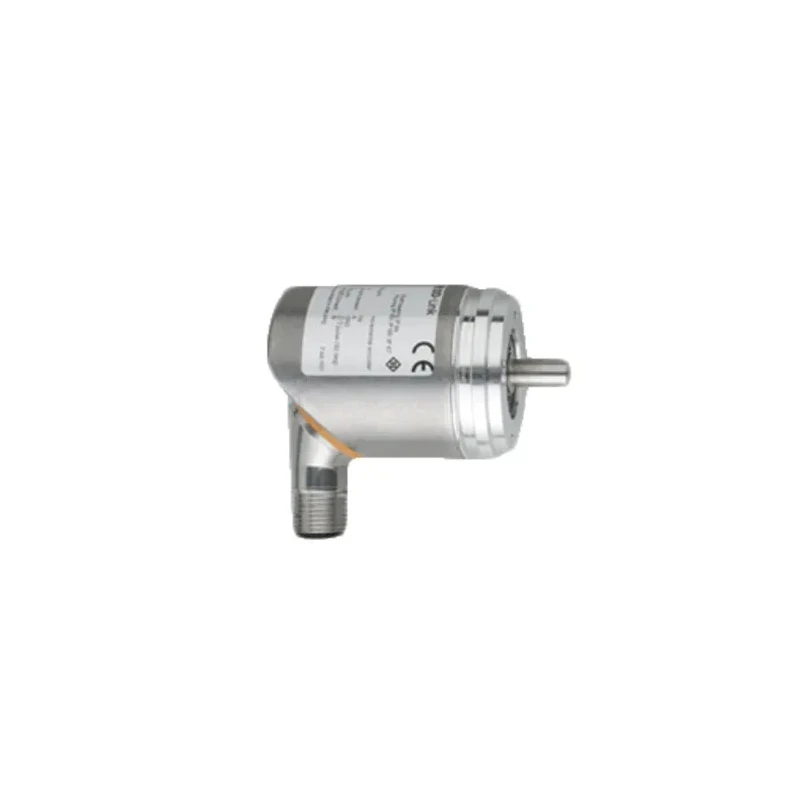

ifm electronic RB3100 Series Incremental Encoder 30V dc, 9999 ppr, TTL and HTL Output, Solid Shaft 6 mm RB3100

ifm electronic RB3100 Series Incremental Encoder is a high-performance incremental encoder designed for industrial motion control applications. It operates with a 30V dc maximum supply voltage and delivers an impressive resolution of 9999 pulses per revolution, enabling precise position and speed measurement.

This encoder features a solid shaft with a 6 mm diameter and robust construction rated IP64, protecting against dust ingress and water splashes. Its compact dimensions of 65 mm depth, 36.5 mm height, and 33 mm width make it suitable for integration in tight spaces.

Designed for harsh environments, it operates across a wide temperature range from -40°C to 85°C, ensuring reliable performance in various industrial and manufacturing conditions. The output supports both TTL and HTL signal types, providing compatibility with multiple control systems.

The RB3100 includes an IO-Link interface that facilitates advanced configuration, diagnostics, and communication capabilities. Its Synchro Flange Mount design ensures secure and stable installation. With a maximum rotation speed of 12000 rpm and a switching frequency of 1 MHz, it meets high-speed and high-precision requirements.

The encoder also benefits from a magnetic detection system and comes with a broad assortment of accessories including programing software, cables, memory plugs, sockets, spring discs, couplings, measuring wheels, and brackets, enhancing its usability in complex automation setups.

Supports TTL and HTL output signals for versatile interfacing. High resolution of up to 9999 pulses per revolution enables precise control. Robust solid shaft with 6 mm diameter for secure coupling. Wide operating temperature range from -40°C to 85°C for harsh conditions.

Compact size: 65 mm depth, 36.5 mm height, 33 mm width for flexible mounting. IP64 rated enclosure for protection against dust and water spray. IO-Link interface for enhanced communication and configuration. Synchro flange mounting ensures stable and reliable installation.

Maximum rotational speed of 12000 rpm suitable for fast machines. Switching frequency of 1 MHz supports high-speed applications.

This Incremental Encoder is well-suited for industrial automation, manufacturing, robotics, material handling, and motion control applications where precise position feedback is critical. The availability of extensive accessories allows easy integration and customization.
