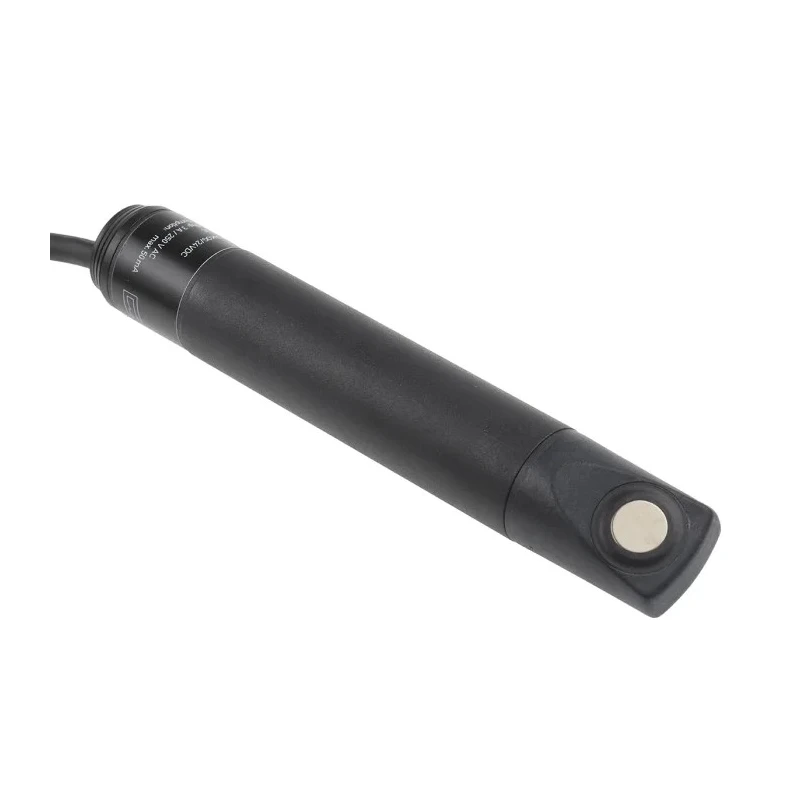

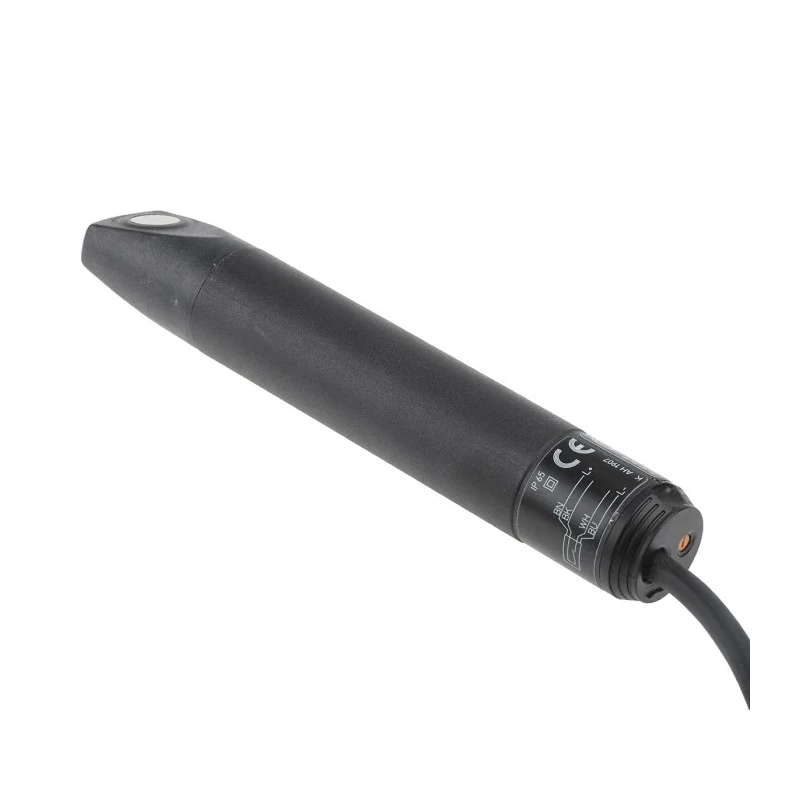

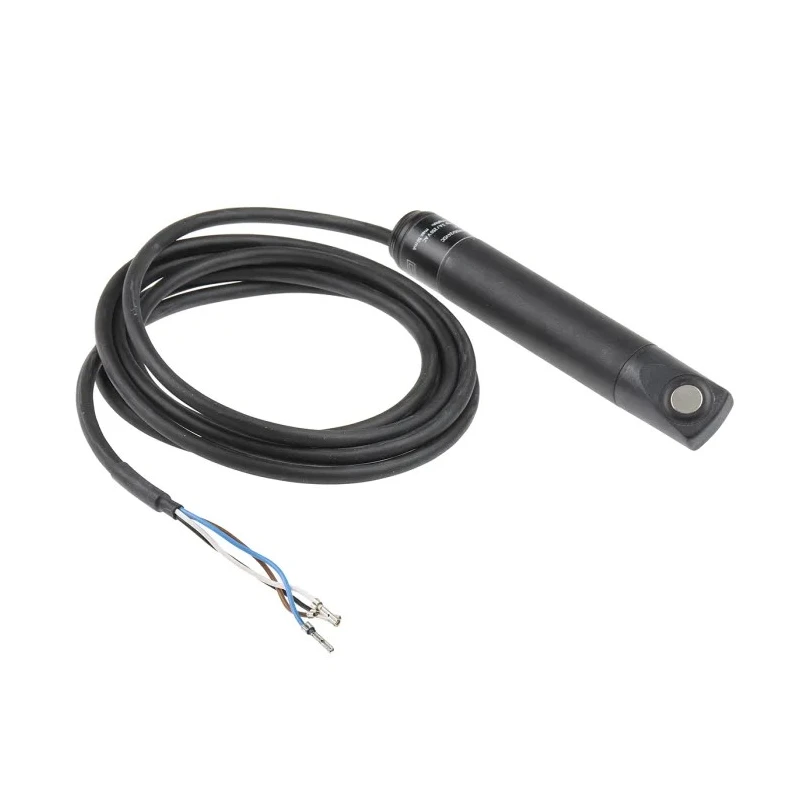

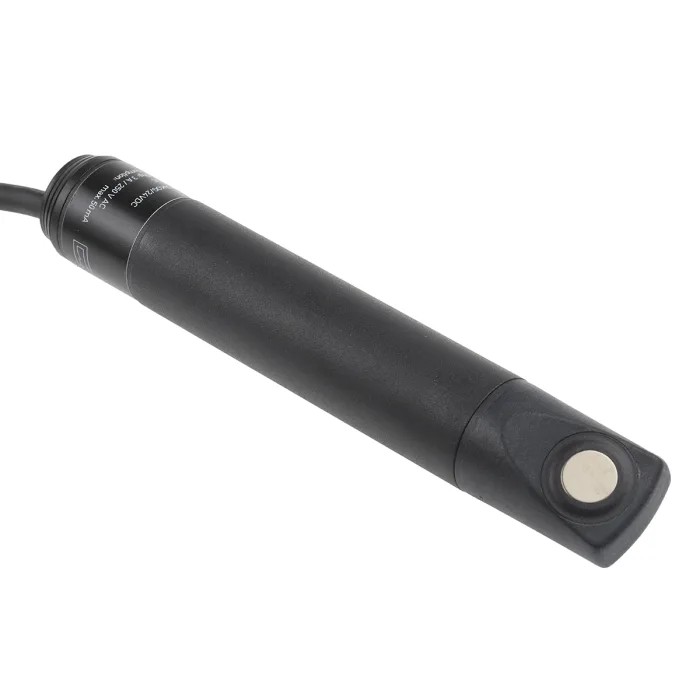

ifm electronic SL5101 Series Flow Controller, Maximum Flow Rate 1000cm³/s, Relay Output, 23 mm Pipe Diameter, 24V DC SL5101
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | ifm electronic |
| Model | SL5101 |
| Current Rating | 3A |
| Series | SL5101 |
| Maximum Operating Temperature | 50°C |
| Display Screen | LED |
| Minimum Operating Temperature | -10°C |
| Control Output | Relay |
| Terminal type | Cable |
| Maximum Flow Rate | 1000cm³/s |
| Standards/Approvals | UL, CE |
| Maximum Supply Voltage | 24V dc |
| Maximum Pipe Diameter | 23mm |
Key Features
- Operates at 24V DC supply voltage.
- Suitable for 23 mm pipe diameter installation.

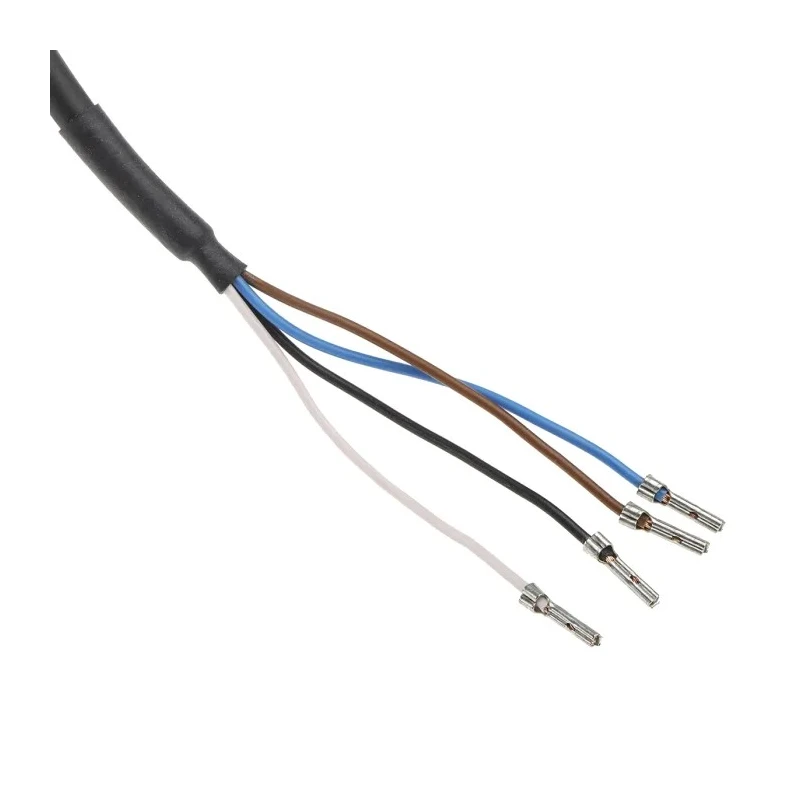

- Provides signal output via potential-free relay contacts.
- Features LED display screen for power and airflow status indication.
- Operating temperature range from -10°C to 50°C.
- Adjustable switching point for airflow measurement.
- Uses calorimetric principle for accurate airflow sensing.
- Supplied with mounting clamp for flexible immersion depth setting.
Product Description
ifm electronic SL5101 Series Flow Controller is designed for reliable and accurate airflow monitoring in industrial and commercial applications. This sensor operates with a maximum flow rate of 1000cm³/s and uses relay output signal to provide control signals for connected systems.
The device functions on the calorimetric principle, allowing it to measure airflow velocity ranging from 1 to 10 m/sec. It is powered by a 24V DC supply and fits pipes with a maximum diameter of 23 mm, making it suitable for installation in ventilation ducts or suction operations.

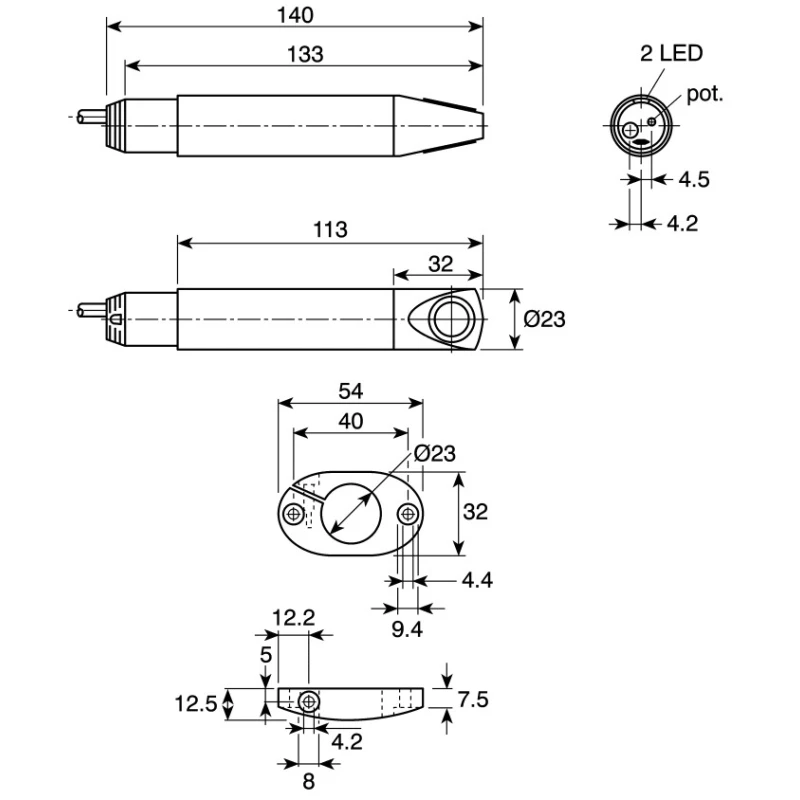

The immersion depth into the duct can be precisely set between 32 mm and 120 mm using the supplied mounting clamp. A potentiometer enables intuitive adjustment of the switching point to detect low airflow conditions effectively. An LED display indicates power and airflow presence for easy operation diagnostics.
Engineered with high safety standards, the sensor conforms with CE and UL certifications and complies with DIN EN 61000-6-2 and DIN EN 61000-6-3 electromagnetic compatibility standards. The sensor is rated IP65, providing protection against dust and water ingress for robust field operation.
Typical industrial use cases include integration into ventilation systems in building automation, airflow monitoring within HVAC systems, and use in suction or extraction equipment for process control and safety monitoring.
Operates at 24V DC supply voltage. Maximum flow rate capacity of 1000cm³/s. Relay output with potential-free contacts for control. LED indication of power and airflow status. Flexible immersion depth adjustment with mounting clamp.
Temperature operating range from -10°C to 50°C. Conforms to UL and CE standards for safety and quality. IP65 rated for dust and water protection. Suitable for building automation and HVAC flow monitoring. Manufactured in Romania ensuring European quality standards.
Explore more sensors and Flow Controllers in the Electronics & Electricals category at EnvMart, tailored for industrial control and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this model is 1000 cm³/s.
It operates within a temperature range of -10°C to 50°C.
This unit provides a relay output with potential-free contacts for control signals.
It is suitable for installation in pipes with a maximum diameter of 23 mm.
The immersion depth can be adjusted between 32 mm and 120 mm using the supplied mounting clamp.
It features an LED display screen that indicates power and airflow status.
It uses the calorimetric principle for accurate airflow sensing.
The device operates at a supply voltage of 24V DC.
It conforms to UL and CE standards, ensuring safety and quality.
The current rating for this model is 3A.
This unit is rated IP65, providing protection against dust and water ingress.
Typical applications include integration into ventilation systems, airflow monitoring in HVAC systems, and use in suction or extraction equipment.
