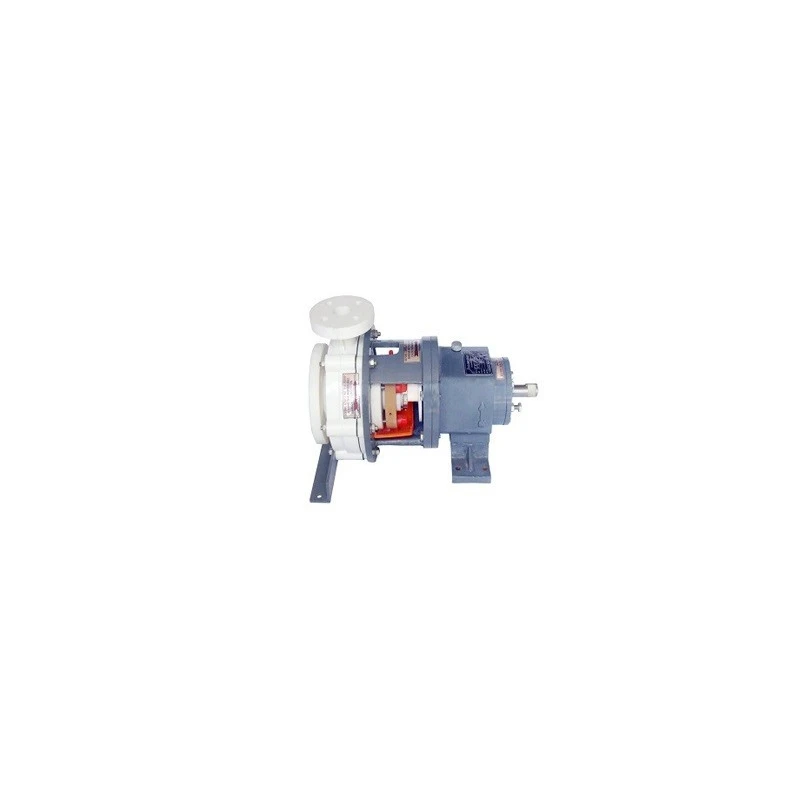

Centrifugal Polypropylene Process Pump 12.5 HP GHE 40
Specifications
| suction x Discharge | 50x40 |
|---|---|
| Flow Rate | 45 - 0 m3/hr |
| Model | GHE-40 |
| HP | 12.5 |
| RPM | 2880 |
| Impeller | 190 |
| Head In Meter | 25 - 49 |
Key Features
- Design to suit extremely corrosive duties in the process and chemical industries
- Suitable for continuous service
- Self venting type casing
- Dynamically and Hydraulically balanced impeller with aerodynamic profile vanes
Product Description
Centrifugal polypropylene process pump 12.5 HP Model GHE 40 is commonly used for chemicals such as Fresh Water, Salt Water, DI Water, Citric Acid, Fluosilicic Acid, Formaldehyde, Muriatic Acid, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide, Sulfuric Acid, and many more.ApplicationFor handling liquids in various industries like textile, paper cellulose, sugar, and steel. foods. having temperature range, materials, etc.Excellent for transfer and loading -unloading like HSI, Sulphuric Acid Ialkali, and caustic Liquid.The natural choice for pickling line & scrubber in steel plants.Ideal for the circulation of chemicals in the metal finishing industry.Water treatment plant, effluent treatment plant, electroplating, pickling & steel rolling mills.High capacity transfer pump, filter press for dyes & chemicals, descaling oil & other fuels.Caustic soda plants: chlorinated Brine, HCI, DiluteH2SD4, etc.Phosphoric Acid Plants: H3P04, H2804, HF and their mixtures with or without solid (gypsum) up 0 40%cinc.Gas Washing Plants :Scrubbed liquids containing CL2, BR2, F2, I2, S02,S03, C02, NH3, Gases etc...
- Pump casing is provided with external metal metal ring for construction stability
- Temp range is up to 120 D
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GHE 40 pump has a flow rate ranging from 0 to 45 m³/hr.
This model has a power rating of 12.5 HP.
The suction and discharge dimensions of the GHE 40 are 50x40 mm.
The operating RPM of this pump is 2880.
The maximum operating temperature for this model is up to 120°C.
This pump is commonly used in industries such as textile, paper, food processing, and metal finishing.
Yes, it features a self-venting casing and a dynamically and hydraulically balanced impeller with aerodynamic profile vanes.
The external metal ring is provided for construction stability of the pump casing.
It is ideal for applications such as water treatment, effluent treatment, and chemical circulation in various processes.
The impeller diameter for this model is 190 mm.
