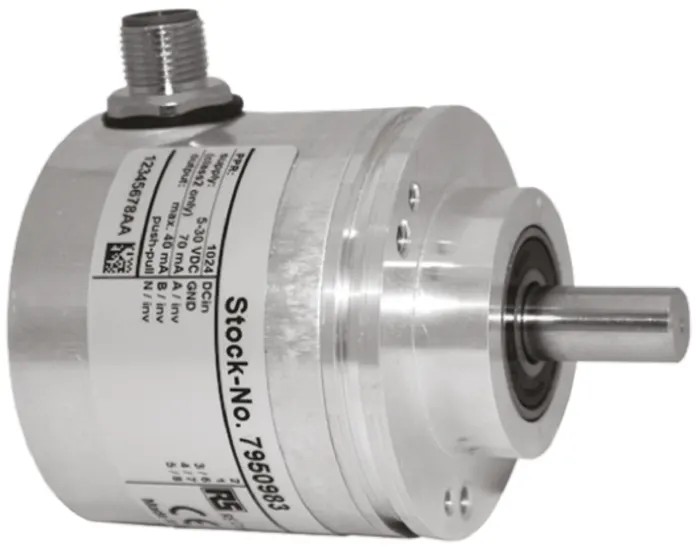

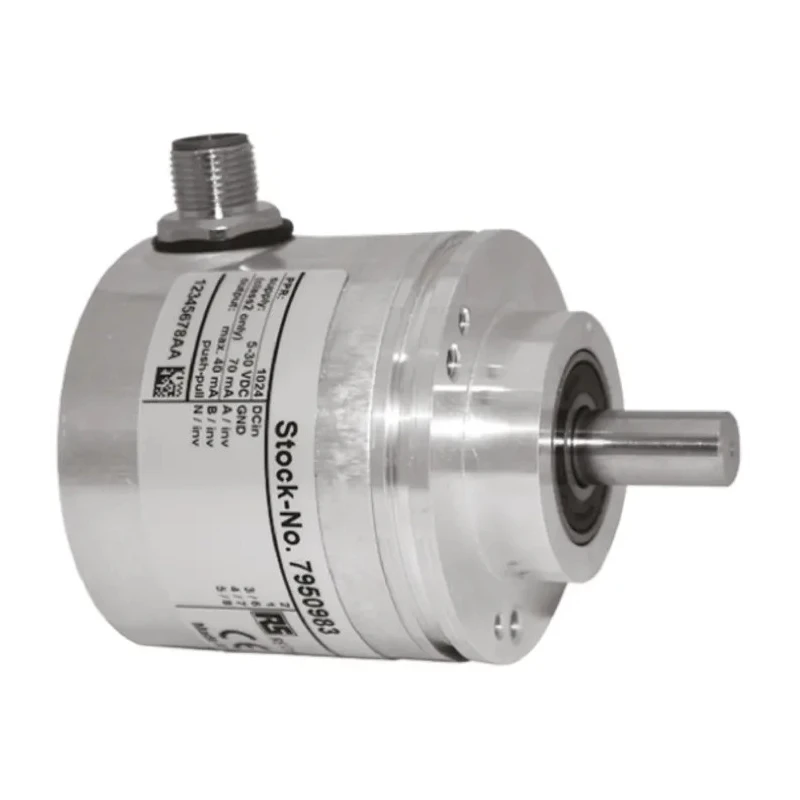

RS PRO Incremental Incremental Encoder 30V DC, 2048 ppr, HTL Inverted Signal, Solid Shaft 10 mm 795-1062
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Model | 795-1062 |
| IP Rating | IP67 |
| Mount Type | Clamping Flange Mount |
| Standards | DIN VDE 0160 |
| Series | RS PRO |
| Overall Width | 58mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 10mm |
| Overall height | 42mm |
| Switching Frequency | 200kHz |
| Shaft Type | Solid |
| Terminal type | 8-Pin |
| Interface Type | 8-Pin Connector |
| Pulses per Revolution | 2048ppr |
| Standards/Approvals | CE, EN |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 85mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 8000rpm |
| Output Signal Type | HTL Inverted |
| High protection class according to DIN 40 050 | IP65 (shaft), IP67 (cover) |
Key Features
- The encoder operates with a maximum supply voltage of 30V DC.
- It features a solid shaft with a diameter of 10 mm for robust mechanical connection.
- Designed with an 8-pin connector interface and terminal type for reliable electrical connections.
- High IP rating of IP67 ensures protection against dust and water ingress in industrial environments.
- Equipped with a clamping flange mount for secure and stable installation.
- Suitable for operating temperatures ranging from -20°C to 80°C, enabling use in diverse conditions.
- Supports a maximum rotational speed of 8000 RPM and a switching frequency of 200 kHz for high-performance applications.
- Constructed with a sturdy industrial aluminum housing complying with DIN VDE 0160 standards.
Product Description
RS PRO 795-1062 Incremental Encoder is engineered for industrial motion control applications requiring high precision and reliability. It provides 2048 pulses per revolution (ppr) with an HTL inverted output signal, suitable for recording rotational speed, position, distance, or speed with accuracy.
The encoder features a solid 10 mm diameter shaft designed for robustness and secure mounting using a clamping flange. Its sturdy industrial aluminum housing offers high protection classes, including IP65 for the shaft and IP67 for the cover, ensuring durability in harsh environments.
Operating with a 30V DC maximum supply voltage, this encoder supports a maximum speed of 8000 RPM and a switching frequency up to 200 kHz. It is designed for temperature ranges from -20°C to 80°C, making it versatile across varied industrial settings.
Additional features include early warning output and high precision chip analysis, enhancing operational reliability and predictive maintenance capabilities. Compliance with DIN VDE 0160 and CE standards guarantees quality and safety.
This product is ideal for use in manufacturing, HVAC control systems, laboratory automation, water treatment facilities, and other industrial automation sectors requiring accurate position and speed measurement.
The encoder technology is incremental with a high pulse per revolution count of 2048 ppr. Output signal type is HTL inverted, providing clear signal distinctness. Interface and terminal types utilize an 8-pin connector ensuring secure connectivity.
High ingress protection with IP67 rating for moisture and dust resistance. Mounting using clamping flange mount adds mechanical stability.
RS PRO Incremental Encoders combine high performance, durability, and precision, making them an excellent choice for demanding industrial measurement applications. Browse more from the RS PRO brand and similar encoders on EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30V DC.
It provides 2048 pulses per revolution (ppr).
This encoder features an HTL inverted output signal type.
The encoder supports a maximum rotational speed of 8000 RPM.
It operates within a temperature range of -20°C to 80°C.
The encoder has an IP67 rating, ensuring protection against dust and water ingress.
This model uses a clamping flange mount for secure installation.
The overall dimensions are 58mm in width, 42mm in height, and 85mm in depth.
The maximum switching frequency is 200 kHz.
It complies with DIN VDE 0160 and CE standards.
It features a solid shaft with a diameter of 10 mm.
The encoder is constructed with a sturdy industrial aluminum housing.
