Phihong 1 Port PoE Injector 240V AC Input 30W Power 56V DC Output 536mA POE29U-1AT(PL)D

Free Delivery in India | Lowest Global Shipping Charges

Phihong 1 Port PoE Injector 240V AC Input 30W Power 56V DC Output 536mA POE29U-1AT(PL)D

Name: Phihong 1 Port PoE Injector 240V AC Input 30W Power 56V DC Output 536mA POE29U-1AT(PL)D
Brand: Phihong
SKU: 107343
Price: 59.43 USD
Availability: InStock



Category Power Supplies & Transformers Brand Phihong Condition New

Specifications

Country of Origin	China
Brand	Phihong
Power	30W
Efficiency	80%
Length	140mm
Model	POE29U-1AT(PL)D
Gross Weight	7.76oz
Width	65mm
Mount Type	Desktop
Series	POE29U
Output Current	536mA
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Input Voltage	240V ac
Output Voltage	56V dc
Electrical Phase	1
Standards/Approvals	CB, cUL/UL(60950)/(62368-1), BIS, EAC, CE, BSMI, CCC, KC+KCC, RCM, IRAM(TUV-s)
Input Connector Type	IEC320 C14 three wire
Number of Ethernet Ports	1

Key Features

Supports IEEE802.3at compliant Power over Ethernet applications.
Single output port with desktop mount for easy installation.
Equipped with IEC320 C14 three wire AC input connector.
Over voltage and over current protection enhance device safety.
Operating temperature range from -20°C to 50°C for diverse environments.
Non-vented casing ensures protection and durability.
Compatible with IP telephones, security cameras, and wireless access points.
Compact dimensions of 140mm length and 65mm width suit various setups.

Product Description

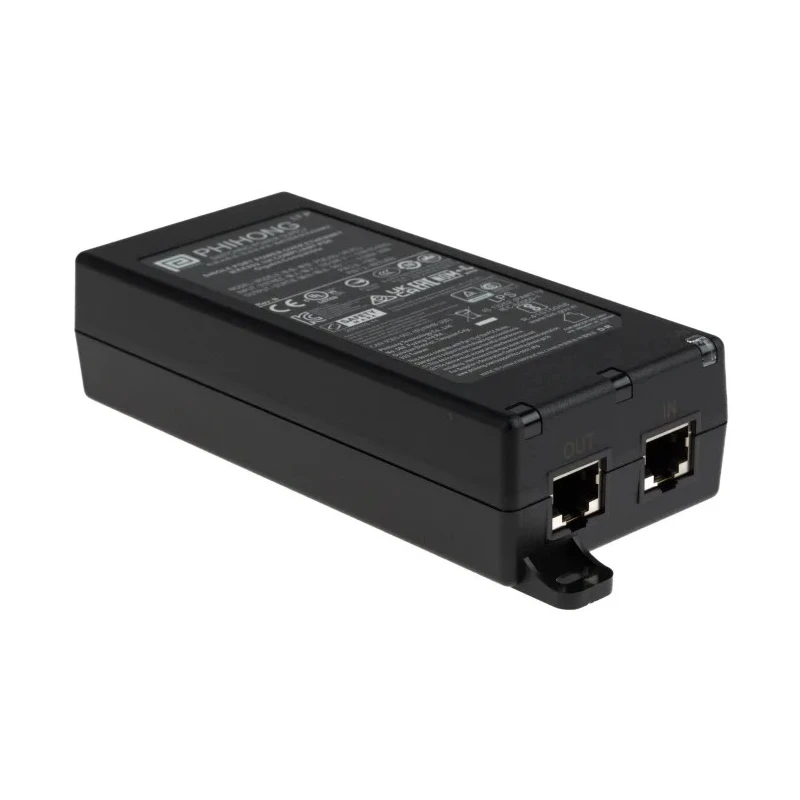

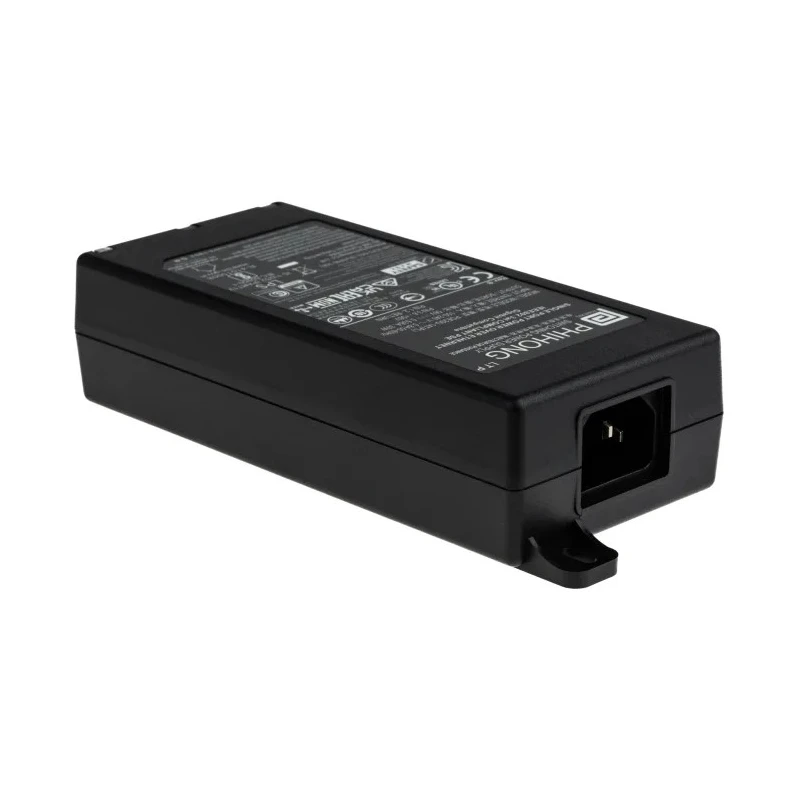

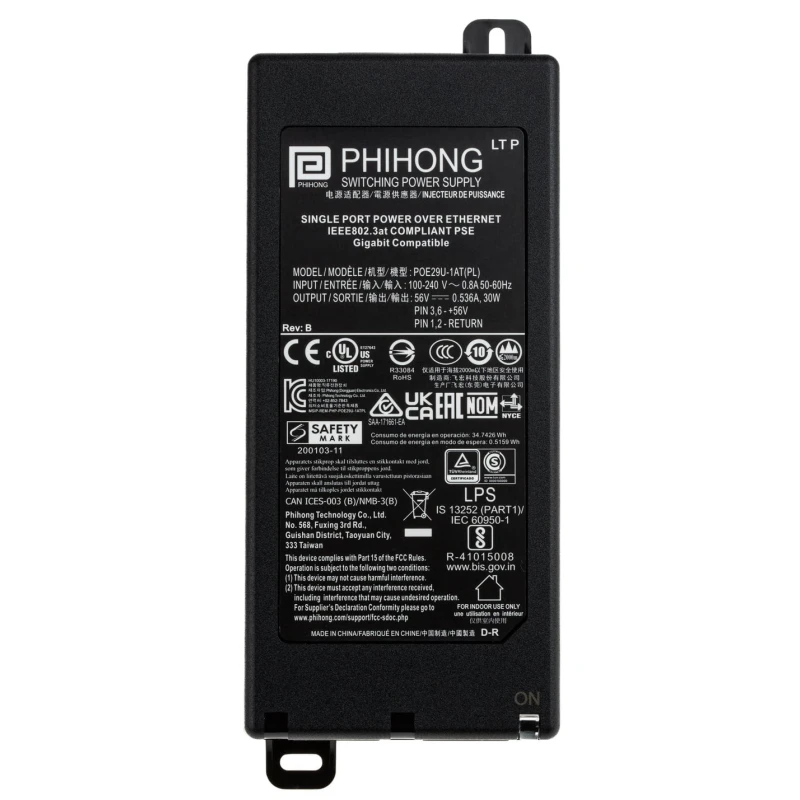

Phihong POE29U-1AT(PL)D is a 1 Port Power over Ethernet (PoE) Injector designed to provide up to 30W of power with a 240V AC input and 56V DC output at 536mA. It complies with IEEE802.3at standards, making it ideal for powering a range of Ethernet-enabled devices including IP telephones, security cameras, wireless access points, IP print servers, Bluetooth, and WiMAX access points.

The device features a desktop mount type with a robust non-vented case construction that ensures protection in various industrial and commercial environments. It includes over voltage and over current protection functionalities to safeguard connected equipment.

The injector is equipped with a standard IEC320 C14 three-wire input connector, supporting a single DC output port. It is rated for an operating temperature range of -20°C to 50°C, delivering reliable performance in diverse conditions. With a compact size of 140mm length and 65mm width, it fits seamlessly into network setups.

Phihong POE29U-1AT(PL)D meets multiple international standards and approvals including CB, cUL/UL (60950)/(62368-1), BIS, EAC, CE, BSMI, CCC, KC+KCC, RCM, and IRAM (TUV-s), underscoring its quality and safety compliance.

This product is manufactured in China and is designed for use in industrial, commercial, and telecommunications networking applications requiring reliable PoE power injection. Supports IEEE802.3at PoE standard for power delivery.

Single port injector suitable for varied network devices. Over current and over voltage protection enhances operational safety. Compact desktop mount design for easy deployment. Wide temperature operating range from -20°C to 50°C.

Robust non-vented casing for enhanced durability. Complies with extensive international safety and performance standards. Ideal for IP telephones, security cameras, and wireless access points. Explore more innovative power supply solutions in the Electronics & Electricals category at EnvMart.
