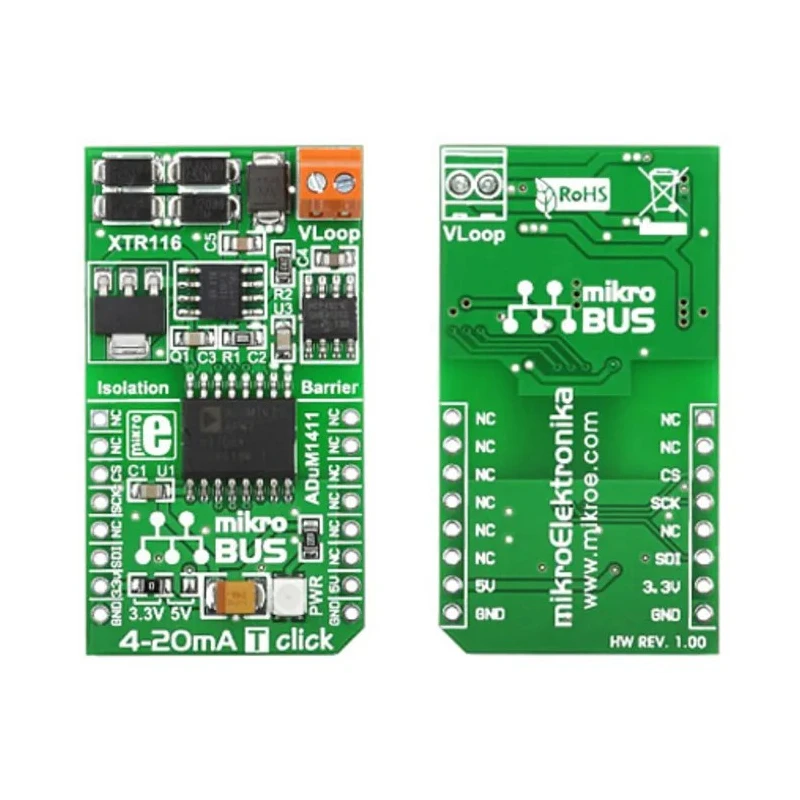

MikroElektronika 4-20mA T Click Add On Board Signal Conversion Development Tool MIKROE-1296
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-1296 |
| Interface Type | UART, USB |
| Standards/Approvals | RoHS |
| Kit Classification | Add On Board |
| Featured Device | Mikroe-1296 |
| Kit Name | 4-20mA T Click |
| Converter Type | ADC/DAC |
Key Features
- Complies with mikroBUS™ pinout standard for easy integration.
- Features ADu M1411 quad-channel digital isolator for enhanced signal integrity.
- Includes MCP4921 12-bit DAC for precise digital-to-analog conversion.
- Incorporates XTR116 4-20 mA current loop transmitter for accurate current output.
- Works with 4-20 mA R Click board to complete 4-20 mA current loop applications.
- Perfect for industrial process control and test design systems.
- Header strips are pre-soldered for convenience.
Product Description
MikroElektronika MIKROE-1296 4-20mA T Click Add On Board is a signal conversion development tool that serves as an add-on board compatible with mikroBUS™ interfaces, featuring high accuracy and industrial-grade components for current loop applications.
This board utilizes the ADu M1411 quad-channel digital isolator which ensures signal isolation and integrity for sensitive industrial environments. Its MCP4921 12-bit DAC provides precise digital-to-analog conversion required for control signal processing.
The XTR116 4-20 mA current loop transmitter integrated into the board allows it to set the output loop current according to input digital signals received via the SPI interface. When paired with the 4-20 mA R Click board, it completes the 4-20 mA current loop standard widely used in industrial process control and test design systems.
The board’s adherence to the mikroBUS™ pinout standard makes it highly compatible with numerous microcontroller boards and development platforms, enabling seamless integration in embedded systems.
Additional features include header strips that come pre-soldered, simplifying installation and setup processes for developers and engineers. This add-on is ideal for industrial, laboratory, manufacturing, and automation applications requiring robust signal conversion and current loop output capabilities.
Complies with mikroBUS™ pinout standard for easy integration. Features ADu M1411 quad-channel digital isolator for enhanced signal integrity. Includes MCP4921 12-bit DAC for precise digital-to-analog conversion. Incorporates XTR116 4-20 mA current loop transmitter for accurate current output.
Works with 4-20 mA R Click board to complete 4-20 mA current loop applications. Perfect for industrial process control and test design systems. Header strips are pre-soldered for convenience. Explore more Signal Conversion Development Tools and add-on boards at EnvMart for industrial and embedded system development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This board serves as a signal conversion development tool, designed for 4-20 mA current loop applications, providing precise digital-to-analog conversion and current output capabilities.
It features the ADu M1411 quad-channel digital isolator, which ensures signal isolation and integrity, making it suitable for sensitive industrial environments.
The board includes an MCP4921 12-bit DAC that allows for precise digital-to-analog conversion.
The XTR116 is a 4-20 mA current loop transmitter integrated into the board, enabling it to output a loop current based on the digital signals received via the SPI interface.
Yes, it complies with the mikroBUS™ pinout standard, ensuring easy integration with various microcontroller boards and development platforms.
This model supports UART and USB interface types for communication and data transfer.
The MikroElektronika 4-20mA T Click board is manufactured in India.
Yes, the header strips come pre-soldered, which simplifies the installation and setup processes for developers and engineers.
It complies with RoHS standards, ensuring it meets environmental and safety regulations.
Yes, it is designed for industrial process control and test design systems, making it suitable for various applications in those fields.
The MikroElektronika 4-20mA T Click is classified as an Add On Board, indicating its role as a supplementary component in development projects.
This unit utilizes both ADC and DAC converter types, facilitating both analog-to-digital and digital-to-analog conversions.
