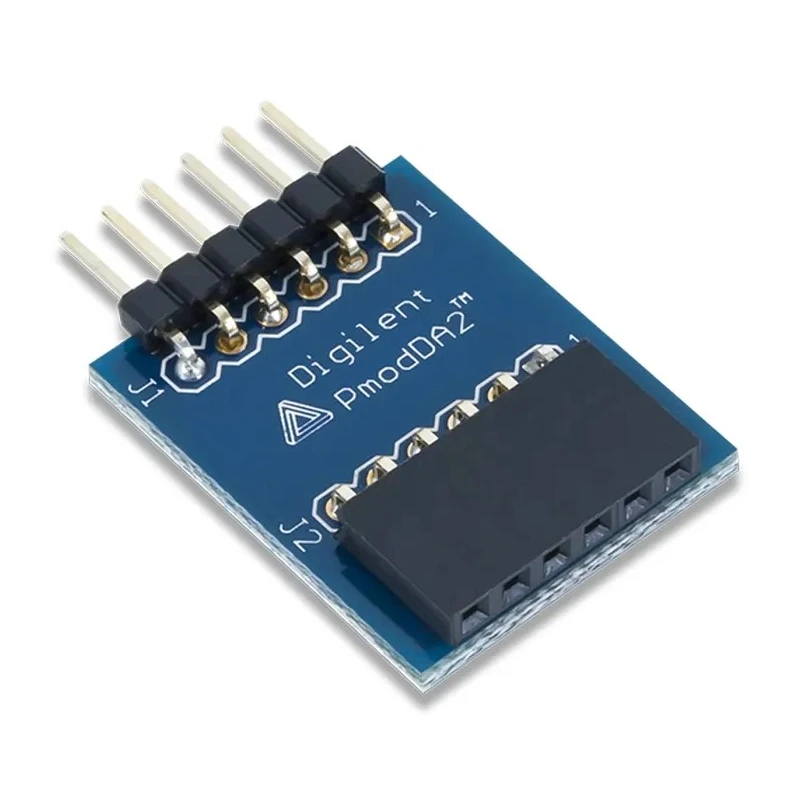

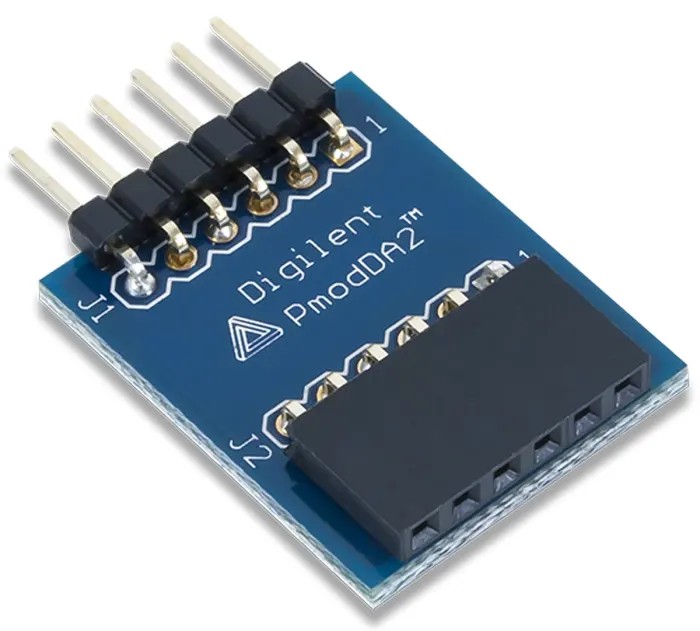

Digilent Digital-to-Analogue Converter Module Expansion Module 12 bit Resolution 25x20mm 410-113

Digilent 410-113 Digital-to-Analogue Converter Module is an advanced expansion module designed for accurate signal conversion in electronic development environments. Featuring the Texas Instruments DAC121S101 dual 12-bit device, this module enables highly precise analog output from digital input signals.

The Pmod DA2 module supports 2 simultaneous conversion channels, making it ideal for applications requiring multiple outputs such as instrumentation and control systems. It boasts a fast settling time of 8 microseconds, ensuring rapid response and stable analog signals.

Communication with host devices occurs via a serial protocol through a 6-pin Pmod connector with GPIO interface, providing flexibility in embedded systems and FPGA development boards. The module also includes a power down mode to minimize energy consumption when not in active use.

Connectivity options extend to USB 3.0, Bluetooth, HDMI, WiFi, Ethernet, MIPI-DSI, and USB 2.0 interfaces, supporting diverse integration use cases in signal processing and development toolkits.

Constructed with compliance to RoHS standards, the module ensures environmentally responsible manufacturing. Its compact form factor of 25 x 20 mm facilitates easy incorporation into development projects and signal conversion platforms.

The module includes a Texas Instruments DAC121S101 device for dual 12-bit digital-to-analogue conversion. It provides 2 simultaneous conversion channels ensuring efficient signal processing. Settling time of 8 microseconds enables rapid analog output stabilization.

Host communication is handled through a serial interface via a 6-pin Pmod connector with GPIO interface. Compact dimensions of 25 x 20 mm make it suitable for embedded and development applications. Power down mode is included for energy-efficient operations during idle periods.

The module supports various interface types including USB 3.0, Bluetooth, HDMI, WiFi, Ethernet, MIPI-DSI, and USB 2.0. Compliance with RoHS standards assures environmentally safe construction.

This product is ideal for industrial electronics development, laboratory instrumentation, embedded systems, FPGA integration, and educational STEM projects requiring high-quality digital-to-analogue conversion modules.
