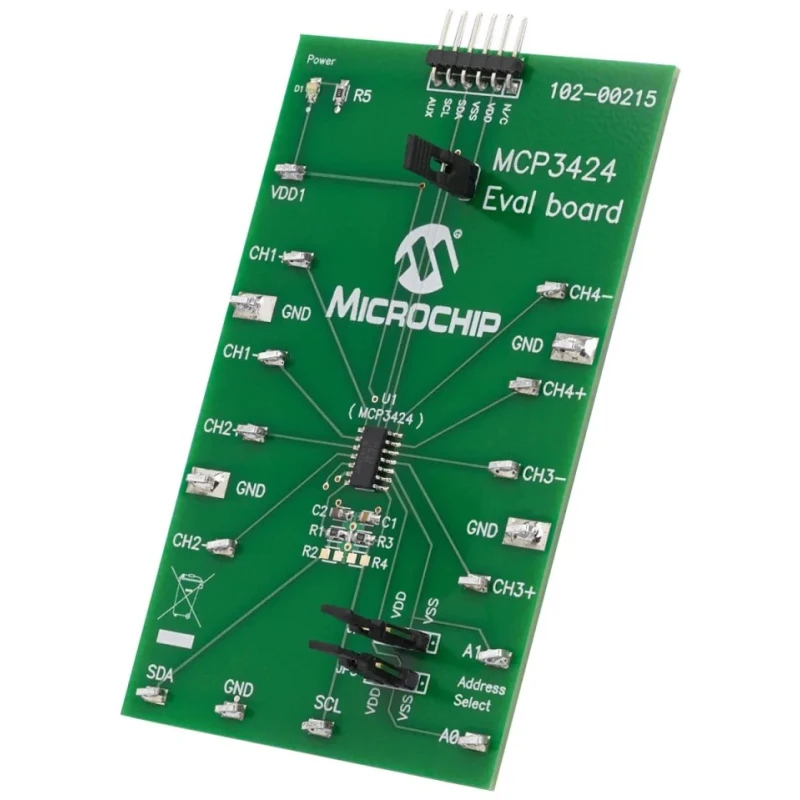

Microchip MCP3424EV 18-bit Four Channel Delta-Sigma ADC Development Board Evaluation Board MCP3424EV
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 18 bit |
| Brand | Microchip |
| Model | MCP3424EV |
| For Use With | PICkit Serial Analyzers - DV164122 |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | MCP3424 |
| Kit Name | MCP3424 18-bit four channel Delta-Sigma ADC Development Board |
| Converter Type | ADC |
| See RS Stock no | 381-554 |
Key Features
- Features 18-bit resolution ADC for high accuracy signal conversion.
- Compact form factor for portability and ease of use in various testing environments.
- Supports connection to PICkit Serial Analyzers for straightforward evaluation.
- Includes test points for easy I2C bus line data monitoring and voltage sensing.
- Low noise and high accuracy performance suitable for precision applications.
- Ideal for applications such as weighing scales, battery fuel gauges, and temperature sensing.
- Enables testing of bridge sensing for pressure, force, and strain measurement.
- Designed as an evaluation board for the MCP3424 device.
Product Description
Microchip MCP3424EV 18-bit four channel Delta-Sigma ADC Development Board Evaluation Board MCP3424EV is a precision signal conversion kit designed for engineers and developers requiring high-resolution analog-to-digital conversions. This evaluation board supports 18-bit resolution across four channels, offering exceptional accuracy and low noise for a variety of industrial, laboratory, and embedded system applications.
Designed to seamlessly interface with the popular PICkit Serial Analyzers (model DV164122), the board includes a PCB header for direct connection, facilitating quick setup and testing. The MCP3424 device featured on this board is ideal for converting analog signals to digital data with fine granularity, suitable for signal processing in complex measurement environments.
The small form factor allows easy integration and portability, making it a versatile tool for field testing or laboratory environments. Test points for the I2C bus line (SDL and SDA) enable the use of oscilloscopes to monitor data communications and observe the digital conversion results in real-time. The board also provides analog input connectors for voltage monitoring, including channel 2 dedicated sensor inputs.
This evaluation board is especially suited for applications like weighing scales, battery fuel gauges, temperature sensing via RTD, thermistors, and thermocouples, as well as bridge sensing applications involving pressure, force, and strain measurements. It also finds use in factory automation equipment development and testing scenarios.
The board complies with RoHS directives and is manufactured in China, ensuring adherence to environmental and quality standards. This makes it a reliable choice for precision electronics development.
Features 18-bit resolution for high accuracy analog-to-digital conversion. Includes four input channels for multi-signal monitoring. Supports easy connection to Microchip PICkit Serial Analyzers via integrated PCB header.
Provides test points for I2C bus signals allowing detailed bus communication analysis. Compact and portable design suitable for laboratory and field use. Applicable in weighing scales and battery fuel gauge measurement systems.
Supports temperature sensing with RTD, thermistor, and thermocouple inputs. Enables bridge sensing for pressure, force, and strain in automation tasks. Compliant with RoHS standards and produced in China. Explore more Microchip Signal Conversion Development Tools and modules on EnvMart to enhance your electronics projects and design workflows.
