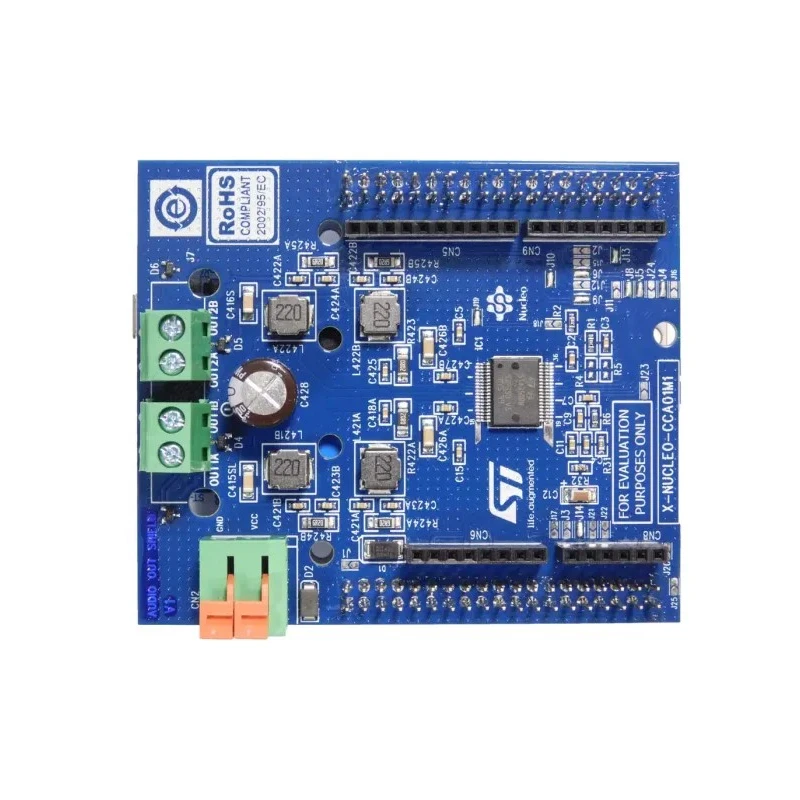

STMicroelectronics Sound Terminal Expansion Board 2-channel PWM Audio Amplifier 2 x 50W 6Ω I2S Interface X-NUCLEO-CCA01M1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-CCA01M1 |
| Interface Type | I2S |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Expansion Board |
| Featured Device | STA350BW |
| Kit Name | Sound Terminal |
Key Features
- Integrates STA350BW Sound Terminal 2.1-channel digital audio amplifier chip with FFX™ technology.
- Delivers 2-channel PWM stereo audio output with 2 x 50W power into 6Ω speakers.
- Includes on-board output filters and ESD protection for improved reliability.
- Compatible with STM32 Nucleo-64 boards and Arduino v3 Shield connector for versatile integration.
- Equipped with screw terminals for loudspeaker connections and power supply input (+5 to +25 Vdc).
- Two boards can be combined on the same STM32 Nucleo host for four-channel audio systems.
Product Description
The STMicroelectronics X-NUCLEO-CCA01M1 Sound Terminal Expansion Board is designed to provide high-quality digital audio amplification for embedded audio applications. It incorporates the STA350BW digital audio amplifier chip featuring an all-digital amplification stage with FFX™ technology, delivering two 50W stereo PWM outputs into 6Ω speakers. This enables compact, efficient sound solutions for professional and industrial environments.
The board supports audio input via a serial I2S bus and control via serial I2C, allowing easy integration with STM32 Nucleo-64 development boards. It features an Arduino v3 shield connector for compatibility with multiple board connections and ST morpho connectors for upward and downward interfacing options.
Output stage power supply is provided through a separate connector supporting voltages from +5 Vdc up to +25 Vdc. The included screw terminals facilitate secure and convenient loudspeaker connectivity. On-board output filters with ESD protection ensure robust signal integrity and device protection.
With an impressive 100dB signal-to-noise ratio and dynamic range, the X-NUCLEO-CCA01M1 is suitable for various industrial, embedded system, and audio development applications requiring quality stereo sound output with compact footprint.
Users can deploy two X-NUCLEO-CCA01M1 boards simultaneously on the same STM32 Nucleo host to construct a four-channel stereo audio system, enhancing flexibility in multi-channel audio projects.
The board integrates the STA350BW Sound Terminal with FFX™ technology for digitally processed, efficient audio amplification. Includes connectors compatible with STM32 Nucleo-64, Arduino v3 shield, and ST morpho standards.
Screw terminal connections facilitate secure loudspeaker attachment and power supply wiring. Designed for embedded audio applications in industrial, development, and educational electronics projects.
