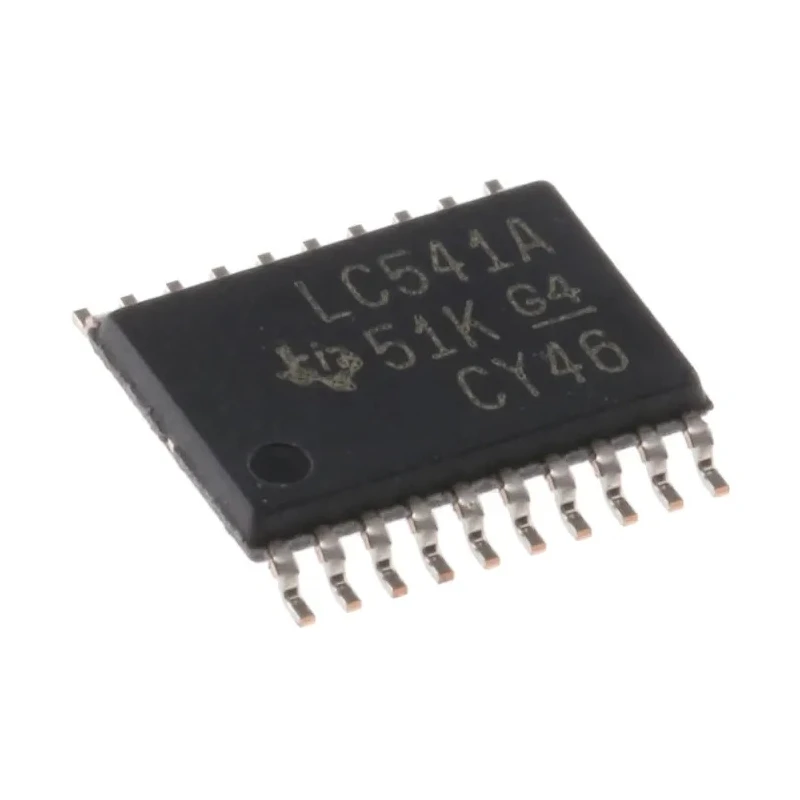

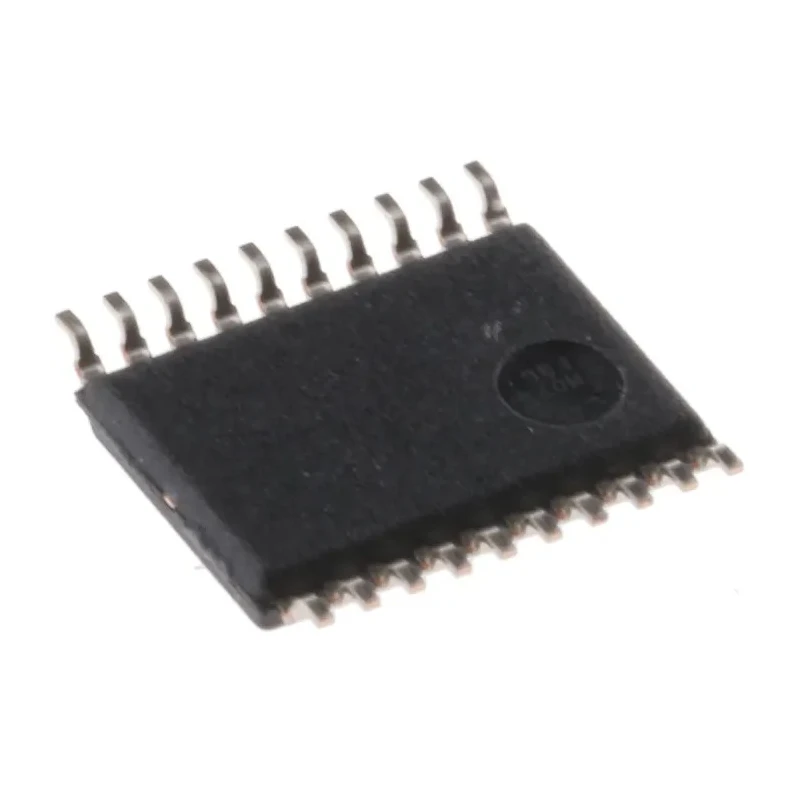

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin TSSOP SN74LVC541APW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2mm |
| Length | 7.5mm |
| Model | SN74LVC541APW |
| Width | 5.6mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SNx4LVC541A |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 3.6V |
| Pin Count | 20 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 5.1ns |
| Supply Current | 10μA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates within a voltage range of 1.65 to 3.6 volts for low power consumption.
- Features 8 buffered, non-inverting outputs with 3-state output capability.
- Packaged in a compact 20-pin TSSOP for space-efficient mounting.
- Designed for compatibility with LVTTL and TTL inputs and provides LVCMOS outputs.
- Includes ESD protection exceeding JESD 227 and latch-up protection over 250 mA per JESD 17 standards.
- Functions reliably across -40°C to 125°C operating temperature range.
- Maximum propagation delay time is 5.1 nanoseconds at the specified load capacitance.
- Automotive standard compliant with AEC-Q100 ensuring robustness for automotive applications.
Product Description
Texas Instruments SN74LVC541APW is an 8-channel buffer and line driver IC featuring non-inverting outputs with three-state capability. It is supplied in a 20-pin Thin Shrink Small Outline Package (TSSOP) suitable for surface mounting in modern electronics assembly processes.
Designed for low-voltage CMOS technology, this buffer/line driver operates efficiently within a supply voltage range of 1.65 volts minimum to 3.6 volts maximum. It provides a significant power saving advantage compared to traditional 5-volt logic families.
The device outputs are designed to be 3-state capable, allowing for bus-oriented applications where multiple devices share a common data line. The inputs are compatible with LVTTL and TTL logic levels, while the outputs deliver LVCMOS compatible signals.
Robust protection features include latch-up immunity exceeding 250 mA based on JESD 17 and ESD robustness surpassing JESD 227 techniques, making this device suitable for challenging industrial environments and interfacing with sensitive electronics.
Operating temperature ranges from -40°C to 125°C, making the SN74LVC541APW applicable in automotive and industrial settings requiring extended temperature ranges. Compact 20-pin TSSOP package supports space-constrained designs.
8 buffered, non-inverting outputs provide reliable signal driving capability. Low quiescent current consumption of approximately 10 µA improves system efficiency. Fast switching speed with maximum propagation delay around 5.1 ns ensures high-performance signal timing.
Compliant with automotive AEC-Q100 standards for automotive-grade reliability. Wide voltage range operation from 1.65 V to 3.6 V suits diverse power systems. Suitable for applications in industrial automation, embedded systems, telecommunications, and automotive electronics.
This product is ideal for buffering and driving digital signals across multiple channels in industrial, automotive, communication, and electronic equipment manufacturing contexts. The device's surface-mount TSSOP package facilitates automated assembly and compact PCB layouts.
Explore more logic and Line Interface ICs from Texas Instruments and other semiconductor categories at EnvMart to find optimal components for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 1.65 to 3.6 volts.
It features 8 buffered, non-inverting outputs.
The maximum propagation delay time is 5.1 nanoseconds at the specified load capacitance.
The inputs are compatible with LVTTL and TTL logic levels, while the outputs provide LVCMOS compatible signals.
It is packaged in a 20-pin TSSOP with dimensions of 7.5mm length, 5.6mm width, and 2mm height.
The supply current is approximately 10 µA, which contributes to improved system efficiency.
It operates reliably across a temperature range of -40°C to 125°C.
Yes, it includes ESD protection exceeding JESD 227 and latch-up protection over 250 mA per JESD 17 standards.
It is compliant with the AEC-Q100 automotive standard, ensuring robustness for automotive applications.
The maximum high-level output current is -24 mA.
This model supports surface mounting, making it suitable for modern electronics assembly processes.
It belongs to the LVC logic family, designed for low-voltage CMOS technology.
